Magnitude |
3.3 |
| Date & Time (UTC) | 2020-01-16 07:21:19.0 |
| Date & Time (Local) | 1398/10/26 10:51:19.0 |

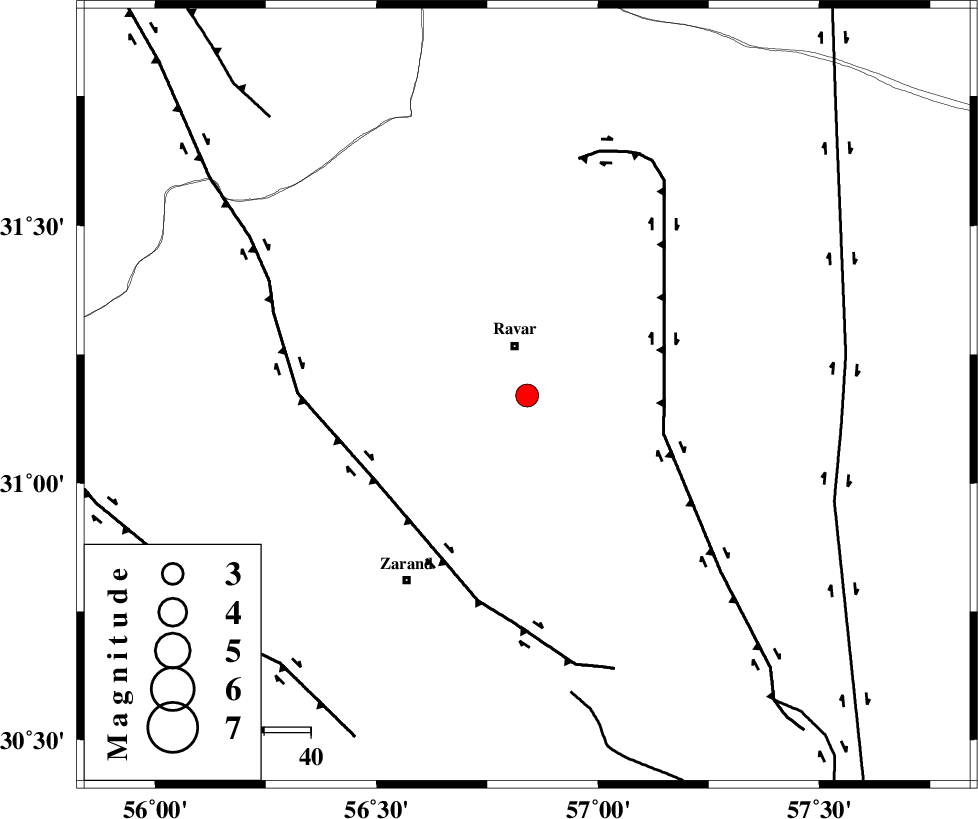

| Location | Lat:31.17 Lon: 56.84 |
| Region | Kerman Province, 11 km of Ravar |
Nearest Cities |
|
| 11 km of Ravar, Kerman Province | |
| 18 km South of Dehali, Kerman Province | |
| 27 km North East of Ahmadi, Kerman Province | |
| 29 km North East of Dasht-e khak, Kerman Province | |
| 37 km North of Hatkan, Kerman Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 31 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 37 km | |
| CHATRUD_F (Length: 37 km) , Distance to epicenter: 65 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | 3 km |
| Error in Longitude | 0 km |
| Error in Depth | 289 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 151090 | IIEES SC | BSRN | Z | 82 | 1 | 2020-01-16 07:22:31 | 2020-01-18 08:39:00 | n |
| 151091 | IIEES SC | YZKH | Z | 160 | 1 | 2020-01-16 07:22:35 | 2020-01-18 08:39:00 | n |
| 151092 | IIEES SC | TABS | Z | 120 | 1 | 2020-01-16 07:22:46 | 2020-01-18 08:39:00 | n |
| 151093 | IIEES SC | SHRT | Z | 14 | 1 | 2020-01-16 07:23:29 | 2020-01-18 08:39:00 | n |
| 151094 | IIEES SC | SHRO | Z | 2.4 | 1 | 2020-01-16 07:24:07 | 2020-01-18 08:39:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | BSRN | Z | IP | I | 2020-01-16 07:21:56 | -0.1 | y | 233 | 68 | |
| IIEES SC | YZKH | Z | IP | I | 2020-01-16 07:21:58 | 0 | y | 255 | 302 | |
| IIEES SC | TABS | Z | IP | I | 2020-01-16 07:22:01 | 0 | y | 278 | 6 | |
| IIEES SC | SHRT | Z | IP | I | 2020-01-16 07:22:20 | 0.3 | y | 422 | 50 | |
| IIEES SC | SHRO | Z | IP | I | 2020-01-16 07:22:34 | -0.1 | y | 544 | 352 |
