Magnitude |
3.3 |
| Date & Time (UTC) | 2020-01-20 17:45:47.6 |
| Date & Time (Local) | 1398/10/30 21:15:47.6 |
| Location | Lat:28.92 Lon: 51.24 |
| Region | Bushehr Province, 5 km of Ahram |
Nearest Cities |
|
| 4 km of Bazuei, Bushehr Province | |
| 5 km North of Ahram, Bushehr Province | |
| 21 km West of Kalameh, Bushehr Province | |
| 21 km East of Choghadak, Bushehr Province | |
| 24 km North East of Delvar, Bushehr Province | |
| Depth | 10 km |
| Agency | |

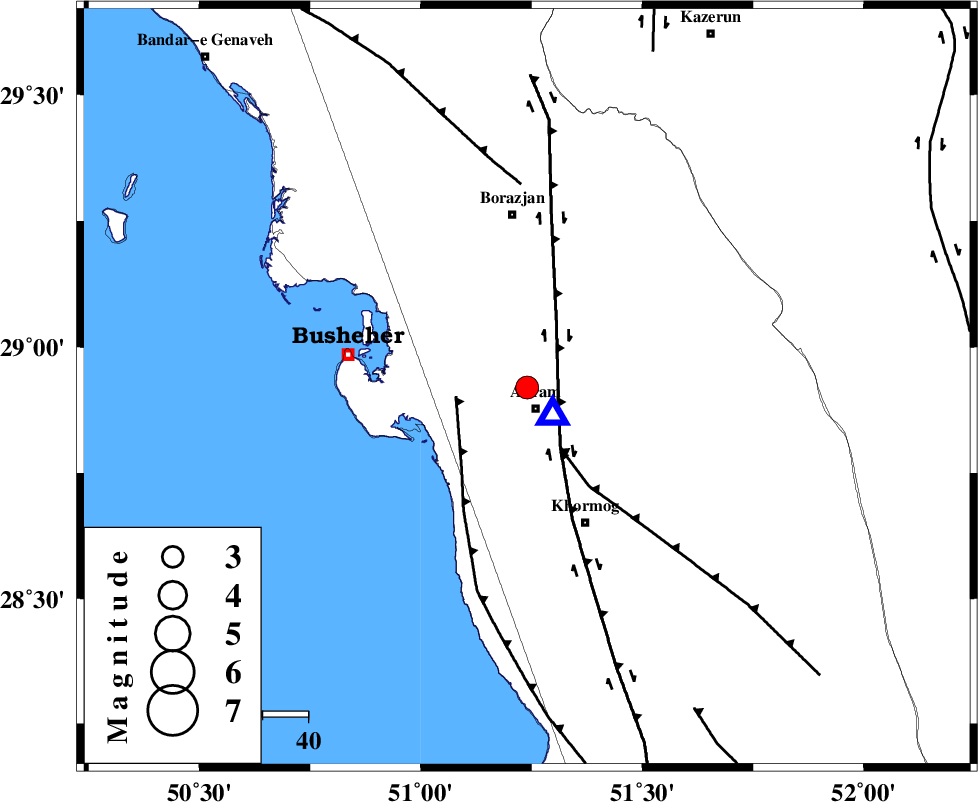

Faults within 150 km: |
|
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 7 km | |
| MFF5 (Length: 74 km) , Distance to epicenter: 15 km | |
| ZFF2 (Length: 84 km) , Distance to epicenter: 16 km | |
| Number of Phases | 12 |
| RMS | 1.4 |
| Number of Stations | 12 |
| Error in Latitude | 5 km |
| Error in Longitude | 0 km |
| Error in Depth | 3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 151243 | IIEES SC | AHRM | Z | 4800 | 1 | 2020-01-20 17:45:53 | 2020-01-22 12:47:00 | n |
| 151244 | IIEES SC | GHIR | Z | 50 | 1 | 2020-01-20 17:47:12 | 2020-01-22 12:47:00 | n |
| 151245 | IIEES SC | KLNJ | Z | 130 | 1 | 2020-01-20 17:47:05 | 2020-01-22 12:47:00 | n |
| 151246 | IIEES SC | LMD1 | Z | 270 | 1 | 2020-01-20 17:47:24 | 2020-01-22 12:47:00 | n |
| 151247 | IIEES SC | AMIS | Z | 56 | 1 | 2020-01-20 17:47:47 | 2020-01-22 12:47:00 | n |
| 151248 | IIEES SC | GTMR | Z | 35 | 1 | 2020-01-20 17:48:19 | 2020-01-22 12:47:00 | n |
| 151249 | IIEES SC | NASN | Z | 10 | 1 | 2020-01-20 17:48:04 | 2020-01-22 12:47:00 | n |
| 151250 | IIEES SC | YZKH | Z | 8.2 | 1 | 2020-01-20 17:48:36 | 2020-01-22 12:47:00 | n |
| 151251 | IIEES SC | KHMZ | Z | 10 | 1 | 2020-01-20 17:48:10 | 2020-01-22 12:47:00 | n |
| 151252 | IIEES SC | ASAO | Z | 11 | 1 | 2020-01-20 17:48:31 | 2020-01-22 12:47:00 | n |
| 151253 | IIEES SC | ILBA | Z | 4 | 1 | 2020-01-20 17:49:38 | 2020-01-22 12:47:00 | n |
| 151254 | IIEES SC | DAMV | Z | 3.8 | 1 | 2020-01-20 17:49:28 | 2020-01-22 12:47:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | AHRM | Z | IP | I | 2020-01-20 17:45:48 | -1.7 | y | 11 | 137 | |
| IIEES SC | GHIR | Z | IP | I | 2020-01-20 17:46:17 | -0.3 | y | 189 | 112 | |
| IIEES SC | KLNJ | Z | IP | I | 2020-01-20 17:46:24 | -0.4 | y | 233 | 8 | |
| IIEES SC | LMD1 | Z | IP | I | 2020-01-20 17:46:30 | 2.3 | y | 255 | 133 | |
| IIEES SC | AMIS | Z | IP | I | 2020-01-20 17:46:41 | 1.1 | y | 355 | 328 | |
| IIEES SC | GTMR | Z | IP | I | 2020-01-20 17:46:51 | 0.1 | y | 444 | 333 | |
| IIEES SC | NASN | Z | IP | I | 2020-01-20 17:46:51 | -1.2 | y | 455 | 19 | |
| IIEES SC | YZKH | Z | IP | I | 2020-01-20 17:46:58 | 0.2 | y | 500 | 40 | |
| IIEES SC | KHMZ | Z | IP | I | 2020-01-20 17:47:04 | 0.6 | y | 544 | 347 | |
| IIEES SC | ASAO | Z | IP | I | 2020-01-20 17:47:15 | 0.6 | y | 633 | 350 | |
| IIEES SC | ILBA | Z | IP | I | 2020-01-20 17:47:22 | -1.3 | y | 711 | 317 | |
| IIEES SC | DAMV | Z | IP | I | 2020-01-20 17:47:27 | -1.4 | y | 745 | 5 |
