Magnitude |
3.5 |
| Date & Time (UTC) | 2020-01-29 21:07:38.6 |
| Date & Time (Local) | 1398/11/10 00:37:38.6 |

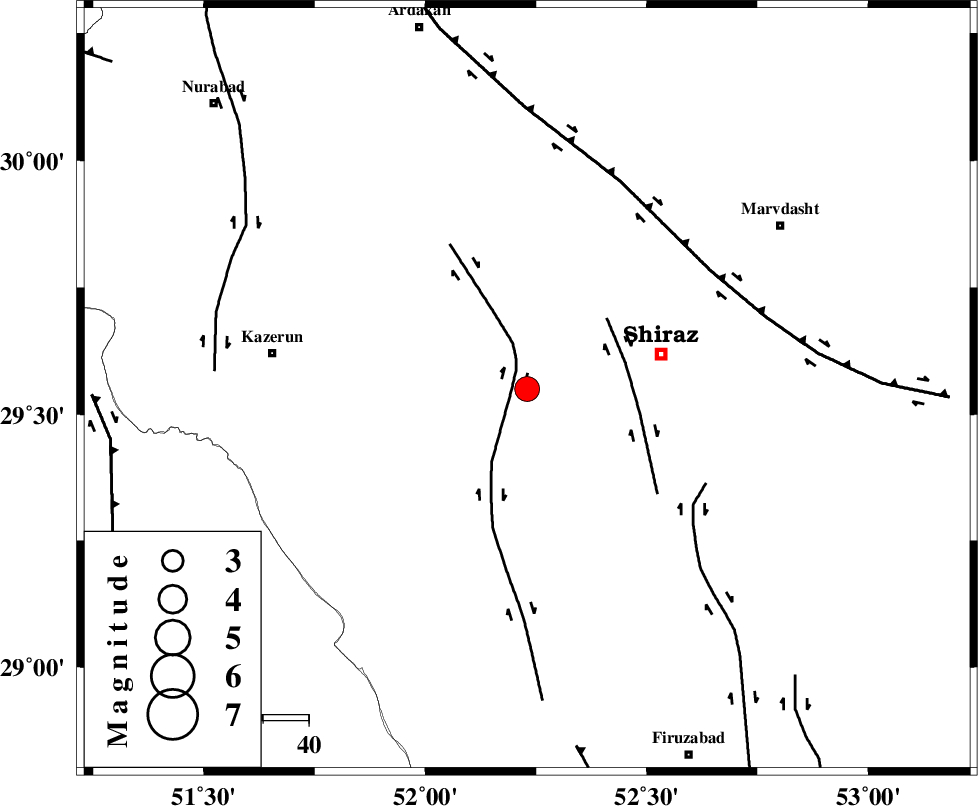

| Location | Lat:29.55 Lon: 52.23 |
| Region | Fars Province, 30 km -West of Shiraz |
Nearest Cities |
|
| 9 km North of Richi, Fars Province | |
| 13 km South of Khanehzanian, Fars Province | |
| 30 km West of Shiraz, Fars Province | |
| 34 km North West of Soltanabad, Fars Province | |
| 35 km East of Kalani, Fars Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| KAREBASS_F (Length: 98 km) , Distance to epicenter: 4 km | |
| SABZ_PUSHAN_F_Z3 (Length: 37 km) , Distance to epicenter: 22 km | |
| SABZ_PUSHAN_F_Z1 (Length: 69 km) , Distance to epicenter: 44 km | |
| Number of Phases | 8 |
| RMS | 0.6 |
| Number of Stations | 8 |
| Error in Latitude | 2 km |
| Error in Longitude | 0 km |
| Error in Depth | 14 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 151532 | IIEES SC | AHRM | Z | 150 | 1 | 2020-01-29 21:08:19 | 2020-02-01 10:29:00 | n |
| 151533 | IIEES SC | NASN | Z | 20 | 1 | 2020-01-29 21:09:33 | 2020-02-01 10:29:00 | n |
| 151534 | IIEES SC | AMIS | Z | 57 | 1 | 2020-01-29 21:09:54 | 2020-02-01 10:29:00 | n |
| 151535 | IIEES SC | GTMR | Z | 43 | 1 | 2020-01-29 21:10:09 | 2020-02-01 10:29:00 | n |
| 151536 | IIEES SC | BNDS | Z | 16 | 1 | 2020-01-29 21:10:20 | 2020-02-01 10:29:00 | n |
| 151537 | IIEES SC | GHVR | Z | 17 | 1 | 2020-01-29 21:10:22 | 2020-02-01 10:29:00 | n |
| 151538 | IIEES SC | ASAO | Z | 12 | 1 | 2020-01-29 21:10:51 | 2020-02-01 10:29:00 | n |
| 151539 | IIEES SC | TABS | Z | 9.1 | 1 | 2020-01-29 21:11:23 | 2020-02-01 10:29:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | AHRM | Z | IP | I | 2020-01-29 21:07:58 | 0.2 | y | 122 | 230 | |
| IIEES SC | NASN | Z | IP | I | 2020-01-29 21:08:33 | 0.7 | y | 366 | 9 | |
| IIEES SC | AMIS | Z | IP | I | 2020-01-29 21:08:31 | -0.8 | y | 366 | 310 | |
| IIEES SC | GTMR | Z | IP | I | 2020-01-29 21:08:40 | -1.1 | y | 444 | 317 | |
| IIEES SC | BNDS | Z | IP | I | 2020-01-29 21:08:42 | -0.4 | y | 455 | 122 | |
| IIEES SC | GHVR | Z | IP | I | 2020-01-29 21:08:55 | -0.4 | y | 556 | 350 | |
| IIEES SC | ASAO | Z | IP | I | 2020-01-29 21:08:59 | -0.6 | y | 589 | 339 | |
| IIEES SC | TABS | Z | IP | I | 2020-01-29 21:09:08 | 1 | y | 644 | 46 |
