Magnitude |
3.6 |
| Date & Time (UTC) | 2020-02-18 04:57:21.1 |
| Date & Time (Local) | 1398/11/29 08:27:21.1 |

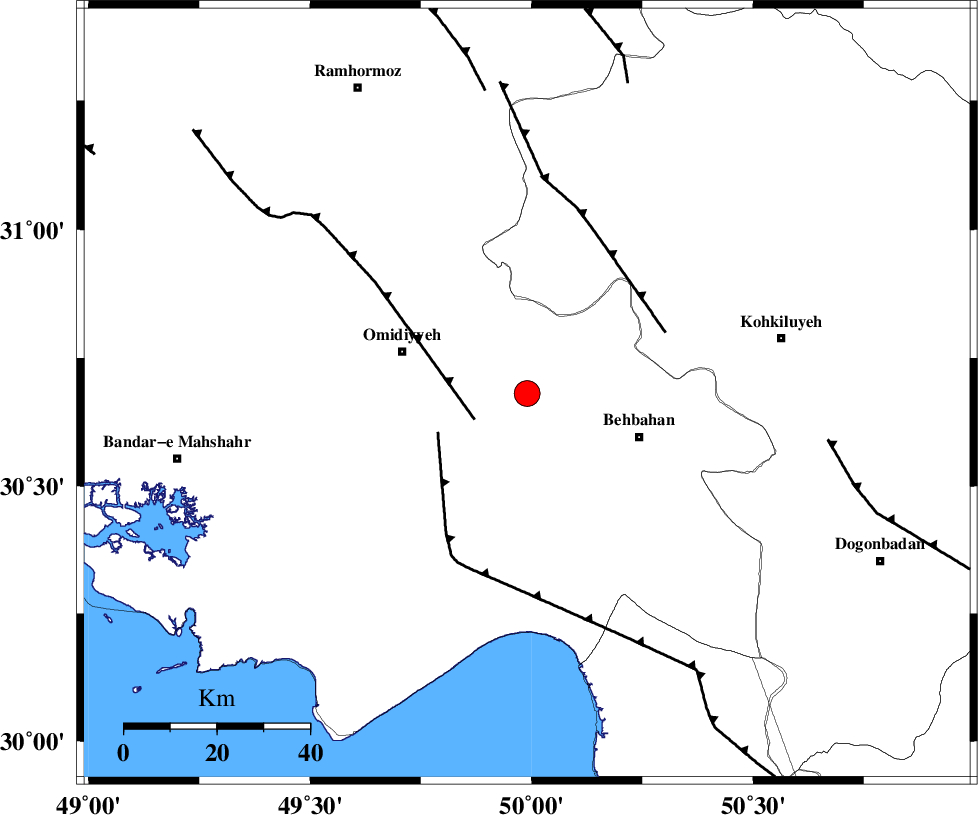

| Location | Lat:30.68 Lon: 49.99 |
| Region | Khoozestan Province, 26 km -West of Behbahan |
Nearest Cities |
|
| 15 km East of Aghajari, Khoozestan Province | |
| 17 km South of Jolaki, Khoozestan Province | |
| 18 km West of Dodange-ye bozorg, Khoozestan Province | |
| 22 km North East of Asiyab, Khoozestan Province | |
| 24 km East of Chah-e salem, Khoozestan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 13 km | |
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 21 km | |
| MFF4 (Length: 62 km) , Distance to epicenter: 33 km | |
| Number of Phases | 16 |
| RMS | 0.4 |
| Number of Stations | 13 |
| Error in Latitude | 2 km |
| Error in Longitude | 0 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 151937 | IIEES SC | AMIS | Z | 1800 | 1 | 2020-02-18 04:58:04 | 2020-02-18 10:45:00 | n |
| 151938 | IIEES SC | KLNJ | Z | 1600 | 1 | 2020-02-18 04:58:13 | 2020-02-18 10:45:00 | n |
| 151939 | IIEES SC | GTMR | Z | 740 | 1 | 2020-02-18 04:58:33 | 2020-02-18 10:45:00 | n |
| 151940 | IIEES SC | AHRM | Z | 59 | 1 | 2020-02-18 04:58:40 | 2020-02-18 10:45:00 | n |
| 151941 | IIEES SC | KHMZ | Z | 82 | 1 | 2020-02-18 04:59:03 | 2020-02-18 10:45:00 | n |
| 151942 | IIEES SC | NASN | Z | 43 | 1 | 2020-02-18 04:59:16 | 2020-02-18 10:45:00 | n |
| 151943 | IIEES SC | ASAO | Z | 47 | 1 | 2020-02-18 04:59:41 | 2020-02-18 10:45:00 | n |
| 151944 | IIEES SC | GHVR | Z | 470 | 1 | 2020-02-18 04:59:32 | 2020-02-18 10:45:00 | n |
| 151945 | IIEES SC | YZKH | Z | 25 | 1 | 2020-02-18 04:59:38 | 2020-02-18 10:45:00 | n |
| 151946 | IIEES SC | QABG | Z | 4 | 1 | 2020-02-18 05:00:02 | 2020-02-18 10:45:00 | n |
| 151947 | IIEES SC | QABG | Z | 5.2 | 0.76 | 2020-02-18 04:58:55 | 2020-02-18 10:45:00 | n |
| 151948 | IIEES SC | DAMV | Z | 3.8 | 1 | 2020-02-18 05:00:21 | 2020-02-18 10:45:00 | n |
| 151949 | IIEES SC | DAMV | Z | 11 | 0.48 | 2020-02-18 04:59:04 | 2020-02-18 10:45:00 | n |
| 151950 | IIEES SC | CHTH | Z | 8.6 | 1 | 2020-02-18 05:00:30 | 2020-02-18 10:45:00 | n |
| 151951 | IIEES SC | CHTH | Z | 9.7 | 0.65 | 2020-02-18 04:59:09 | 2020-02-18 10:45:00 | n |
| 151952 | IIEES SC | SHRO | Z | 2.5 | 1 | 2020-02-18 05:00:21 | 2020-02-18 10:45:00 | n |
| 151953 | IIEES SC | SHRO | Z | 9.7 | 0.76 | 2020-02-18 04:59:16 | 2020-02-18 10:45:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | AMIS | Z | IP | I | 2020-02-18 04:57:43 | 0.7 | y | 133 | 328 | |
| IIEES SC | KLNJ | Z | IP | I | 2020-02-18 04:57:47 | 0.2 | y | 155 | 77 | |
| IIEES SC | GTMR | Z | IP | I | 2020-02-18 04:57:55 | -0.7 | y | 211 | 337 | |
| IIEES SC | AHRM | Z | IP | I | 2020-02-18 04:57:58 | 0 | y | 233 | 148 | |
| IIEES SC | KHMZ | Z | IP | I | 2020-02-18 04:58:11 | 0.2 | y | 344 | 360 | |
| IIEES SC | NASN | Z | IP | I | 2020-02-18 04:58:13 | 0.3 | y | 355 | 49 | |
| IIEES SC | ASAO | Z | IP | I | 2020-02-18 04:58:23 | 0.6 | y | 433 | 0 | |
| IIEES SC | GHVR | Z | IP | I | 2020-02-18 04:58:24 | 0.7 | y | 433 | 16 | |
| IIEES SC | YZKH | Z | IP | I | 2020-02-18 04:58:28 | -0.3 | y | 478 | 67 | |
| IIEES SC | QABG | Z | IP | I | 2020-02-18 04:58:38 | -0.4 | y | 556 | 356 | |
| IIEES SC | DAMV | Z | IP | I | 2020-02-18 04:58:40 | -0.9 | y | 578 | 19 | |
| IIEES SC | CHTH | Z | IP | I | 2020-02-18 04:58:41 | -1 | y | 589 | 10 | |
| IIEES SC | KRBR | Z | IP | I | 2020-02-18 04:58:56 | 5.6 | n | 4 | 656 | 97 |
| IIEES SC | BNDS | Z | IP | I | 2020-02-18 04:59:02 | 5.2 | n | 4 | 700 | 121 |
| IIEES SC | SHRO | Z | IP | I | 2020-02-18 04:59:10 | -0.1 | y | 811 | 43 | |
| IIEES SC | RAYN | Z | IP | I | 2020-02-18 04:59:17 | -4.9 | n | 4 | 911 | 209 |
