Magnitude |
3.6 |
| Date & Time (UTC) | 2020-04-10 14:29:17.7 |
| Date & Time (Local) | 1399/1/22 18:59:17.7 |
| Location | Lat:32.66 Lon: 49.77 |
| Region | Chaharmahal Bakhtiari Province, 39 km North-West of Chelgard |
Nearest Cities |
|
| 9 km of Durak, Chaharmahal Bakhtiari Province | |
| 22 km South of Masir, Esfahan Province | |
| 37 km South West of Sibak, Esfahan Province | |
| 39 km South East of Parchal, Lorestan Province | |
| 39 km North West of Chelgard, Chaharmahal Bakhtiari Province | |
| Depth | 10 km |
| Agency | |

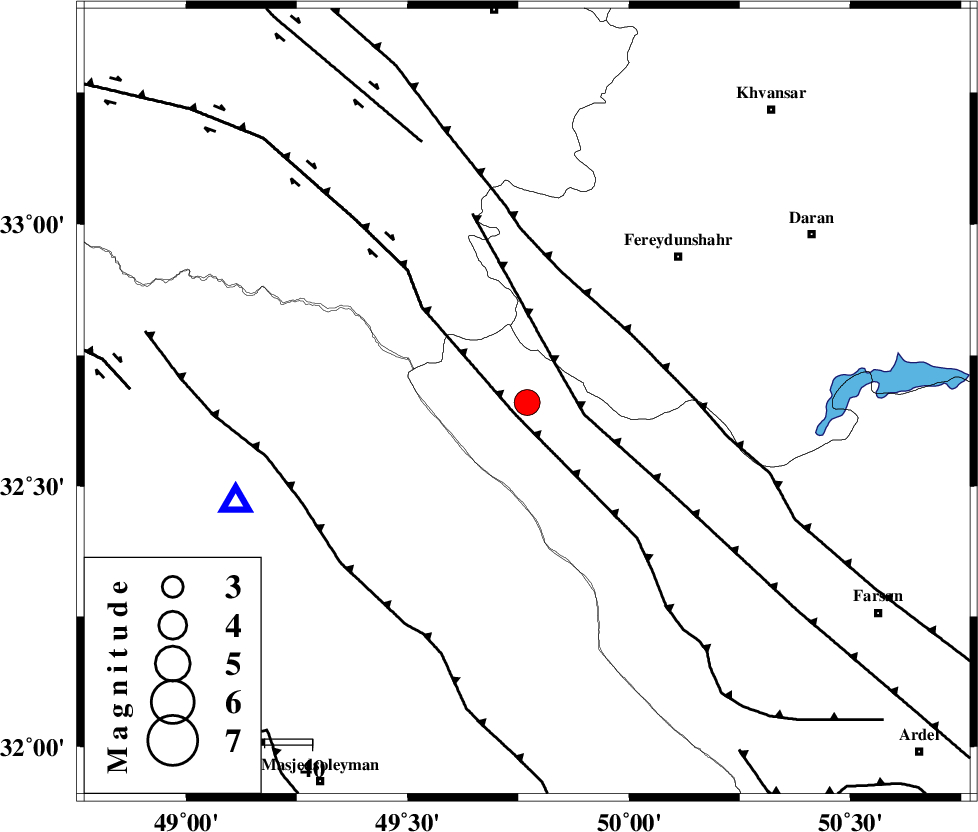

Faults within 150 km: |
|
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 4 km | |
| ARDAL_F (Length: 170 km) , Distance to epicenter: 9 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 26 km | |
| Number of Phases | 17 |
| RMS | 1.1 |
| Number of Stations | 17 |
| Error in Latitude | 2 km |
| Error in Longitude | 0 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 152910 | IIEES SC | GTMR | Z | 1600 | 1 | 2020-04-10 14:29:41 | 2020-04-12 12:41:00 | n |
| 152911 | IIEES SC | AMIS | Z | 1800 | 1 | 2020-04-10 14:30:00 | 2020-04-12 12:41:00 | n |
| 152912 | IIEES SC | KHMZ | Z | 300 | 1 | 2020-04-10 14:30:01 | 2020-04-12 12:41:00 | n |
| 152913 | IIEES SC | GHVR | Z | 420 | 1 | 2020-04-10 14:30:49 | 2020-04-12 12:41:00 | n |
| 152914 | IIEES SC | KLNJ | Z | 300 | 1 | 2020-04-10 14:30:42 | 2020-04-12 12:41:00 | n |
| 152915 | IIEES SC | NASN | Z | 79 | 1 | 2020-04-10 14:30:41 | 2020-04-12 12:41:00 | n |
| 152916 | IIEES SC | QABG | Z | 16 | 1 | 2020-04-10 14:31:04 | 2020-04-12 12:41:00 | n |
| 152917 | IIEES SC | SNGE | Z | 83 | 1 | 2020-04-10 14:31:15 | 2020-04-12 12:41:00 | n |
| 152918 | IIEES SC | THKV | Z | 44 | 1 | 2020-04-10 14:31:24 | 2020-04-12 12:41:00 | n |
| 152919 | IIEES SC | CHTH | Z | 20 | 1 | 2020-04-10 14:31:01 | 2020-04-12 12:41:00 | n |
| 152920 | IIEES SC | DAMV | Z | 3.7 | 1 | 2020-04-10 14:32:35 | 2020-04-12 12:41:00 | n |
| 152921 | IIEES SC | ZNJK | Z | 4.2 | 1 | 2020-04-10 14:31:27 | 2020-04-12 12:41:00 | n |
| 152922 | IIEES SC | SRSL | Z | 31 | 1 | 2020-04-10 14:31:41 | 2020-04-12 12:41:00 | n |
| 152923 | IIEES SC | SHRO | Z | 2.3 | 1 | 2020-04-10 14:32:13 | 2020-04-12 12:41:00 | n |
| 152924 | IIEES SC | TABS | Z | 2.4 | 1 | 2020-04-10 14:31:55 | 2020-04-12 12:41:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | GTMR | N | IS | I | 2020-04-10 14:29:37 | -0.6 | y | 66 | 251 | |
| IIEES SC | GTMR | Z | IP | I | 2020-04-10 14:29:27 | -1.7 | y | 66 | 251 | |
| IIEES SC | AMIS | N | IS | I | 2020-04-10 14:29:56 | 3.1 | y | 122 | 203 | |
| IIEES SC | AMIS | Z | IP | I | 2020-04-10 14:29:37 | -0.1 | y | 122 | 203 | |
| IIEES SC | KHMZ | Z | IP | I | 2020-04-10 14:29:36 | -1.8 | y | 122 | 9 | |
| IIEES SC | GHVR | Z | IP | I | 2020-04-10 14:29:56 | 0.2 | y | 244 | 34 | |
| IIEES SC | KLNJ | Z | IP | I | 2020-04-10 14:29:56 | -0.8 | y | 255 | 137 | |
| IIEES SC | NASN | Z | IP | I | 2020-04-10 14:30:01 | 0.2 | y | 289 | 87 | |
| IIEES SC | QABG | Z | IP | I | 2020-04-10 14:30:08 | 0.5 | y | 333 | 357 | |
| IIEES SC | SNGE | Z | IP | I | 2020-04-10 14:30:11 | 1.9 | y | 355 | 320 | |
| IIEES SC | THKV | Z | IP | I | 2020-04-10 14:30:12 | -0.3 | y | 378 | 16 | |
| IIEES SC | CHTH | Z | IP | I | 2020-04-10 14:30:12 | -1 | y | 378 | 19 | |
| IIEES SC | DAMV | Z | IP | I | 2020-04-10 14:30:14 | 0.1 | y | 389 | 32 | |
| IIEES SC | ZNJK | Z | IP | I | 2020-04-10 14:30:22 | 0.1 | y | 455 | 347 | |
| IIEES SC | SRSL | Z | IP | I | 2020-04-10 14:30:35 | 0.2 | y | 556 | 315 | |
| IIEES SC | SHRO | Z | IP | I | 2020-04-10 14:30:52 | 1.3 | y | 689 | 57 | |
| IIEES SC | TABS | Z | IP | I | 2020-04-10 14:30:51 | -0.2 | y | 689 | 81 |
