Magnitude |
2.9 |
| Date & Time (UTC) | 2020-04-10 11:59:22.2 |
| Date & Time (Local) | 1399/1/22 16:29:22.2 |

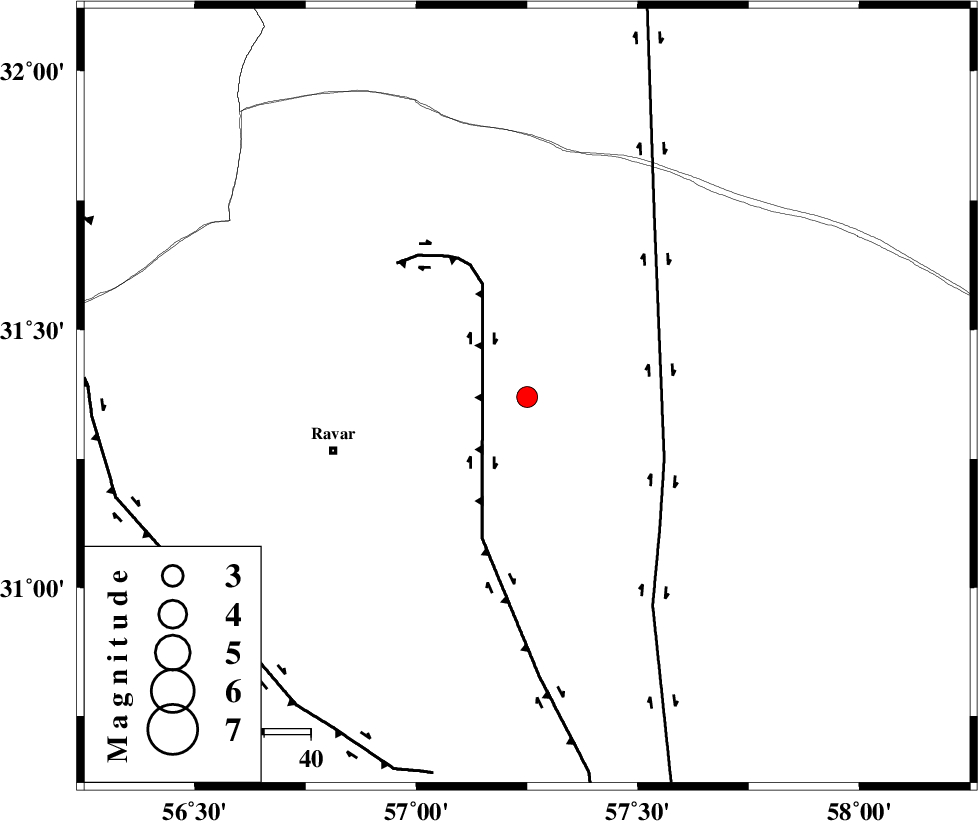

| Location | Lat:31.37 Lon: 57.25 |
| Region | Kerman Province, 43 km North-East of Ravar |
Nearest Cities |
|
| 43 km North East of Ravar, Kerman Province | |
| 43 km North East of Dehali, Kerman Province | |
| 71 km North East of Ahmadi, Kerman Province | |
| 73 km North East of Hejdak, Kerman Province | |
| 73 km North East of Hatkan, Kerman Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 26 km | |
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 32 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 82 km | |
| Number of Phases | 7 |
| RMS | 1.4 |
| Number of Stations | 6 |
| Error in Latitude | 9 km |
| Error in Longitude | 0 km |
| Error in Depth | 41 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 152966 | IIEES SC | KRBR | Z | 160 | 1 | 2020-04-10 12:00:11 | 2020-04-15 10:15:00 | n |
| 152967 | IIEES SC | BSRN | Z | 54 | 1 | 2020-04-10 12:00:22 | 2020-04-15 10:15:00 | n |
| 152968 | IIEES SC | TABS | Z | 2.2 | 1 | 2020-04-10 12:01:30 | 2020-04-15 10:15:00 | n |
| 152969 | IIEES SC | SHRT | Z | 6.2 | 1 | 2020-04-10 12:01:25 | 2020-04-15 10:15:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | KRBR | N | IS | I | 2020-04-10 12:00:08 | -1.1 | y | 155 | 197 | |
| IIEES SC | KRBR | Z | IP | I | 2020-04-10 11:59:51 | 2.7 | y | 155 | 197 | |
| IIEES SC | BSRN | N | IS | I | 2020-04-10 12:00:17 | 0.9 | y | 189 | 70 | |
| IIEES SC | BSRN | Z | IP | I | 2020-04-10 11:59:51 | -1.4 | y | 189 | 70 | |
| IIEES SC | TABS | Z | IP | I | 2020-04-10 12:00:01 | 0 | y | 255 | 357 | |
| IIEES SC | SHRT | Z | IP | I | 2020-04-10 12:00:16 | -1.5 | y | 378 | 49 | |
| IIEES SC | NASN | Z | IP | I | 2020-04-10 12:00:27 | 0.8 | n | 4 | 444 | 291 |
