Magnitude |
3.4 |
| Date & Time (UTC) | 2020-05-09 03:08:08.1 |
| Date & Time (Local) | 1399/2/20 07:38:08.1 |

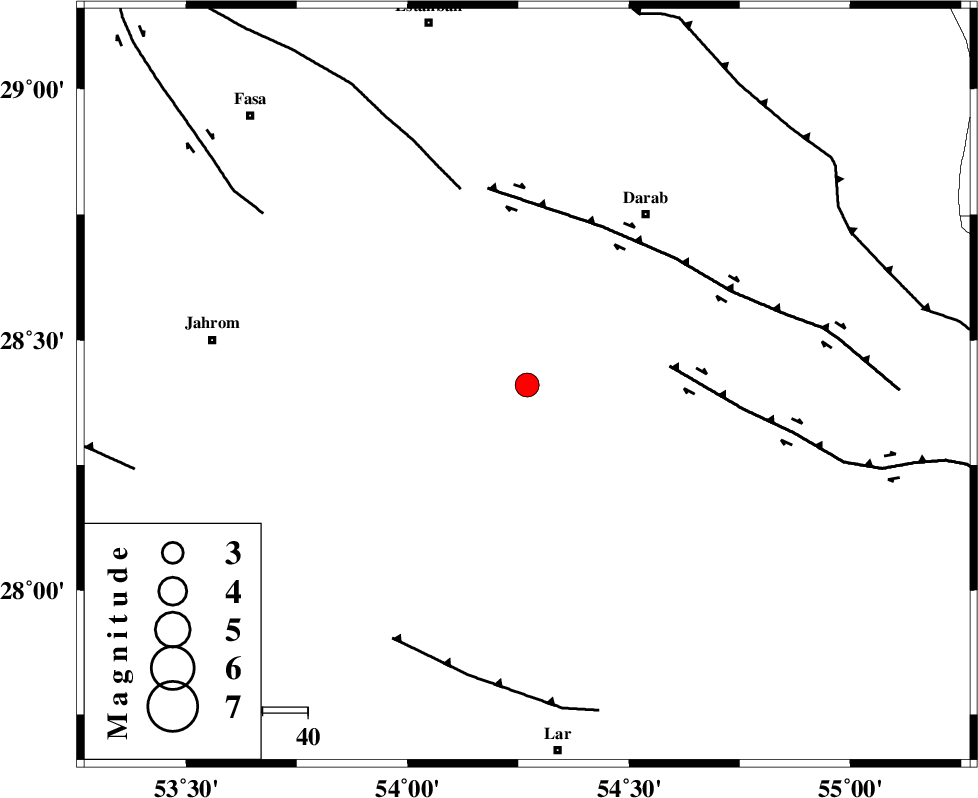

| Location | Lat:28.41 Lon: 54.27 |
| Region | Fars Province, 46 km South-West of Darab |
Nearest Cities |
|
| 7 km North of Dabiran, Fars Province | |
| 13 km North of Shahr-e pir, Fars Province | |
| 16 km North West of Hajiabad, Fars Province | |
| 31 km South West of Nasrovan, Fars Province | |
| 38 km South of Madoan, Fars Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| HZF2 (Length: 437 km) , Distance to epicenter: 32 km | |
| HZF1 (Length: 102 km) , Distance to epicenter: 39 km | |
| BAKHTEGAN_F (Length: 94 km) , Distance to epicenter: 46 km | |
| Number of Phases | 9 |
| RMS | 0.9 |
| Number of Stations | 8 |
| Error in Latitude | 5 km |
| Error in Longitude | 0 km |
| Error in Depth | 21 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 153705 | IIEES SC | GHIR | Z | 46 | 1 | 2020-05-09 03:09:01 | 2020-05-09 12:48:00 | n |
| 153706 | IIEES SC | LMD1 | Z | 770 | 1 | 2020-05-09 03:08:58 | 2020-05-09 12:48:00 | n |
| 153707 | IIEES SC | KRBR | Z | 130 | 1 | 2020-05-09 03:09:40 | 2020-05-09 12:48:00 | n |
| 153708 | IIEES SC | KLNJ | Z | 44 | 1 | 2020-05-09 03:09:58 | 2020-05-09 12:48:00 | n |
| 153709 | IIEES SC | YZKH | Z | 12 | 1 | 2020-05-09 03:10:29 | 2020-05-09 12:48:00 | n |
| 153710 | IIEES SC | NASN | Z | 5.7 | 1 | 2020-05-09 03:10:33 | 2020-05-09 12:48:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | GHIR | N | IS | I | 2020-05-09 03:08:47 | 2.3 | y | 122 | 264 | |
| IIEES SC | GHIR | Z | IP | I | 2020-05-09 03:08:29 | 0.4 | y | 122 | 264 | |
| IIEES SC | LMD1 | N | IS | I | 2020-05-09 03:08:54 | -0.1 | y | 166 | 222 | |
| IIEES SC | LMD1 | Z | IP | I | 2020-05-09 03:08:34 | -0.6 | y | 166 | 222 | |
| IIEES SC | BNDS | Z | IP | I | 2020-05-09 03:09:04 | 21.2 | n | 4 | 222 | 121 |
| IIEES SC | KRBR | Z | IP | I | 2020-05-09 03:08:54 | 0.4 | y | 300 | 54 | |
| IIEES SC | KLNJ | Z | IP | I | 2020-05-09 03:09:02 | -1.8 | y | 389 | 318 | |
| IIEES SC | YZKH | Z | IP | I | 2020-05-09 03:09:10 | -0.9 | y | 444 | 4 | |
| IIEES SC | NASN | Z | IP | I | 2020-05-09 03:09:19 | 0.1 | y | 511 | 344 |
