Magnitude |
3.9 |
| Date & Time (UTC) | 2020-05-18 18:15:00.0 |
| Date & Time (Local) | 1399/2/29 22:45:00.0 |

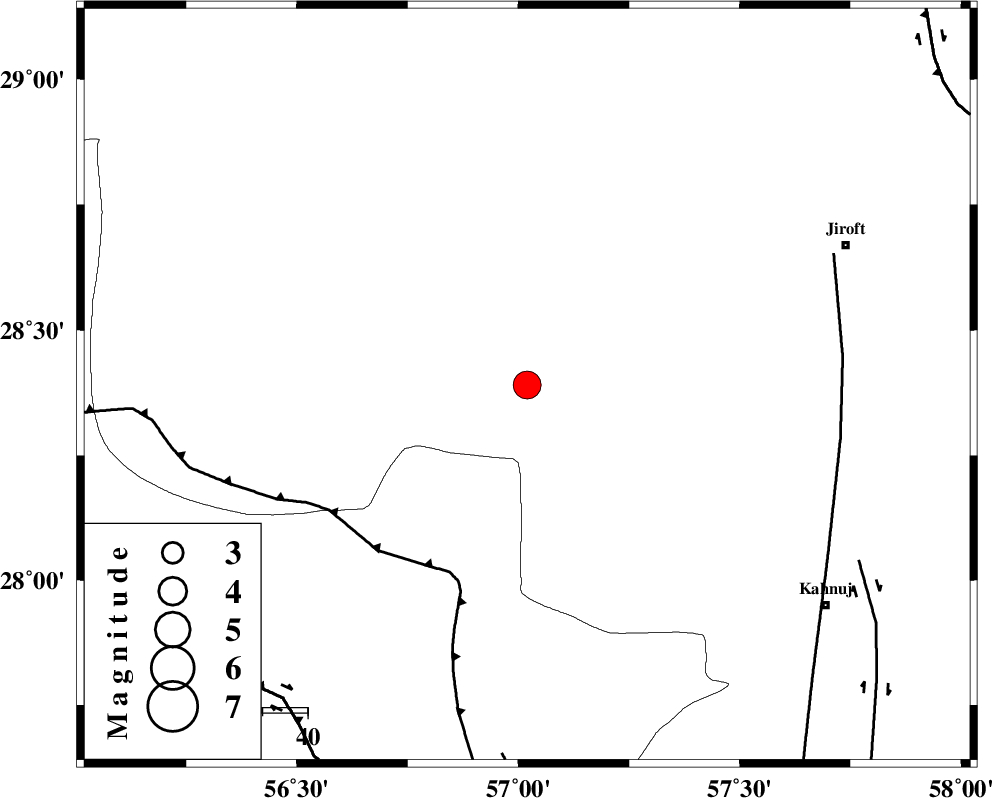

| Location | Lat:28.39 Lon: 57.02 |
| Region | Kerman Province, 77 km South-West of Jiroft |
Nearest Cities |
|
| 15 km North East of Sarkhan, Kerman Province | |
| 36 km North West of Hurpasefid, Kerman Province | |
| 37 km South of Dolatabad, Kerman Province | |
| 44 km North West of Faryab, Kerman Province | |
| 51 km North West of Mehrueye-e paeen, Kerman Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 45 km | |
| SABZEVARAN_F (Length: 190 km) , Distance to epicenter: 70 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 82 km | |
| Number of Phases | 22 |
| RMS | 0.2 |
| Number of Stations | 14 |
| Error in Latitude | 1 km |
| Error in Longitude | 0 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 153917 | IIEES SC | BNDS | Z | 2500 | 1 | 2020-05-18 18:15:46 | 2020-05-19 10:48:00 | n |
| 153918 | IIEES SC | ZHSF | Z | 26 | 1 | 2020-05-18 18:17:02 | 2020-05-19 10:48:00 | n |
| 153919 | IIEES SC | LMD1 | Z | 220 | 1 | 2020-05-18 18:17:16 | 2020-05-19 10:48:00 | n |
| 153920 | IIEES SC | BSRN | Z | 74 | 1 | 2020-05-18 18:17:18 | 2020-05-19 10:48:00 | n |
| 153921 | IIEES SC | YZKH | Z | 48 | 1 | 2020-05-18 18:17:36 | 2020-05-19 10:48:00 | n |
| 153922 | IIEES SC | SRVN | Z | 15 | 1 | 2020-05-18 18:17:57 | 2020-05-19 10:48:00 | n |
| 153923 | IIEES SC | TABS | Z | 45 | 1 | 2020-05-18 18:18:06 | 2020-05-19 10:48:00 | n |
| 153924 | IIEES SC | TABS | Z | 48 | 0.55 | 2020-05-18 18:16:23 | 2020-05-19 10:48:00 | n |
| 153925 | IIEES SC | NASN | Z | 15 | 1 | 2020-05-18 18:18:17 | 2020-05-19 10:48:00 | n |
| 153926 | IIEES SC | NASN | Z | 9.4 | 0.79 | 2020-05-18 18:16:47 | 2020-05-19 10:48:00 | n |
| 153927 | IIEES SC | SHRT | Z | 24 | 1 | 2020-05-18 18:18:31 | 2020-05-19 10:48:00 | n |
| 153928 | IIEES SC | SHRT | Z | 13 | 1.03 | 2020-05-18 18:16:59 | 2020-05-19 10:48:00 | n |
| 153929 | IIEES SC | AMIS | Z | 41 | 1 | 2020-05-18 18:18:18 | 2020-05-19 10:48:00 | n |
| 153930 | IIEES SC | AMIS | Z | 11 | 0.46 | 2020-05-18 18:17:00 | 2020-05-19 10:48:00 | n |
| 153931 | IIEES SC | SBZV | Z | 9.3 | 1 | 2020-05-18 18:19:27 | 2020-05-19 10:48:00 | n |
| 153932 | IIEES SC | SBZV | Z | 13 | 0.65 | 2020-05-18 18:17:01 | 2020-05-19 10:48:00 | n |
| 153933 | IIEES SC | KHMZ | Z | 13 | 0.59 | 2020-05-18 18:17:12 | 2020-05-19 10:48:00 | n |
| 153934 | IIEES SC | AKL | Z | 4.6 | 0.99 | 2020-05-18 18:17:08 | 2020-05-19 10:48:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | BNDS | N | IS | I | 2020-05-18 18:15:40 | 0.1 | y | 133 | 217 | |
| IIEES SC | BNDS | Z | IP | I | 2020-05-18 18:15:23 | 0 | y | 133 | 217 | |
| IIEES SC | KRBR | N | IS | I | 2020-05-18 18:15:46 | -4.7 | n | 4 | 177 | 352 |
| IIEES SC | KRBR | Z | IP | I | 2020-05-18 18:15:26 | -2.7 | n | 4 | 177 | 352 |
| IIEES SC | ZHSF | Z | IP | I | 2020-05-18 18:15:56 | 0.1 | y | 389 | 70 | |
| IIEES SC | LMD1 | Z | IP | I | 2020-05-18 18:15:57 | 0 | y | 400 | 253 | |
| IIEES SC | BSRN | Z | IP | I | 2020-05-18 18:16:03 | 0.1 | y | 444 | 27 | |
| IIEES SC | YZKH | Z | IP | I | 2020-05-18 18:16:10 | -0.3 | y | 500 | 332 | |
| IIEES SC | SRVN | Z | IP | I | 2020-05-18 18:16:15 | -0.3 | y | 544 | 102 | |
| IIEES SC | TABS | Z | IP | I | 2020-05-18 18:16:21 | 0.7 | y | 578 | 1 | |
| IIEES SC | NASN | Z | IP | I | 2020-05-18 18:16:26 | -0.9 | y | 633 | 320 | |
| IIEES SC | SHRT | Z | IP | I | 2020-05-18 18:16:30 | 0.3 | y | 656 | 28 | |
| IIEES SC | AMIS | Z | IP | I | 2020-05-18 18:16:50 | -0.2 | y | 834 | 296 | |
| IIEES SC | GTMR | Z | IP | I | 2020-05-18 18:17:01 | 3.6 | n | 4 | 889 | 301 |
| IIEES SC | SBZV | Z | IP | I | 2020-05-18 18:16:59 | 0.7 | y | 889 | 4 | |
| IIEES SC | KHMZ | Z | IP | I | 2020-05-18 18:16:58 | -0.9 | y | 900 | 311 | |
| IIEES SC | AKL | Z | IP | I | 2020-05-18 18:17:02 | -0.3 | y | 922 | 10 | |
| IIEES SC | SNGE | E | IP | I | 2020-05-18 18:17:30 | -4.1 | n | 4 | 1178 | 309 |
| IIEES SC | ILBA | E | IP | I | 2020-05-18 18:17:31 | -4.1 | n | 4 | 1189 | 299 |
| IIEES SC | TABS | Z | IVmB_BB | 2020-05-18 18:16:23 | y | 1 | 578 | 1 | ||
| IIEES SC | AMIS | Z | IVmB_BB | 2020-05-18 18:17:39 | y | 1 | 834 | 296 | ||
| IIEES SC | AKL | Z | IVmB_BB | 2020-05-18 18:17:07 | y | 1 | 922 | 10 |
