Magnitude |
4.3 |
| Date & Time (UTC) | 2020-06-10 04:02:27.6 |
| Date & Time (Local) | 1399/3/21 08:32:27.6 |

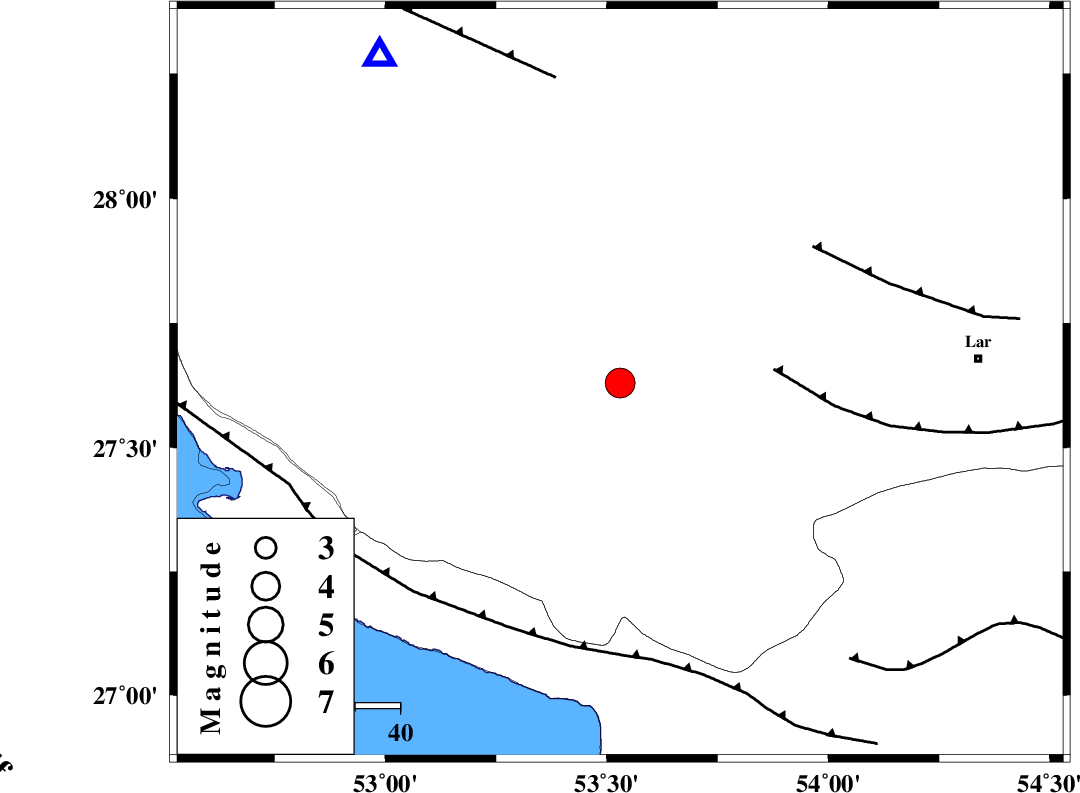

| Location | Lat:27.63 Lon: 53.53 |
| Region | Fars Province, 49 km North-East of Lamerd |
Nearest Cities |
|
| 5 km North of Fedagh, Fars Province | |
| 15 km West of Ard, Fars Province | |
| 23 km North of Beyram, Fars Province | |
| 24 km South West of Fishur, Fars Province | |
| 29 km South East of Khonj, Fars Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| LAR_F (Length: 99 km) , Distance to epicenter: 34 km | |
| BERIZ_F (Length: 49 km) , Distance to epicenter: 53 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 60 km | |
| Number of Phases | 38 |
| RMS | 0.6 |
| Number of Stations | 22 |
| Error in Latitude | 3 km |
| Error in Longitude | 0 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 154251 | IIEES SC | LMD1 | Z | 23000 | 1 | 2020-06-10 04:02:59 | 2020-06-10 09:39:00 | n |
| 154252 | IIEES SC | AHRM | Z | 150 | 1 | 2020-06-10 04:04:23 | 2020-06-10 09:39:00 | n |
| 154253 | IIEES SC | BNDS | Z | 2100 | 1 | 2020-06-10 04:04:12 | 2020-06-10 09:39:00 | n |
| 154254 | IIEES SC | YZKH | Z | 100 | 1 | 2020-06-10 04:05:27 | 2020-06-10 09:39:00 | n |
| 154255 | IIEES SC | NASN | Z | 60 | 1 | 2020-06-10 04:05:32 | 2020-06-10 09:39:00 | n |
| 154256 | IIEES SC | AMIS | Z | 130 | 1 | 2020-06-10 04:05:59 | 2020-06-10 09:39:00 | n |
| 154257 | IIEES SC | AMIS | Z | 16 | 0.46 | 2020-06-10 04:04:12 | 2020-06-10 09:39:00 | n |
| 154258 | IIEES SC | GTMR | Z | 87 | 1 | 2020-06-10 04:06:14 | 2020-06-10 09:39:00 | n |
| 154259 | IIEES SC | GTMR | Z | 31 | 1.66 | 2020-06-10 04:04:29 | 2020-06-10 09:39:00 | n |
| 154260 | IIEES SC | BSRN | Z | 69 | 1 | 2020-06-10 04:06:26 | 2020-06-10 09:39:00 | n |
| 154261 | IIEES SC | BSRN | Z | 13 | 0.89 | 2020-06-10 04:04:29 | 2020-06-10 09:39:00 | n |
| 154262 | IIEES SC | CHBR | Z | 65 | 1 | 2020-06-10 04:05:45 | 2020-06-10 09:39:00 | n |
| 154263 | IIEES SC | CHBR | Z | 290 | 1.03 | 2020-06-10 04:04:19 | 2020-06-10 09:39:00 | n |
| 154264 | IIEES SC | ZHSF | Z | 29 | 1 | 2020-06-10 04:06:32 | 2020-06-10 09:39:00 | n |
| 154265 | IIEES SC | ZHSF | Z | 24 | 0.86 | 2020-06-10 04:04:14 | 2020-06-10 09:39:00 | n |
| 154266 | IIEES SC | TABS | Z | 65 | 1 | 2020-06-10 04:06:35 | 2020-06-10 09:39:00 | n |
| 154267 | IIEES SC | TABS | Z | 63 | 1.14 | 2020-06-10 04:04:12 | 2020-06-10 09:39:00 | n |
| 154268 | IIEES SC | KHMZ | Z | 35 | 1 | 2020-06-10 04:06:12 | 2020-06-10 09:39:00 | n |
| 154269 | IIEES SC | KHMZ | Z | 13 | 0.62 | 2020-06-10 04:04:29 | 2020-06-10 09:39:00 | n |
| 154270 | IIEES SC | GHVR | Z | 760 | 1 | 2020-06-10 04:06:40 | 2020-06-10 09:39:00 | n |
| 154271 | IIEES SC | GHVR | Z | 31 | 0.82 | 2020-06-10 04:04:23 | 2020-06-10 09:39:00 | n |
| 154272 | IIEES SC | ASAO | Z | 36 | 1 | 2020-06-10 04:05:59 | 2020-06-10 09:39:00 | n |
| 154273 | IIEES SC | ASAO | Z | 14 | 0.74 | 2020-06-10 04:04:37 | 2020-06-10 09:39:00 | n |
| 154274 | IIEES SC | SRVN | Z | 28 | 1 | 2020-06-10 04:06:17 | 2020-06-10 09:39:00 | n |
| 154275 | IIEES SC | SRVN | Z | 31 | 0.6 | 2020-06-10 04:04:40 | 2020-06-10 09:39:00 | n |
| 154276 | IIEES SC | DAMV | Z | 25 | 0.72 | 2020-06-10 04:04:30 | 2020-06-10 09:39:00 | n |
| 154277 | IIEES SC | RAYN | Z | 24 | 1.07 | 2020-06-10 04:04:55 | 2020-06-10 09:39:00 | n |
| 154278 | IIEES SC | SHRO | Z | 19 | 1.01 | 2020-06-10 04:05:01 | 2020-06-10 09:39:00 | n |
| 154279 | IIEES SC | QABG | Z | 2.4 | 0.83 | 2020-06-10 04:05:00 | 2020-06-10 09:39:00 | n |
| 154280 | IIEES SC | GLO | Z | 120 | 0.76 | 2020-06-10 04:05:08 | 2020-06-10 09:39:00 | n |
| 154281 | IIEES SC | SNGE | Z | 7.5 | 0.85 | 2020-06-10 04:05:07 | 2020-06-10 09:39:00 | n |
| 154282 | IIEES SC | SBZV | Z | 14 | 1.34 | 2020-06-10 04:04:50 | 2020-06-10 09:39:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | LMD1 | Z | IP | I | 2020-06-10 04:02:36 | 0 | y | 44 | 229 | |
| IIEES SC | AHRM | Z | IP | I | 2020-06-10 04:03:08 | 1 | y | 255 | 302 | |
| IIEES SC | BNDS | Z | IP | I | 2020-06-10 04:03:08 | 0 | y | 266 | 96 | |
| IIEES SC | KRBR | Z | IP | I | 2020-06-10 04:03:18 | -8.7 | n | 4 | 411 | 50 |
| IIEES SC | YZKH | Z | IP | I | 2020-06-10 04:03:43 | 0.7 | y | 533 | 11 | |
| IIEES SC | NASN | Z | IP | I | 2020-06-10 04:03:47 | -0.4 | y | 578 | 353 | |
| IIEES SC | AMIS | Z | IP | I | 2020-06-10 04:03:51 | 0.4 | y | 611 | 317 | |
| IIEES SC | GTMR | Z | IP | I | 2020-06-10 04:04:00 | -0.9 | y | 689 | 322 | |
| IIEES SC | BSRN | Z | IP | I | 2020-06-10 04:04:05 | -0.5 | y | 722 | 48 | |
| IIEES SC | CHBR | Z | IP | I | 2020-06-10 04:04:05 | -0.3 | y | 722 | 108 | |
| IIEES SC | ZHSF | Z | IP | I | 2020-06-10 04:04:09 | 1.8 | y | 745 | 73 | |
| IIEES SC | TABS | Z | IP | I | 2020-06-10 04:04:09 | 0.1 | y | 756 | 27 | |
| IIEES SC | KHMZ | Z | IP | I | 2020-06-10 04:04:09 | -1.1 | y | 756 | 333 | |
| IIEES SC | GHVR | Z | IP | I | 2020-06-10 04:04:13 | -0.7 | y | 789 | 344 | |
| IIEES SC | ASAO | Z | IP | I | 2020-06-10 04:04:19 | -0.8 | y | 834 | 336 | |
| IIEES SC | SRVN | Z | IP | I | 2020-06-10 04:04:25 | 0.6 | y | 878 | 92 | |
| IIEES SC | DAMV | Z | IP | I | 2020-06-10 04:04:26 | -1.3 | y | 900 | 351 | |
| IIEES SC | RAYN | Z | IP | I | 2020-06-10 04:04:29 | -1.8 | y | 922 | 241 | |
| IIEES SC | SHRO | Z | IP | I | 2020-06-10 04:04:34 | 0 | y | 956 | 14 | |
| IIEES SC | ILBA | Z | IP | I | 2020-06-10 04:04:33 | -2.9 | n | 4 | 967 | 313 |
| IIEES SC | QABG | Z | IP | I | 2020-06-10 04:04:36 | -0.6 | y | 967 | 337 | |
| IIEES SC | GLO | Z | IP | I | 2020-06-10 04:04:39 | 1.5 | y | 989 | 2 | |
| IIEES SC | SNGE | Z | IP | I | 2020-06-10 04:04:41 | -0.5 | y | 1011 | 325 | |
| IIEES SC | SBZV | Z | IP | I | 2020-06-10 04:04:46 | 0.7 | y | 1045 | 22 | |
| IIEES SC | NASN | Z | IVmB_BB | 2020-06-10 04:04:07 | y | 1 | 578 | 353 | ||
| IIEES SC | AMIS | Z | IVmB_BB | 2020-06-10 04:04:49 | y | 1 | 611 | 317 | ||
| IIEES SC | GTMR | Z | IVmB_BB | 2020-06-10 04:04:31 | y | 1 | 689 | 322 | ||
| IIEES SC | BSRN | Z | IVmB_BB | 2020-06-10 04:04:32 | y | 1 | 722 | 48 | ||
| IIEES SC | ZHSF | Z | IVmB_BB | 2020-06-10 04:04:44 | y | 1 | 745 | 73 | ||
| IIEES SC | TABS | Z | IVmB_BB | 2020-06-10 04:04:49 | y | 1 | 756 | 27 | ||
| IIEES SC | KHMZ | Z | IVmB_BB | 2020-06-10 04:05:04 | y | 1 | 756 | 333 | ||
| IIEES SC | GHVR | Z | IVmB_BB | 2020-06-10 04:04:52 | y | 1 | 789 | 344 | ||
| IIEES SC | ASAO | Z | IVmB_BB | 2020-06-10 04:04:54 | y | 1 | 834 | 336 | ||
| IIEES SC | DAMV | Z | IVmB_BB | 2020-06-10 04:05:05 | y | 1 | 900 | 351 | ||
| IIEES SC | RAYN | Z | IVmB_BB | 2020-06-10 04:05:23 | y | 1 | 922 | 241 | ||
| IIEES SC | QABG | Z | IVmB_BB | 2020-06-10 04:05:18 | y | 1 | 967 | 337 | ||
| IIEES SC | GLO | Z | IVmB_BB | 2020-06-10 04:05:06 | y | 1 | 989 | 2 | ||
| IIEES SC | SBZV | Z | IVmB_BB | 2020-06-10 04:05:32 | y | 1 | 1045 | 22 |
