Magnitude |
3.1 |
| Date & Time (UTC) | 2020-06-10 01:42:39.3 |
| Date & Time (Local) | 1399/3/21 06:12:39.3 |

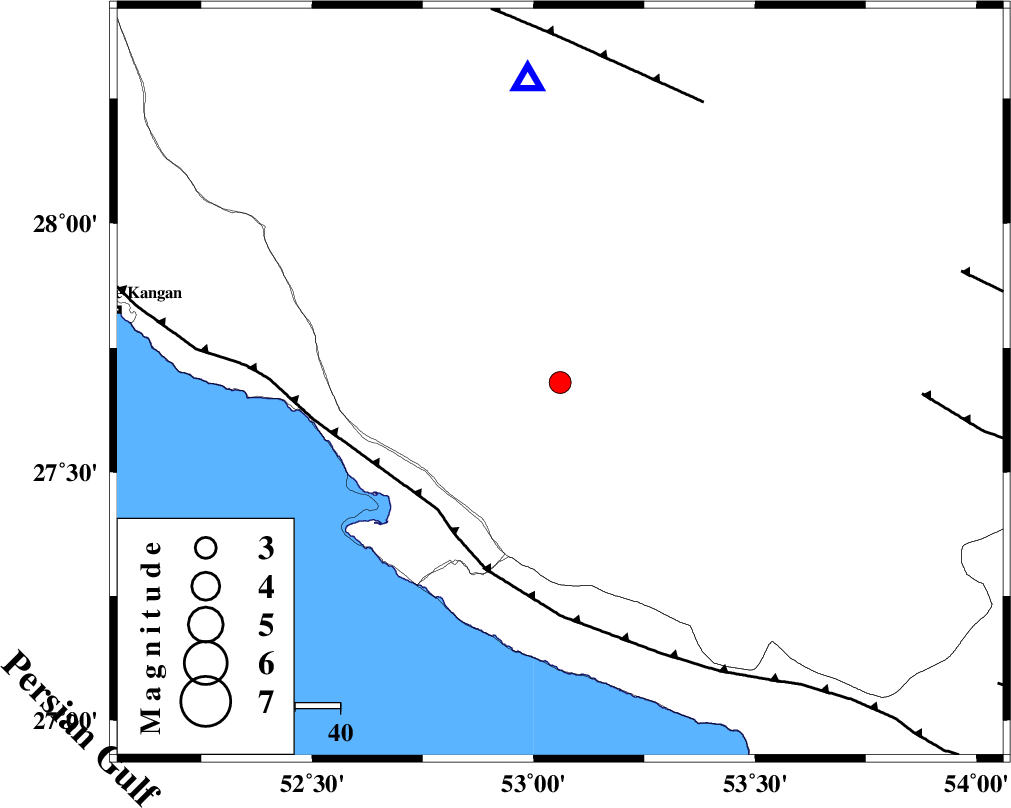

| Location | Lat:27.68 Lon: 53.06 |
| Region | Fars Province, 22 km North-East of Mehr |
Nearest Cities |
|
| 12 km North of Alamarvdasht, Fars Province | |
| 22 km North East of Mehr, Fars Province | |
| 27 km North East of Ardavan-e olia, Fars Province | |
| 27 km North of Khoozi, Fars Province | |
| 38 km North East of Gallehdar, Fars Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF3 (Length: 292 km) , Distance to epicenter: 39 km | |
| QIR_F (Length: 130 km) , Distance to epicenter: 70 km | |
| LAR_F (Length: 99 km) , Distance to epicenter: 80 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | 4 km |
| Error in Longitude | 0 km |
| Error in Depth | 5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 154352 | IIEES SC | LMD1 | Z | 3300 | 1 | 2020-06-10 01:42:59 | 2020-06-10 11:24:00 | n |
| 154353 | IIEES SC | GHIR | Z | 100 | 1 | 2020-06-10 01:43:25 | 2020-06-10 11:24:00 | n |
| 154354 | IIEES SC | BNDS | Z | 49 | 1 | 2020-06-10 01:44:33 | 2020-06-10 11:24:00 | n |
| 154355 | IIEES SC | YZKH | Z | 7.3 | 1 | 2020-06-10 01:45:29 | 2020-06-10 11:24:00 | n |
| 154356 | IIEES SC | NASN | Z | 5.9 | 1 | 2020-06-10 01:45:39 | 2020-06-10 11:24:00 | n |
| 154357 | IIEES SC | NASN | Z | 5.8 | 0.56 | 2020-06-10 01:43:59 | 2020-06-10 11:24:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | LMD1 | Z | IP | I | 2020-06-10 01:42:46 | 0 | y | 44 | 165 | |
| IIEES SC | GHIR | Z | IP | I | 2020-06-10 01:42:51 | 0.1 | y | 66 | 353 | |
| IIEES SC | AHRM | Z | IP | I | 2020-06-10 01:43:26 | 12.2 | n | 4 | 222 | 307 |
| IIEES SC | BNDS | Z | IP | I | 2020-06-10 01:43:25 | 0 | y | 311 | 96 | |
| IIEES SC | KRBR | Z | IP | I | 2020-06-10 01:43:27 | -14.4 | n | 4 | 444 | 55 |
| IIEES SC | YZKH | Z | IP | I | 2020-06-10 01:43:53 | -0.6 | y | 544 | 16 | |
| IIEES SC | NASN | Z | IP | I | 2020-06-10 01:43:57 | 0.1 | y | 567 | 358 |
