Magnitude |
3.1 |
| Date & Time (UTC) | 2020-06-09 23:09:39.1 |
| Date & Time (Local) | 1399/3/21 03:39:39.1 |

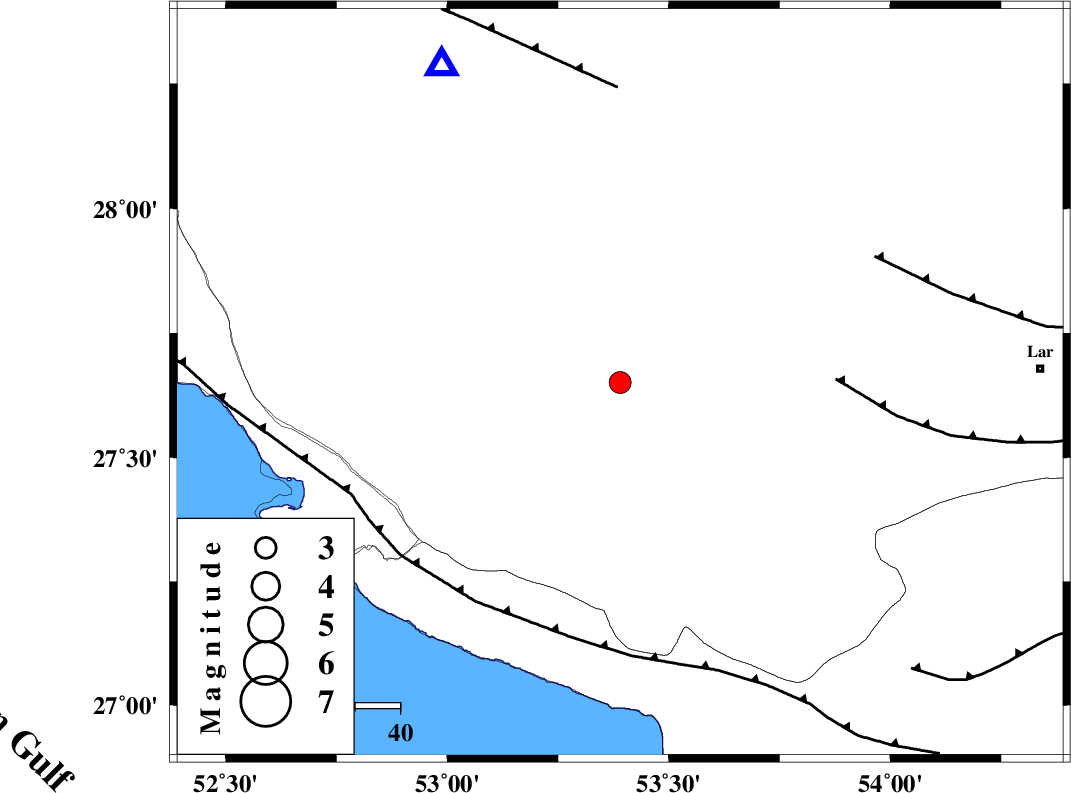

| Location | Lat:27.65 Lon: 53.39 |
| Region | Fars Province, 42 km North-East of Lamerd |
Nearest Cities |
|
| 15 km North West of Fedagh, Fars Province | |
| 25 km South of Khonj, Fars Province | |
| 25 km West of Ard, Fars Province | |
| 28 km North West of Beyram, Fars Province | |
| 33 km South West of Fishur, Fars Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| LAR_F (Length: 99 km) , Distance to epicenter: 48 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 58 km | |
| BERIZ_F (Length: 49 km) , Distance to epicenter: 63 km | |
| Number of Phases | 8 |
| RMS | 0.5 |
| Number of Stations | 7 |
| Error in Latitude | 5 km |
| Error in Longitude | 0 km |
| Error in Depth | 11 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 154373 | IIEES SC | LMD1 | Z | 2400 | 1 | 2020-06-09 23:09:58 | 2020-06-10 12:44:00 | n |
| 154374 | IIEES SC | GHIR | Z | 53 | 1 | 2020-06-09 23:10:10 | 2020-06-10 12:44:00 | n |
| 154375 | IIEES SC | AHRM | Z | 11 | 1 | 2020-06-09 23:11:03 | 2020-06-10 12:44:00 | n |
| 154376 | IIEES SC | BNDS | Z | 29 | 1 | 2020-06-09 23:11:31 | 2020-06-10 12:44:00 | n |
| 154377 | IIEES SC | YZKH | Z | 4.4 | 1 | 2020-06-09 23:12:20 | 2020-06-10 12:44:00 | n |
| 154378 | IIEES SC | NASN | Z | 6.8 | 1 | 2020-06-09 23:11:57 | 2020-06-10 12:44:00 | n |
| 154379 | IIEES SC | NASN | Z | 5.7 | 0.64 | 2020-06-09 23:11:00 | 2020-06-10 12:44:00 | n |
| 154380 | IIEES SC | GTMR | Z | 6.3 | 1 | 2020-06-09 23:12:25 | 2020-06-10 12:44:00 | n |
| 154381 | IIEES SC | GTMR | Z | 3.2 | 0.62 | 2020-06-09 23:11:14 | 2020-06-10 12:44:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | LMD1 | Z | IP | I | 2020-06-09 23:09:47 | 0.1 | y | 44 | 213 | |
| IIEES SC | GHIR | Z | IP | I | 2020-06-09 23:09:52 | -0.7 | y | 77 | 330 | |
| IIEES SC | AHRM | Z | IP | I | 2020-06-09 23:10:17 | 0.5 | y | 244 | 303 | |
| IIEES SC | BNDS | Z | IP | I | 2020-06-09 23:10:20 | -0.1 | y | 278 | 96 | |
| IIEES SC | KRBR | Z | IP | I | 2020-06-09 23:10:31 | -7.6 | n | 4 | 422 | 52 |
| IIEES SC | YZKH | Z | IP | I | 2020-06-09 23:10:55 | 1.6 | y | 533 | 12 | |
| IIEES SC | NASN | Z | IP | I | 2020-06-09 23:10:57 | 0 | y | 578 | 354 | |
| IIEES SC | GTMR | Z | IP | I | 2020-06-09 23:11:09 | -1 | y | 678 | 322 |
