Magnitude |
3.1 |
| Date & Time (UTC) | 2020-06-13 17:12:08.5 |
| Date & Time (Local) | 1399/3/24 21:42:08.5 |

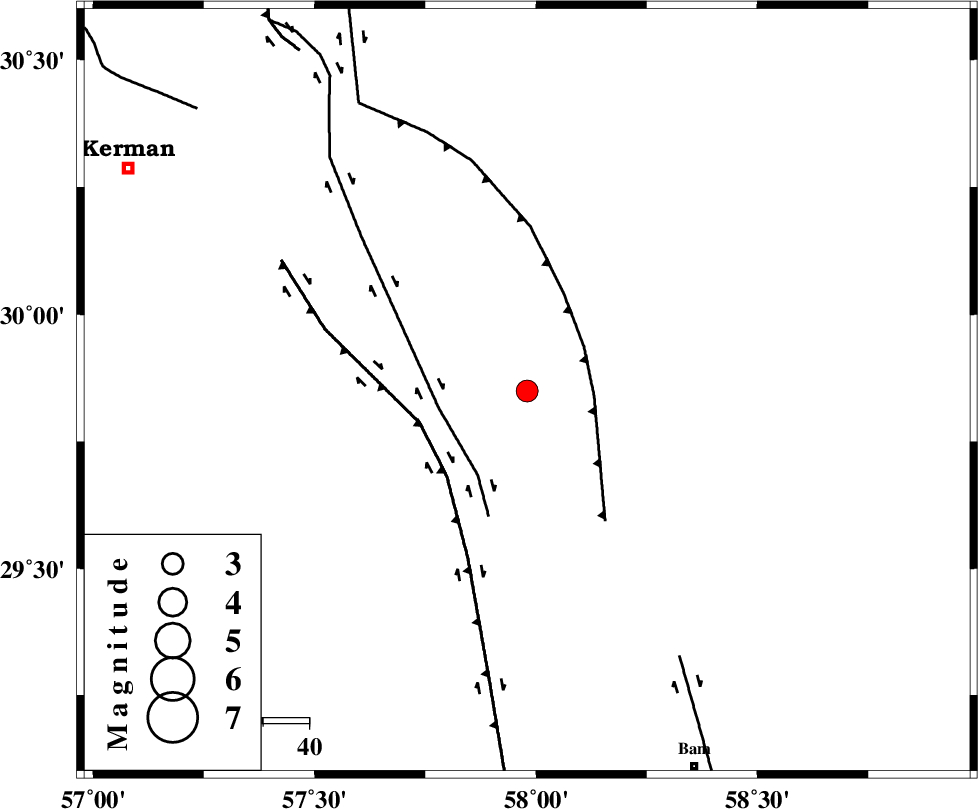

| Location | Lat:29.85 Lon: 57.98 |
| Region | Kerman Province, 90 km North-West of Bam |
Nearest Cities |
|
| 16 km West of Geshit, Kerman Province | |
| 19 km East of Golbaft, Kerman Province | |
| 45 km South East of Jushan, Kerman Province | |
| 56 km North East of Dehmirza, Kerman Province | |
| 56 km South East of Sirch, Kerman Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| SHAHDAD_F (Length: 108 km) , Distance to epicenter: 15 km | |
| GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 20 km | |
| GOWK_F (Length: 152 km) , Distance to epicenter: 24 km | |
| Number of Phases | 8 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | 0 km |
| Error in Longitude | 0 km |
| Error in Depth | 82 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 154594 | IIEES SC | BSRN | Z | 85 | 1 | 2020-06-13 17:13:29 | 2020-06-14 12:50:00 | n |
| 154595 | IIEES SC | ZHSF | Z | 28 | 1 | 2020-06-13 17:13:27 | 2020-06-14 12:50:00 | n |
| 154596 | IIEES SC | BNDS | Z | 54 | 1 | 2020-06-13 17:13:42 | 2020-06-14 12:50:00 | n |
| 154597 | IIEES SC | YZKH | Z | 21 | 1 | 2020-06-13 17:14:23 | 2020-06-14 12:50:00 | n |
| 154598 | IIEES SC | TABS | Z | 31 | 1 | 2020-06-13 17:14:20 | 2020-06-14 12:50:00 | n |
| 154599 | IIEES SC | SHRT | Z | 7.3 | 1 | 2020-06-13 17:14:40 | 2020-06-14 12:50:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | KRBR | Z | IP | I | 2020-06-13 17:12:16 | -12 | n | 4 | 122 | 277 |
| IIEES SC | BSRN | Z | IP | I | 2020-06-13 17:12:49 | 0.1 | y | 255 | 25 | |
| IIEES SC | ZHSF | Z | IP | I | 2020-06-13 17:12:50 | 0 | y | 266 | 96 | |
| IIEES SC | BNDS | Z | IP | I | 2020-06-13 17:12:57 | 0 | y | 322 | 213 | |
| IIEES SC | YZKH | Z | IP | I | 2020-06-13 17:13:10 | 0 | y | 433 | 311 | |
| IIEES SC | TABS | Z | IP | I | 2020-06-13 17:13:10 | 0 | y | 433 | 349 | |
| IIEES SC | SHRT | Z | IP | I | 2020-06-13 17:13:16 | 0.8 | y | 478 | 27 | |
| IIEES SC | GHIR | Z | IP | I | 2020-06-13 17:13:22 | 1.7 | n | 4 | 511 | 250 |
