Magnitude |
4.1 |
| Date & Time (UTC) | 2020-06-27 07:48:03.3 |
| Date & Time (Local) | 1399/4/7 12:18:03.3 |

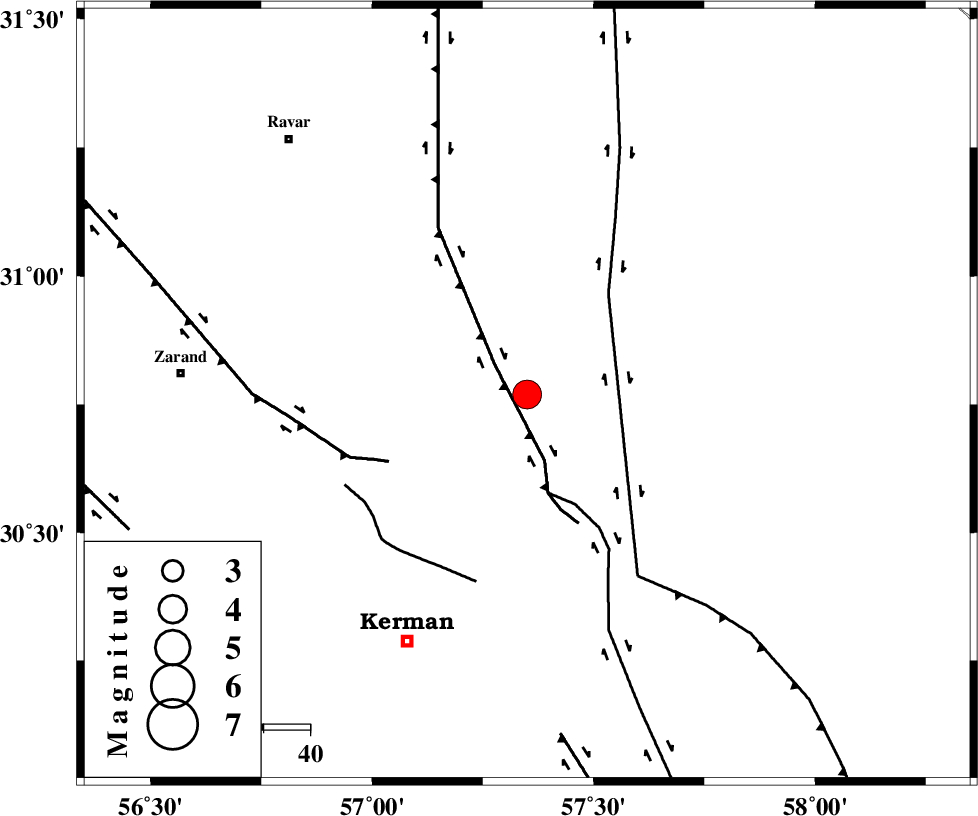

| Location | Lat:30.77 Lon: 57.35 |
| Region | Kerman Province, 60 km North-East of Kerman |
Nearest Cities |
|
| 24 km North East of Harjand, Kerman Province | |
| 30 km North of Dehlulu, Kerman Province | |
| 36 km North East of Hejdak, Kerman Province | |
| 45 km North East of Hutak, Kerman Province | |
| 46 km North East of Chatrud, Kerman Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 9 km | |
| GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 22 km | |
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 28 km | |
| Number of Phases | 17 |
| RMS | 0.5 |
| Number of Stations | 13 |
| Error in Latitude | 1 km |
| Error in Longitude | 0 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 155005 | IIEES SC | KRBR | Z | 2900 | 1 | 2020-06-27 07:48:41 | 2020-06-27 01:31:00 | n |
| 155006 | IIEES SC | YZKH | Z | 380 | 1 | 2020-06-27 07:49:42 | 2020-06-27 01:31:00 | n |
| 155007 | IIEES SC | TABS | Z | 480 | 1 | 2020-06-27 07:49:42 | 2020-06-27 01:31:00 | n |
| 155008 | IIEES SC | ZHSF | Z | 200 | 1 | 2020-06-27 07:49:47 | 2020-06-27 01:31:00 | n |
| 155009 | IIEES SC | BNDS | Z | 170 | 1 | 2020-06-27 07:50:10 | 2020-06-27 01:31:00 | n |
| 155010 | IIEES SC | SHRT | Z | 170 | 1 | 2020-06-27 07:50:17 | 2020-06-27 01:31:00 | n |
| 155011 | IIEES SC | NASN | Z | 100 | 1 | 2020-06-27 07:50:28 | 2020-06-27 01:31:00 | n |
| 155012 | IIEES SC | TBJM | Z | 100 | 1 | 2020-06-27 07:51:01 | 2020-06-27 01:31:00 | n |
| 155013 | IIEES SC | TBJM | Z | 22 | 1.07 | 2020-06-27 07:49:48 | 2020-06-27 01:31:00 | n |
| 155014 | IIEES SC | SHRO | Z | 2.6 | 1 | 2020-06-27 07:51:35 | 2020-06-27 01:31:00 | n |
| 155015 | IIEES SC | SHRO | Z | 21 | 0.81 | 2020-06-27 07:49:47 | 2020-06-27 01:31:00 | n |
| 155016 | IIEES SC | SBZV | Z | 21 | 0.86 | 2020-06-27 07:49:55 | 2020-06-27 01:31:00 | n |
| 155017 | IIEES SC | AKL | Z | 6.1 | 0.81 | 2020-06-27 07:49:57 | 2020-06-27 01:31:00 | n |
| 155018 | IIEES SC | GLO | Z | 230 | 1 | 2020-06-27 07:51:44 | 2020-06-27 01:31:00 | n |
| 155019 | IIEES SC | GLO | Z | 34 | 0.84 | 2020-06-27 07:49:52 | 2020-06-27 01:31:00 | n |
| 155020 | IIEES SC | MRVT | Z | 19 | 1 | 2020-06-27 07:52:07 | 2020-06-27 01:31:00 | n |
| 155021 | IIEES SC | MRVT | Z | 6.2 | 0.96 | 2020-06-27 07:50:02 | 2020-06-27 01:31:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | KRBR | Z | IP | I | 2020-06-27 07:48:20 | -0.6 | y | 100 | 213 | |
| IIEES SC | BSRN | Z | IP | I | 2020-06-27 07:48:35 | -2.3 | n | 4 | 211 | 52 |
| IIEES SC | YZKH | Z | IP | I | 2020-06-27 07:48:51 | -0.1 | y | 322 | 304 | |
| IIEES SC | TABS | Z | IP | I | 2020-06-27 07:48:50 | -0.8 | y | 322 | 356 | |
| IIEES SC | ZHSF | Z | IP | I | 2020-06-27 07:48:55 | 0 | y | 355 | 111 | |
| IIEES SC | BNDS | Z | IP | I | 2020-06-27 07:49:00 | 0.8 | y | 389 | 197 | |
| IIEES SC | SHRT | Z | IP | I | 2020-06-27 07:49:03 | -0.7 | y | 422 | 41 | |
| IIEES SC | NASN | Z | IP | I | 2020-06-27 07:49:12 | 0.4 | y | 489 | 298 | |
| IIEES SC | KLNJ | Z | IP | I | 2020-06-27 07:49:14 | -6 | n | 4 | 556 | 273 |
| IIEES SC | TBJM | Z | IP | I | 2020-06-27 07:49:22 | 0 | y | 567 | 29 | |
| IIEES SC | SHRO | Z | IP | I | 2020-06-27 07:49:24 | -0.7 | y | 589 | 348 | |
| IIEES SC | SBZV | Z | IP | I | 2020-06-27 07:49:29 | -0.1 | y | 622 | 2 | |
| IIEES SC | AKL | Z | IP | I | 2020-06-27 07:49:33 | 0 | y | 656 | 11 | |
| IIEES SC | GLO | Z | IP | I | 2020-06-27 07:49:41 | 1.2 | y | 711 | 333 | |
| IIEES SC | MRVT | Z | IP | I | 2020-06-27 07:49:47 | 0.4 | y | 778 | 351 | |
| IIEES SC | TBJM | Z | IVmB_BB | 2020-06-27 07:50:04 | y | 1 | 567 | 29 | ||
| IIEES SC | GLO | Z | IVmB_BB | 2020-06-27 07:50:16 | y | 1 | 711 | 333 |
