Magnitude |
3.2 |
| Date & Time (UTC) | 2020-07-25 20:28:30.5 |
| Date & Time (Local) | 1399/5/5 00:58:30.5 |

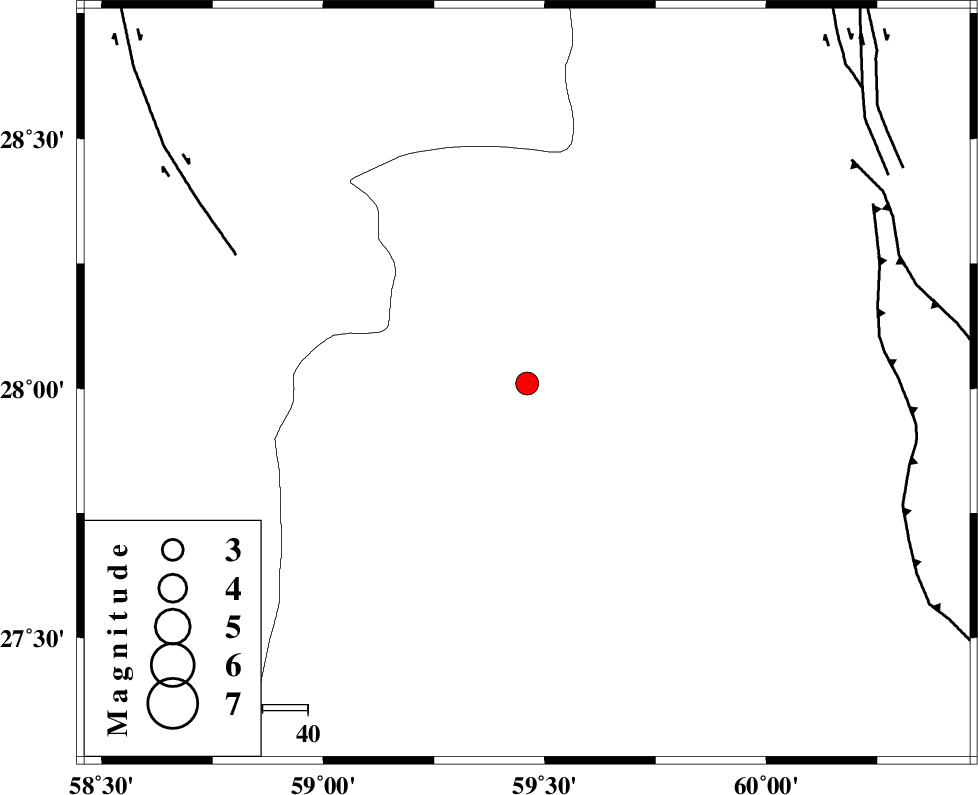

| Location | Lat:28.01 Lon: 59.46 |
| Region | Sistan va Baloochestan Province, 174 km -East of Kahnuj |
Nearest Cities |
|
| 62 km North of Kalemursi, Sistan va Baloochestan Province | |
| 72 km North West of Bozman, Sistan va Baloochestan Province | |
| 74 km North West of Kiman, Sistan va Baloochestan Province | |
| 86 km South East of Hoseynabad, Kerman Province | |
| 93 km East of Borj-e abbasabad, Kerman Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| BAM_F (Length: 118 km) , Distance to epicenter: 70 km | |
| KASKIN_F (Length: 100 km) , Distance to epicenter: 79 km | |
| DAMAN_F (Length: 167 km) , Distance to epicenter: 87 km | |
| Number of Phases | 7 |
| RMS | 2.2 |
| Number of Stations | 5 |
| Error in Latitude | 6 km |
| Error in Longitude | 0 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 155833 | IIEES SC | CHBR | Z | 53 | 1 | 2020-07-25 20:30:04 | 2020-07-27 12:09:00 | n |
| 155834 | IIEES SC | SRVN | Z | 13 | 1 | 2020-07-25 20:30:11 | 2020-07-27 12:09:00 | n |
| 155835 | IIEES SC | BNDS | Z | 16 | 1 | 2020-07-25 20:30:54 | 2020-07-27 12:09:00 | n |
| 155836 | IIEES SC | BSRN | Z | 19 | 1 | 2020-07-25 20:30:38 | 2020-07-27 12:09:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | ZHSF | N | IP | I | 2020-07-25 20:29:05 | 1.2 | y | 222 | 35 | |
| IIEES SC | CHBR | Z | IP | I | 2020-07-25 20:29:13 | 1.6 | y | 289 | 159 | |
| IIEES SC | SRVN | Z | IP | I | 2020-07-25 20:29:16 | 3.1 | y | 300 | 102 | |
| IIEES SC | BNDS | Z | IP | I | 2020-07-25 20:29:20 | 2.3 | y | 333 | 259 | |
| IIEES SC | KRBR | N | IS | I | 2020-07-25 20:30:09 | 12.2 | n | 4 | 344 | 311 |
| IIEES SC | KRBR | Z | IP | I | 2020-07-25 20:29:34 | 15.8 | n | 4 | 344 | 311 |
| IIEES SC | BSRN | Z | IP | I | 2020-07-25 20:29:33 | 2.5 | y | 444 | 356 |
