Magnitude |
3.4 |
| Date & Time (UTC) | 2020-08-18 10:30:57.3 |
| Date & Time (Local) | 1399/5/28 15:00:57.3 |

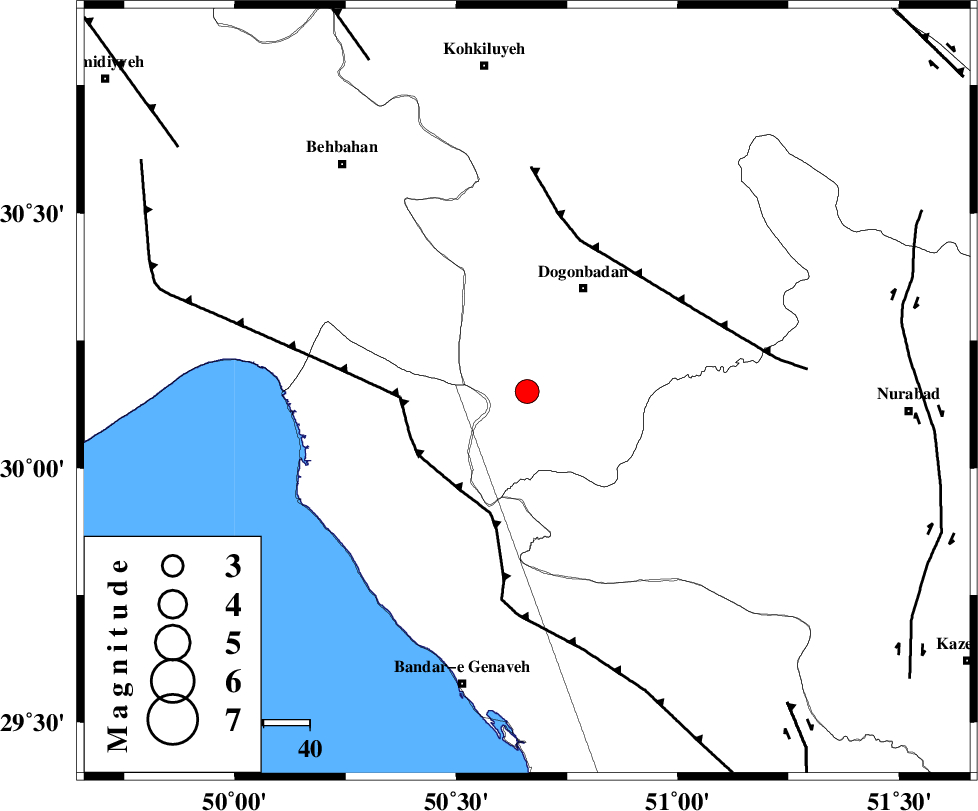

| Location | Lat:30.15 Lon: 50.66 |
| Region | Kohkiluieh va boyerahmad Province, 26 km South-West of Dogonbadan |
Nearest Cities |
|
| 26 km South West of Dogonbadan, Kohkiluieh va boyerahmad Province | |
| 33 km North East of Siyahmakan-e bozorg, Bushehr Province | |
| 46 km East of Ameri, Bushehr Province | |
| 46 km South East of Sardasht, Khoozestan Province | |
| 50 km South West of Abdehgah, Kohkiluieh va boyerahmad Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| ZFF3 (Length: 125 km) , Distance to epicenter: 26 km | |
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 28 km | |
| MISHAN_F (Length: 76 km) , Distance to epicenter: 34 km | |
| Number of Phases | 16 |
| RMS | 0.3 |
| Number of Stations | 14 |
| Error in Latitude | 1 km |
| Error in Longitude | 0 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 156424 | IIEES SC | KLNJ | Z | 680 | 1 | 2020-08-18 10:31:44 | 2020-08-19 10:05:00 | n |
| 156425 | IIEES SC | AHRM | Z | 110 | 1 | 2020-08-18 10:31:44 | 2020-08-19 10:05:00 | n |
| 156426 | IIEES SC | AMIS | Z | 210 | 1 | 2020-08-18 10:32:20 | 2020-08-19 10:05:00 | n |
| 156427 | IIEES SC | GTMR | Z | 120 | 1 | 2020-08-18 10:32:33 | 2020-08-19 10:05:00 | n |
| 156428 | IIEES SC | NASN | Z | 33 | 1 | 2020-08-18 10:32:48 | 2020-08-19 10:05:00 | n |
| 156429 | IIEES SC | KHMZ | Z | 20 | 1 | 2020-08-18 10:32:52 | 2020-08-19 10:05:00 | n |
| 156430 | IIEES SC | YZKH | Z | 15 | 1 | 2020-08-18 10:33:15 | 2020-08-19 10:05:00 | n |
| 156431 | IIEES SC | GHVR | Z | 660 | 1 | 2020-08-18 10:33:33 | 2020-08-19 10:05:00 | n |
| 156432 | IIEES SC | ASAO | Z | 28 | 1 | 2020-08-18 10:33:03 | 2020-08-19 10:05:00 | n |
| 156433 | IIEES SC | KRBR | Z | 18 | 1 | 2020-08-18 10:34:03 | 2020-08-19 10:05:00 | n |
| 156434 | IIEES SC | KRBR | Z | 15 | 0.86 | 2020-08-18 10:32:47 | 2020-08-19 10:05:00 | n |
| 156435 | IIEES SC | DAMV | Z | 13 | 1 | 2020-08-18 10:33:27 | 2020-08-19 10:05:00 | n |
| 156436 | IIEES SC | DAMV | Z | 18 | 0.74 | 2020-08-18 10:32:22 | 2020-08-19 10:05:00 | n |
| 156437 | IIEES SC | SHRO | Z | 2.3 | 1 | 2020-08-18 10:34:40 | 2020-08-19 10:05:00 | n |
| 156438 | IIEES SC | SHRO | Z | 6.4 | 1.14 | 2020-08-18 10:32:49 | 2020-08-19 10:05:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | KLNJ | Z | IP | I | 2020-08-18 10:31:18 | -0.6 | y | 133 | 43 | |
| IIEES SC | AHRM | N | IS | I | 2020-08-18 10:31:42 | 0.1 | y | 155 | 157 | |
| IIEES SC | AHRM | Z | IP | I | 2020-08-18 10:31:22 | -0.4 | y | 155 | 157 | |
| IIEES SC | AMIS | Z | IP | I | 2020-08-18 10:31:31 | 0 | y | 211 | 322 | |
| IIEES SC | BSR2 | Z | IP | I | 2020-08-18 10:31:48 | 7.2 | n | 4 | 289 | 273 |
| IIEES SC | GTMR | Z | IP | I | 2020-08-18 10:31:42 | -0.2 | y | 300 | 330 | |
| IIEES SC | NASN | Z | IP | I | 2020-08-18 10:31:49 | -0.2 | y | 355 | 35 | |
| IIEES SC | MEH | Z | IP | I | 2020-08-18 10:31:56 | 0.3 | y | 400 | 70 | |
| IIEES SC | KHMZ | Z | IP | I | 2020-08-18 10:31:56 | 0.6 | y | 400 | 351 | |
| IIEES SC | YZKH | Z | IP | I | 2020-08-18 10:32:00 | -0.8 | y | 444 | 57 | |
| IIEES SC | GHVR | Z | IP | I | 2020-08-18 10:32:05 | 0 | y | 478 | 7 | |
| IIEES SC | ASAO | Z | IP | I | 2020-08-18 10:32:06 | 0 | y | 489 | 353 | |
| IIEES SC | ILBA | Z | IP | I | 2020-08-18 10:32:13 | -2.5 | n | 4 | 567 | 312 |
| IIEES SC | KRBR | Z | IP | I | 2020-08-18 10:32:19 | 0.3 | y | 589 | 92 | |
| IIEES SC | DAMV | Z | IP | I | 2020-08-18 10:32:21 | -0.9 | y | 622 | 11 | |
| IIEES SC | SHRO | Z | IP | I | 2020-08-18 10:32:46 | -1 | y | 822 | 38 |
