Magnitude |
3.2 |
| Date & Time (UTC) | 2020-09-03 17:30:12.1 |
| Date & Time (Local) | 1399/6/13 22:00:12.1 |

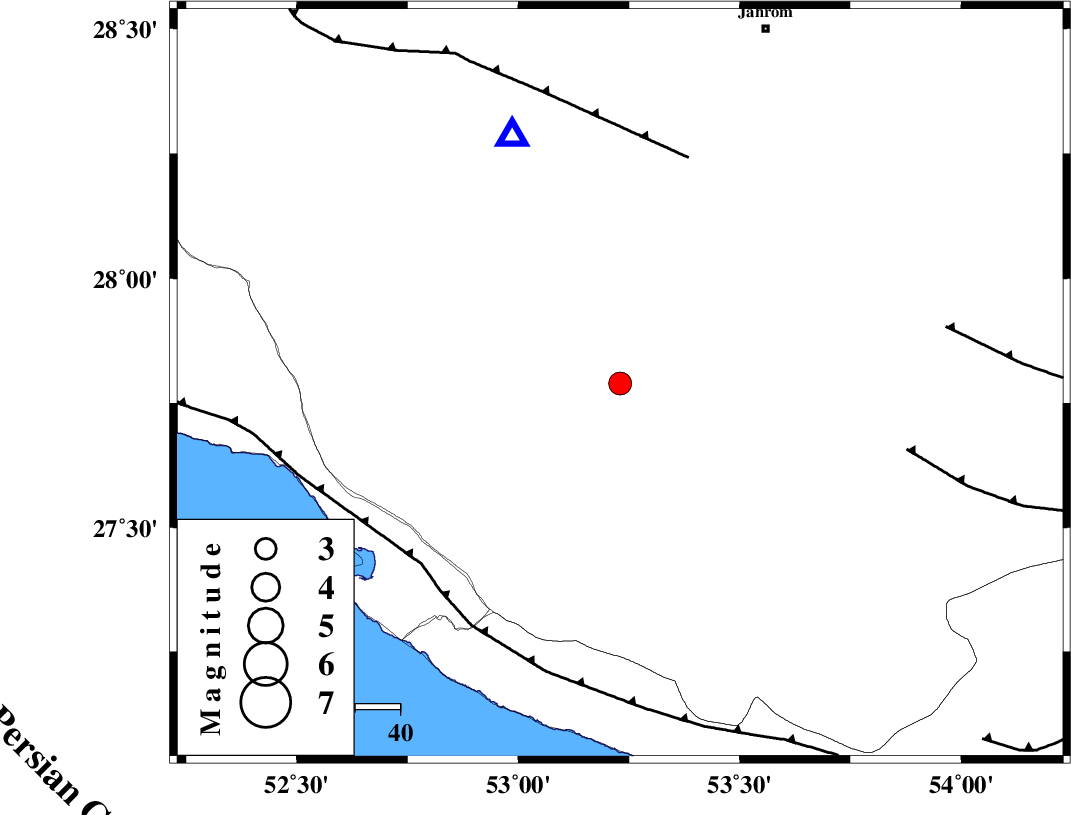

| Location | Lat:27.79 Lon: 53.23 |
| Region | Fars Province, 51 km North of Lamerd |
Nearest Cities |
|
| 21 km West of Khonj, Fars Province | |
| 33 km North East of Alamarvdasht, Fars Province | |
| 37 km North West of Fedagh, Fars Province | |
| 40 km North West of Ard, Fars Province | |
| 42 km South of Seyfabad, Fars Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| QIR_F (Length: 130 km) , Distance to epicenter: 53 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 60 km | |
| LAR_F (Length: 99 km) , Distance to epicenter: 65 km | |
| Number of Phases | 9 |
| RMS | 0.7 |
| Number of Stations | 8 |
| Error in Latitude | 6 km |
| Error in Longitude | 0 km |
| Error in Depth | 9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 156760 | IIEES SC | GHIR | Z | 0.2 | 1 | 2020-09-03 17:30:57 | 2020-09-05 11:09:00 | n |
| 156761 | IIEES SC | AHRM | Z | 43 | 1 | 2020-09-03 17:31:37 | 2020-09-05 11:09:00 | n |
| 156762 | IIEES SC | BNDS | Z | 82 | 1 | 2020-09-03 17:32:00 | 2020-09-05 11:09:00 | n |
| 156763 | IIEES SC | KLNJ | Z | 51 | 1 | 2020-09-03 17:32:26 | 2020-09-05 11:09:00 | n |
| 156764 | IIEES SC | KRBR | Z | 44 | 1 | 2020-09-03 17:32:27 | 2020-09-05 11:09:00 | n |
| 156765 | IIEES SC | YZKH | Z | 12 | 1 | 2020-09-03 17:32:19 | 2020-09-05 11:09:00 | n |
| 156766 | IIEES SC | NASN | Z | 8.2 | 1 | 2020-09-03 17:32:47 | 2020-09-05 11:09:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | LMD1 | Z | IP | I | 2020-09-03 17:30:18 | -2.2 | n | 4 | 44 | 187 |
| IIEES SC | GHIR | Z | IP | I | 2020-09-03 17:30:22 | -0.7 | y | 55 | 337 | |
| IIEES SC | AHRM | Z | IP | I | 2020-09-03 17:30:48 | 0.7 | y | 222 | 302 | |
| IIEES SC | BNDS | Z | IP | I | 2020-09-03 17:30:56 | -0.4 | y | 289 | 98 | |
| IIEES SC | KLNJ | Z | IP | I | 2020-09-03 17:31:09 | 0.6 | y | 389 | 336 | |
| IIEES SC | MEH | Z | IP | I | 2020-09-03 17:31:12 | -0.2 | y | 422 | 19 | |
| IIEES SC | KRBR | Z | IP | I | 2020-09-03 17:31:13 | 0.8 | y | 422 | 55 | |
| IIEES SC | YZKH | Z | IP | I | 2020-09-03 17:31:25 | -0.7 | y | 522 | 14 | |
| IIEES SC | NASN | Z | IP | I | 2020-09-03 17:31:28 | -1.1 | y | 556 | 356 |
