Magnitude |
3.3 |
| Date & Time (UTC) | 2020-09-28 03:30:26.9 |
| Date & Time (Local) | 1399/7/7 07:00:26.9 |

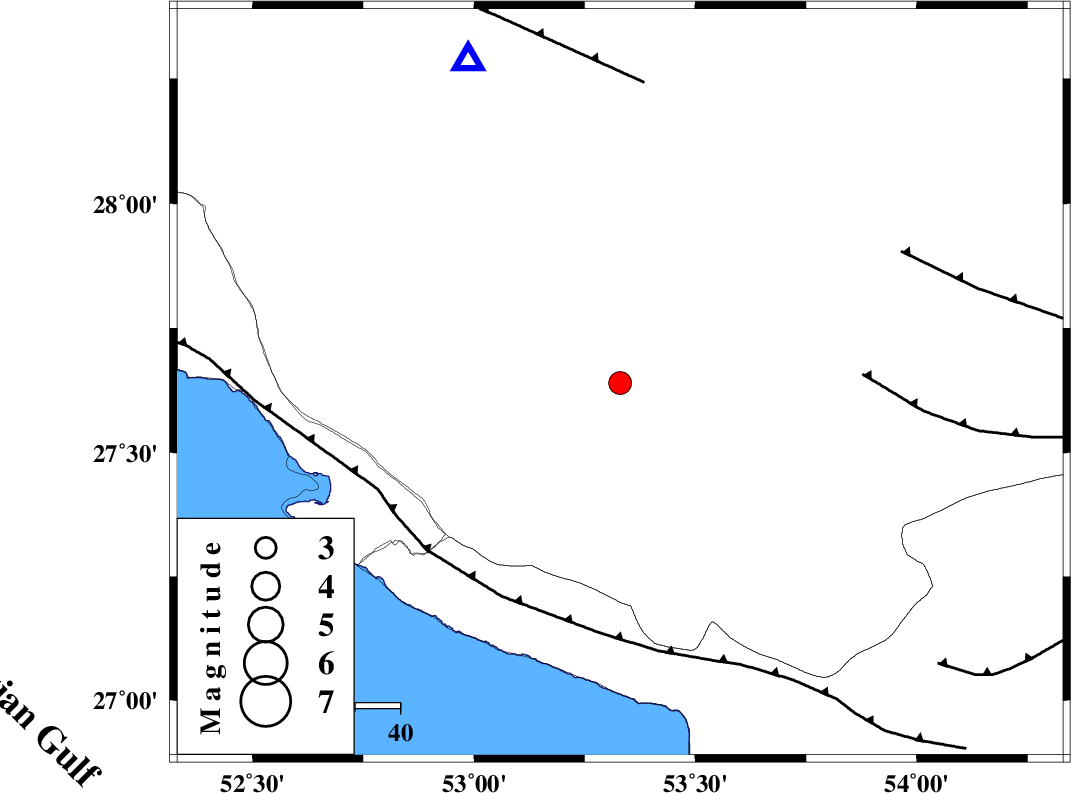

| Location | Lat:27.64 Lon: 53.33 |
| Region | Fars Province, 38 km North-East of Lamerd |
Nearest Cities |
|
| 20 km North West of Fedagh, Fars Province | |
| 27 km South of Khonj, Fars Province | |
| 30 km North West of Beyram, Fars Province | |
| 31 km West of Ard, Fars Province | |
| 36 km North East of Alamarvdasht, Fars Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| LAR_F (Length: 99 km) , Distance to epicenter: 54 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 55 km | |
| QIR_F (Length: 130 km) , Distance to epicenter: 67 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | 4 km |
| Error in Longitude | 0 km |
| Error in Depth | 9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 157806 | IIEES SC | LMD1 | Z | 2400 | 1 | 2020-09-28 03:30:49 | 2020-09-28 11:16:00 | n |
| 157807 | IIEES SC | AHRM | Z | 52 | 1 | 2020-09-28 03:31:48 | 2020-09-28 11:16:00 | n |
| 157808 | IIEES SC | KRBR | Z | 55 | 1 | 2020-09-28 03:32:40 | 2020-09-28 11:16:00 | n |
| 157809 | IIEES SC | YZKH | Z | 11 | 1 | 2020-09-28 03:33:09 | 2020-09-28 11:16:00 | n |
| 157810 | IIEES SC | TABS | Z | 6.5 | 1 | 2020-09-28 03:34:30 | 2020-09-28 11:16:00 | n |
| 157811 | IIEES SC | TABS | Z | 6.1 | 0.86 | 2020-09-28 03:32:22 | 2020-09-28 11:16:00 | n |
| 157812 | IIEES SC | ILBA | Z | 4 | 0.69 | 2020-09-28 03:32:33 | 2020-09-28 11:16:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | LMD1 | Z | IP | I | 2020-09-28 03:30:33 | 0 | y | 33 | 206 | |
| IIEES SC | AHRM | Z | IP | I | 2020-09-28 03:31:05 | 0 | y | 244 | 304 | |
| IIEES SC | BNDS | Z | IP | I | 2020-09-28 03:31:17 | 7.4 | n | 4 | 278 | 95 |
| IIEES SC | KRBR | Z | IP | I | 2020-09-28 03:31:28 | 0.1 | y | 422 | 52 | |
| IIEES SC | MEH | Z | IP | I | 2020-09-28 03:31:27 | -1.4 | y | 433 | 17 | |
| IIEES SC | YZKH | Z | IP | I | 2020-09-28 03:31:42 | -0.1 | y | 544 | 13 | |
| IIEES SC | TABS | Z | IP | I | 2020-09-28 03:32:08 | -0.6 | y | 756 | 29 | |
| IIEES SC | ILBA | Z | IP | I | 2020-09-28 03:32:32 | -1.1 | y | 956 | 314 |
