Magnitude |
4.8 |
| Date & Time (UTC) | 2020-11-29 04:24:27.4 |
| Date & Time (Local) | 1399/9/9 07:54:27.4 |

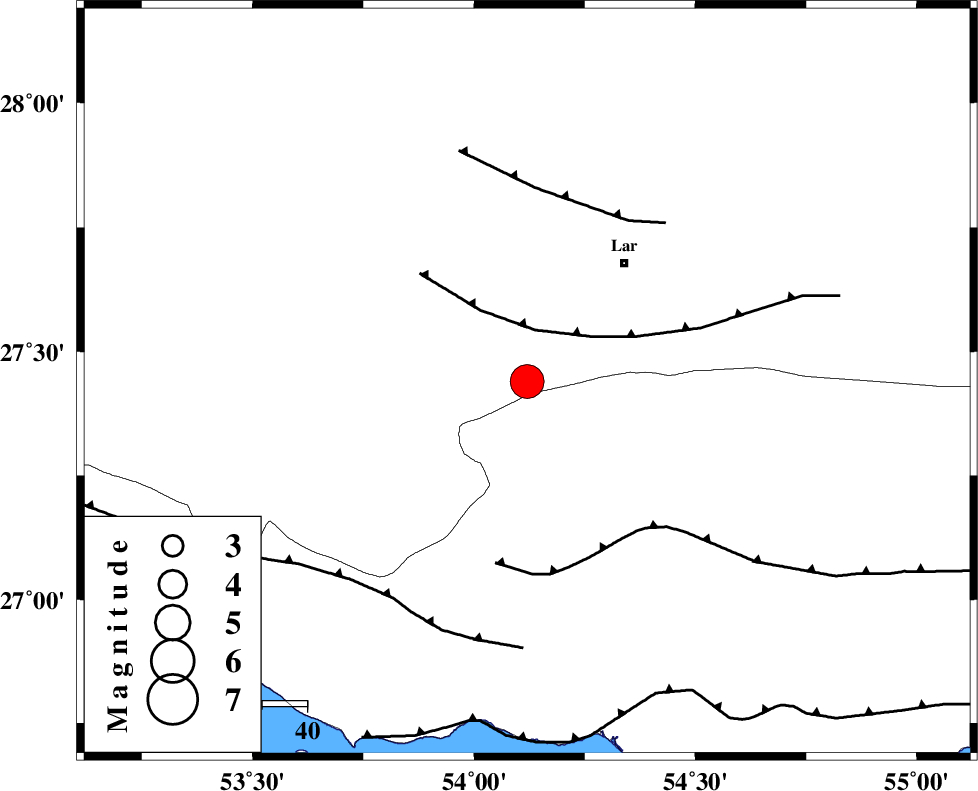

| Location | Lat:27.44 Lon: 54.12 |
| Region | Fars Province, 34 km South-West of Lar |
Nearest Cities |
|
| 11 km of Bagh, Fars Province | |
| 24 km South of Grash, Fars Province | |
| 34 km South West of Lar, Fars Province | |
| 36 km North West of Bastak, Hormozgan Province | |
| 37 km South East of Avaz, Fars Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| LAR_F (Length: 99 km) , Distance to epicenter: 12 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 41 km | |
| BERIZ_F (Length: 49 km) , Distance to epicenter: 43 km | |
| Number of Phases | 33 |
| RMS | 0.3 |
| Number of Stations | 34 |
| Error in Latitude | 1 km |
| Error in Longitude | 0 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 159609 | IIEES SC | BNDS | Z | 2400 | 1 | 2020-11-29 04:25:21 | 2020-11-29 10:36:00 | n |
| 159610 | IIEES SC | AHRM | Z | 610 | 1 | 2020-11-29 04:26:17 | 2020-11-29 10:36:00 | n |
| 159611 | IIEES SC | JSSH | Z | 1700 | 1 | 2020-11-29 04:26:14 | 2020-11-29 10:36:00 | n |
| 159612 | IIEES SC | YZKH | Z | 220 | 1 | 2020-11-29 04:27:10 | 2020-11-29 10:36:00 | n |
| 159613 | IIEES SC | AMIS | Z | 370 | 1 | 2020-11-29 04:27:25 | 2020-11-29 10:36:00 | n |
| 159614 | IIEES SC | CHBR | Z | 160 | 1 | 2020-11-29 04:27:18 | 2020-11-29 10:36:00 | n |
| 159615 | IIEES SC | BSRN | Z | 110 | 1 | 2020-11-29 04:28:16 | 2020-11-29 10:36:00 | n |
| 159616 | IIEES SC | GTMR | Z | 300 | 1 | 2020-11-29 04:27:34 | 2020-11-29 10:36:00 | n |
| 159617 | IIEES SC | TABS | Z | 120 | 1 | 2020-11-29 04:28:23 | 2020-11-29 10:36:00 | n |
| 159618 | IIEES SC | KHMZ | Z | 180 | 1 | 2020-11-29 04:27:44 | 2020-11-29 10:36:00 | n |
| 159619 | IIEES SC | SRVN | Z | 65 | 1 | 2020-11-29 04:27:45 | 2020-11-29 10:36:00 | n |
| 159620 | IIEES SC | GHVR | Z | 270 | 1 | 2020-11-29 04:27:50 | 2020-11-29 10:36:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | BNDS | Z | IP | I | 2020-11-29 04:25:00 | 0.2 | y | 200 | 91 | |
| IIEES SC | AHRM | Z | IP | I | 2020-11-29 04:25:15 | 0 | y | 322 | 300 | |
| IIEES SC | UOSS | Z | IP | I | 2020-11-29 04:25:18 | 0 | y | 344 | 143 | |
| IIEES SC | JSSH | Z | IP | I | 2020-11-29 04:25:21 | 0.4 | y | 366 | 118 | |
| IIEES SC | KLNJ | Z | IP | I | 2020-11-29 04:25:33 | -0.3 | y | 467 | 328 | |
| IIEES SC | YZKH | Z | IP | I | 2020-11-29 04:25:45 | 1.1 | y | 556 | 5 | |
| IIEES SC | AMIS | Z | IP | I | 2020-11-29 04:25:56 | -1.1 | y | 667 | 315 | |
| IIEES SC | CHBR | Z | IP | I | 2020-11-29 04:25:57 | -1 | y | 667 | 108 | |
| IIEES SC | BSRN | Z | IP | I | 2020-11-29 04:26:02 | -0.1 | y | 700 | 44 | |
| IIEES SC | GTMR | Z | IP | I | 2020-11-29 04:26:05 | -1.5 | y | 733 | 319 | |
| IIEES SC | TABS | Z | IP | I | 2020-11-29 04:26:08 | 0.4 | y | 745 | 23 | |
| IIEES SC | KHMZ | Z | IP | I | 2020-11-29 04:26:15 | -0.5 | y | 800 | 330 | |
| IIEES SC | SRVN | Z | IP | I | 2020-11-29 04:26:16 | -0.5 | y | 822 | 90 | |
| IIEES SC | GHVR | Z | IP | I | 2020-11-29 04:26:18 | 0.1 | y | 822 | 341 | |
| IIEES SC | ASAO | Z | IP | I | 2020-11-29 04:26:24 | -0.4 | y | 878 | 334 | |
| IIEES SC | ANJ | Z | IP | I | 2020-11-29 04:26:26 | -0.1 | y | 889 | 359 | |
| IIEES SC | SHRT | Z | IP | I | 2020-11-29 04:26:29 | 1.3 | y | 911 | 41 | |
| IIEES SC | DAMV | Z | IP | I | 2020-11-29 04:26:31 | -0.4 | y | 934 | 347 | |
| IIEES SC | SHRO | Z | IP | I | 2020-11-29 04:26:36 | 0.9 | y | 967 | 11 | |
| IIEES SC | CHTH | Z | IP | I | 2020-11-29 04:26:36 | -1 | y | 978 | 343 | |
| IIEES SC | GLO | Z | IP | I | 2020-11-29 04:26:42 | 1.8 | y | 1000 | 358 | |
| IIEES SC | ABGH | Z | IP | I | 2020-11-29 04:26:44 | 0.5 | y | 1034 | 4 | |
| IIEES SC | SBZV | Z | IP | I | 2020-11-29 04:26:45 | -0.5 | y | 1045 | 18 | |
| IIEES SC | AKL | Z | IP | I | 2020-11-29 04:26:53 | 0.5 | y | 1100 | 23 | |
| IIEES SC | GIDE | Z | IP | I | 2020-11-29 04:26:55 | -0.2 | y | 1123 | 339 | |
| IIEES SC | ZNJK | Z | IP | I | 2020-11-29 04:26:56 | -1.3 | y | 1145 | 333 | |
| IIEES SC | MRVT | Z | IP | I | 2020-11-29 04:26:58 | 0.5 | y | 1145 | 9 | |
| IIEES SC | BJRD | Z | IP | I | 2020-11-29 04:27:04 | 2 | y | 1178 | 15 | |
| IIEES SC | AZR | Z | IP | I | 2020-11-29 04:27:24 | -1.5 | y | 1367 | 326 | |
| IIEES SC | GRMI | Z | IP | I | 2020-11-29 04:27:27 | -0.5 | y | 1390 | 335 | |
| IIEES SC | MRD | Z | IP | I | 2020-11-29 04:27:37 | -1.2 | y | 1478 | 328 | |
| IIEES SC | KBL | Z | IP | I | 2020-11-29 04:27:59 | 1.4 | y | 1634 | 61 | |
| IIEES SC | GNI | Z | IP | I | 2020-11-29 04:28:01 | 0.6 | y | 1656 | 328 |
