Magnitude |
3.3 |
| Date & Time (UTC) | 2020-12-15 17:52:27.2 |
| Date & Time (Local) | 1399/9/25 21:22:27.2 |

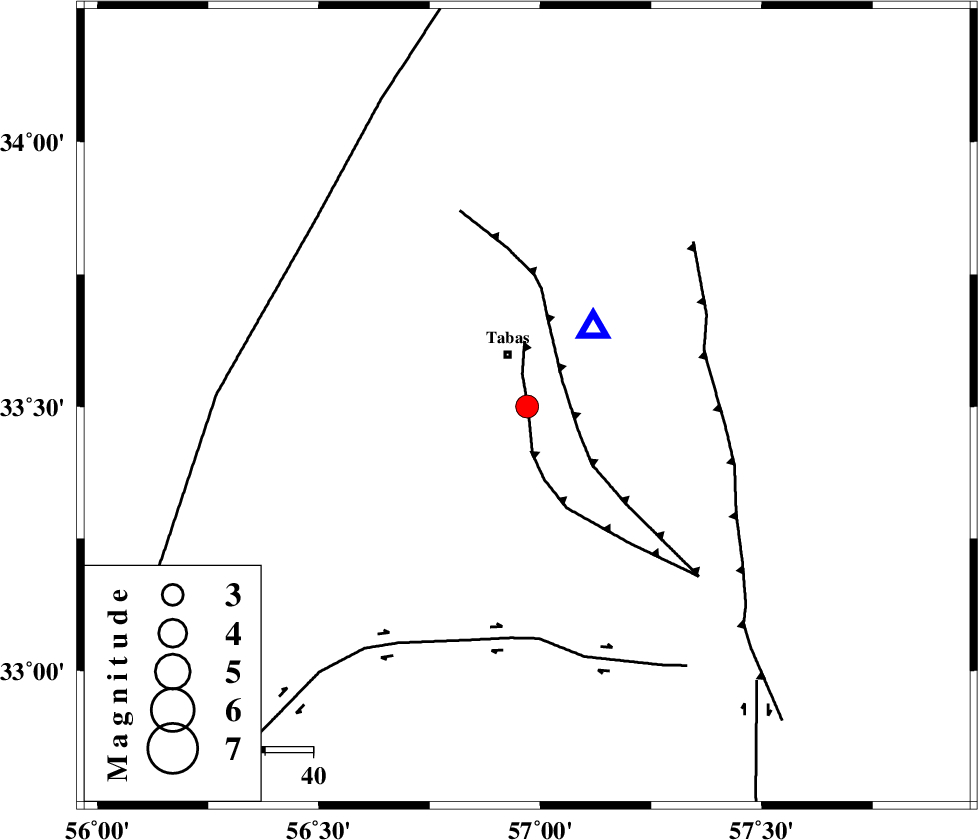

| Location | Lat:33.5 Lon: 56.97 |
| Region | Yazd Province, 12 km of Tabas |
Nearest Cities |
|
| 7 km North of Kerit, Yazd Province | |
| 8 km of Oshtoqran, Yazd Province | |
| 12 km of Tabas, Yazd Province | |
| 30 km South East of Jokhvah, Yazd Province | |
| 44 km South West of Arsak, Khorasan(center) Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| TABAS_F2 (Length: 67 km) , Distance to epicenter: 0 km | |
| TABAS_F1 (Length: 91 km) , Distance to epicenter: 9 km | |
| ESFARDIAR_F (Length: 94 km) , Distance to epicenter: 39 km | |
| Number of Phases | 9 |
| RMS | 0.5 |
| Number of Stations | 9 |
| Error in Latitude | 2 km |
| Error in Longitude | 0 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 160046 | IIEES SC | TABS | Z | 4500 | 1 | 2020-12-15 17:52:42 | 2020-12-19 01:33:00 | n |
| 160047 | IIEES SC | YZKH | Z | 170 | 1 | 2020-12-15 17:53:54 | 2020-12-19 01:33:00 | n |
| 160048 | IIEES SC | BSRN | Z | 56 | 1 | 2020-12-15 17:53:46 | 2020-12-19 01:33:00 | n |
| 160049 | IIEES SC | SHRO | Z | 2.6 | 1 | 2020-12-15 17:54:37 | 2020-12-19 01:33:00 | n |
| 160050 | IIEES SC | SHRT | Z | 40 | 1 | 2020-12-15 17:54:10 | 2020-12-19 01:33:00 | n |
| 160051 | IIEES SC | SBZV | Z | 40 | 1 | 2020-12-15 17:54:06 | 2020-12-19 01:33:00 | n |
| 160052 | IIEES SC | TBJM | Z | 100 | 1 | 2020-12-15 17:54:20 | 2020-12-19 01:33:00 | n |
| 160053 | IIEES SC | KRBR | Z | 72 | 1 | 2020-12-15 17:54:28 | 2020-12-19 01:33:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | TABS | Z | IP | I | 2020-12-15 17:52:31 | -0.6 | y | 22 | 39 | |
| IIEES SC | YZKH | Z | IP | I | 2020-12-15 17:53:06 | -0.4 | y | 255 | 241 | |
| IIEES SC | BSRN | Z | IP | I | 2020-12-15 17:53:08 | -0.3 | y | 266 | 130 | |
| IIEES SC | SHRO | Z | IP | I | 2020-12-15 17:53:11 | -0.4 | y | 289 | 343 | |
| IIEES SC | SHRT | Z | IP | I | 2020-12-15 17:53:13 | 0 | y | 311 | 87 | |
| IIEES SC | MEH | Z | IP | I | 2020-12-15 17:53:16 | 0.4 | y | 322 | 223 | |
| IIEES SC | SBZV | Z | IP | I | 2020-12-15 17:53:16 | 0.6 | y | 322 | 10 | |
| IIEES SC | TBJM | Z | IP | I | 2020-12-15 17:53:22 | 1.1 | y | 366 | 58 | |
| IIEES SC | KRBR | Z | IP | I | 2020-12-15 17:53:24 | 0.1 | y | 389 | 183 |
