Magnitude |
4.1 |
| Date & Time (UTC) | 2020-12-24 11:38:28.8 |
| Date & Time (Local) | 1399/10/4 15:08:28.8 |

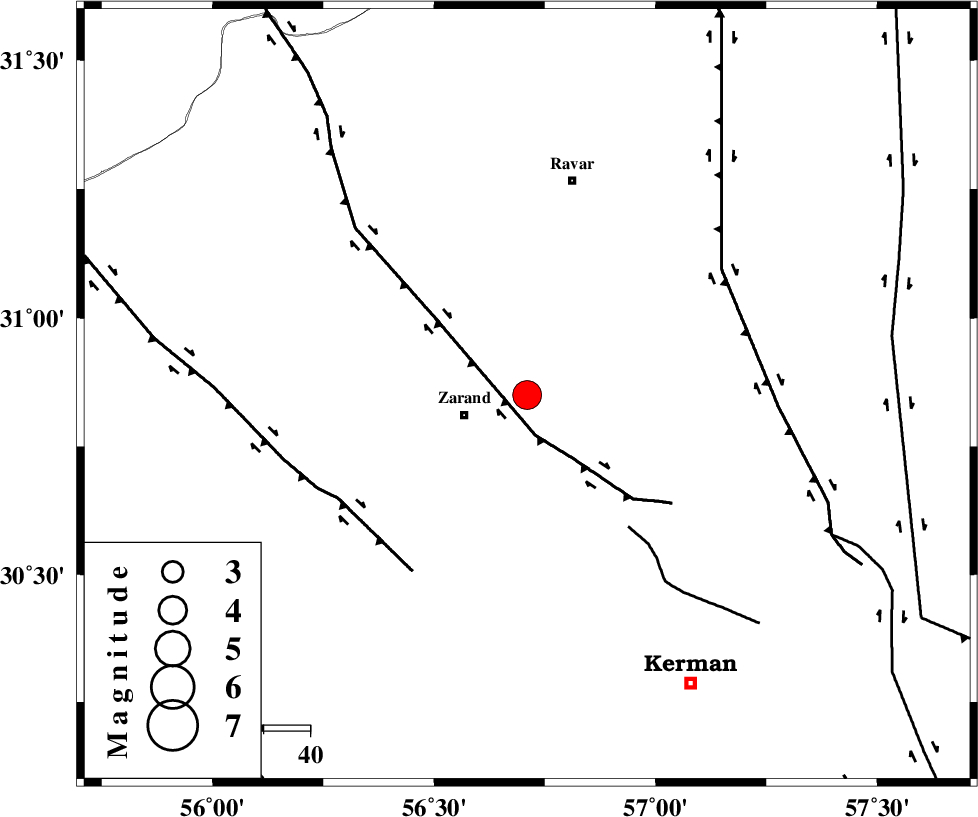

| Location | Lat:30.85 Lon: 56.71 |
| Region | Kerman Province, 14 km -East of Zarand |
Nearest Cities |
|
| 7 km North of Hatkan, Kerman Province | |
| 14 km North East of Zarand, Kerman Province | |
| 14 km North of Bahaabad, Kerman Province | |
| 16 km North of Khankuk, Kerman Province | |
| 18 km North East of Mohammadabad, Kerman Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 9 km | |
| CHATRUD_F (Length: 37 km) , Distance to epicenter: 36 km | |
| DARIVAN_F (Length: 131 km) , Distance to epicenter: 46 km | |
| Number of Phases | 14 |
| RMS | 0.2 |
| Number of Stations | 11 |
| Error in Latitude | 1 km |
| Error in Longitude | 0 km |
| Error in Depth | 302 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 160343 | IIEES SC | BSRN | Z | 300 | 1 | 2020-12-24 11:39:54 | 2020-12-29 11:21:00 | n |
| 160344 | IIEES SC | YZKH | Z | 770 | 1 | 2020-12-24 11:39:47 | 2020-12-29 11:21:00 | n |
| 160345 | IIEES SC | TABS | Z | 460 | 1 | 2020-12-24 11:40:12 | 2020-12-29 11:21:00 | n |
| 160346 | IIEES SC | BNDS | Z | 140 | 1 | 2020-12-24 11:40:25 | 2020-12-29 11:21:00 | n |
| 160347 | IIEES SC | SHRT | Z | 75 | 1 | 2020-12-24 11:40:58 | 2020-12-29 11:21:00 | n |
| 160348 | IIEES SC | SHRO | Z | 2.3 | 1 | 2020-12-24 11:41:27 | 2020-12-29 11:21:00 | n |
| 160349 | IIEES SC | TBJM | Z | 86 | 1 | 2020-12-24 11:42:00 | 2020-12-29 11:21:00 | n |
| 160350 | IIEES SC | SBZV | Z | 97 | 1 | 2020-12-24 11:41:48 | 2020-12-29 11:21:00 | n |
| 160351 | IIEES SC | SRVN | Z | 40 | 1 | 2020-12-24 11:42:01 | 2020-12-29 11:21:00 | n |
| 160352 | IIEES SC | GLO | Z | 210 | 1 | 2020-12-24 11:42:05 | 2020-12-29 11:21:00 | n |
| 160353 | IIEES SC | MRVT | Z | 30 | 1 | 2020-12-24 11:42:39 | 2020-12-29 11:21:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | KRBR | Z | IP | I | 2020-12-24 11:38:42 | -3.4 | n | 4 | 100 | 177 |
| IIEES SC | BSRN | Z | IP | I | 2020-12-24 11:39:08 | -0.7 | y | 266 | 62 | |
| IIEES SC | YZKH | Z | IP | I | 2020-12-24 11:39:09 | 0 | y | 266 | 310 | |
| IIEES SC | TABS | Z | IP | I | 2020-12-24 11:39:15 | 0.1 | y | 311 | 7 | |
| IIEES SC | BNDS | Z | IP | I | 2020-12-24 11:39:24 | -0.1 | y | 389 | 188 | |
| IIEES SC | ZHSF | Z | IP | I | 2020-12-24 11:39:28 | 0.1 | n | 4 | 411 | 109 |
| IIEES SC | SHRT | Z | IP | I | 2020-12-24 11:39:33 | -0.3 | y | 455 | 47 | |
| IIEES SC | KLNJ | Z | IP | I | 2020-12-24 11:39:38 | 0.6 | n | 4 | 489 | 272 |
| IIEES SC | SHRO | Z | IP | I | 2020-12-24 11:39:48 | 0.1 | y | 578 | 354 | |
| IIEES SC | TBJM | Z | IP | I | 2020-12-24 11:39:50 | -0.8 | y | 600 | 35 | |
| IIEES SC | SBZV | Z | IP | I | 2020-12-24 11:39:54 | -0.1 | y | 622 | 8 | |
| IIEES SC | SRVN | Z | IP | I | 2020-12-24 11:40:01 | 0.4 | y | 678 | 125 | |
| IIEES SC | GLO | Z | IP | I | 2020-12-24 11:40:02 | 0.2 | y | 678 | 337 | |
| IIEES SC | MRVT | Z | IP | I | 2020-12-24 11:40:10 | -0.3 | y | 756 | 356 |
