Magnitude |
3.6 |
| Date & Time (UTC) | 2021-04-12 08:44:55.0 |
| Date & Time (Local) | 1400/1/23 13:14:55.0 |

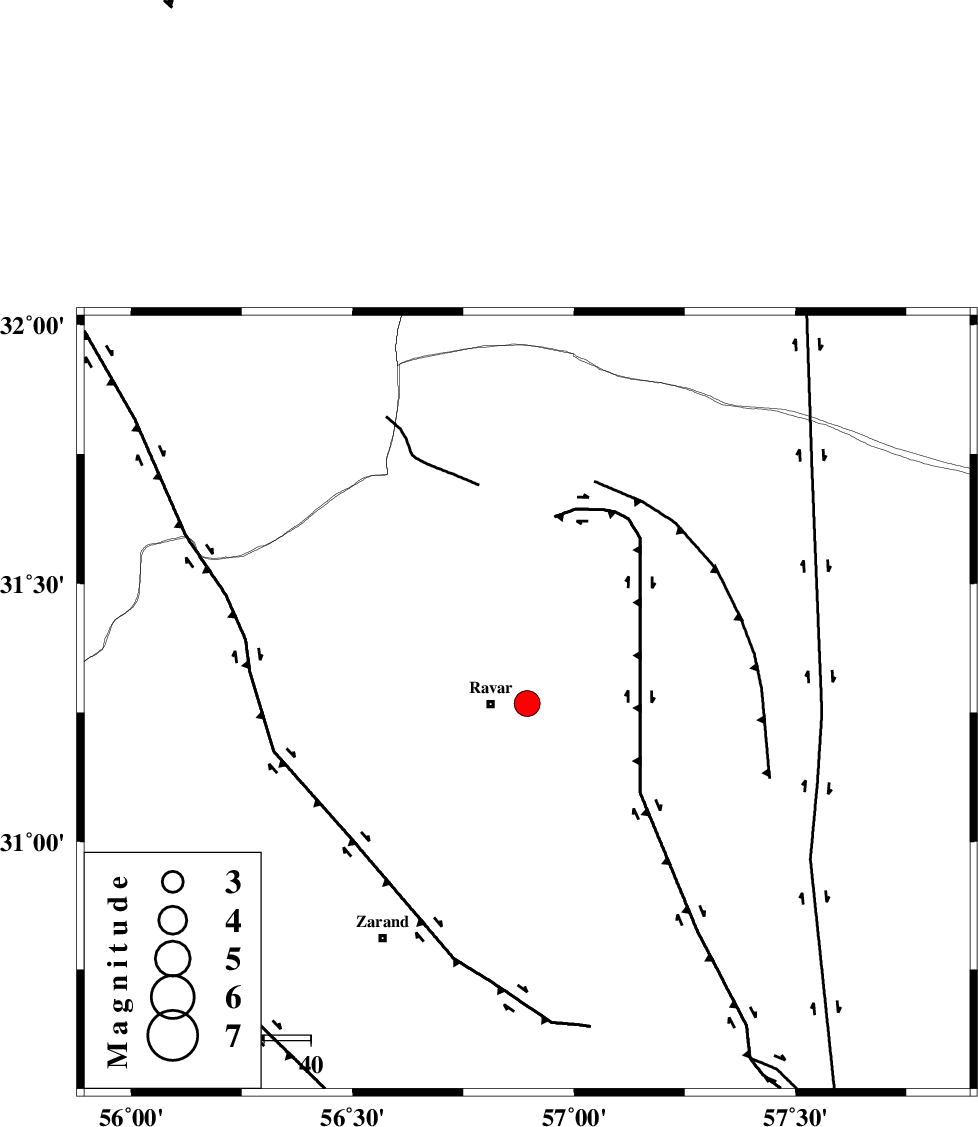

| Location | Lat:31.268 Lon: 56.894 |
| Region | Kerman Province, 8 km of Ravar |
Nearest Cities |
|
| 8 km North of Ravar, Kerman Province | |
| 11 km of Dehali, Kerman Province | |
| 38 km North East of Ahmadi, Kerman Province | |
| 39 km North East of Dasht-e khak, Kerman Province | |
| 47 km North East of Toghroljerd, Kerman Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 31 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 48 km | |
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 63 km | |
| Number of Phases | 18 |
| RMS | 0.5 |
| Number of Stations | 18 |
| Error in Latitude | 1.6 km |
| Error in Longitude | 1.6 km |
| Error in Depth | 12 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 162554 | IIEES SC | KRBR | Z | 2 | 1 | 2021-04-12 08:45:18 | 2021-04-12 09:09:00 | n |
| 162555 | IIEES SC | BSRN | Z | 0.6 | 1 | 2021-04-12 08:45:30 | 2021-04-12 09:09:00 | n |
| 162556 | IIEES SC | TABS | Z | 0.8 | 1 | 2021-04-12 08:45:35 | 2021-04-12 09:09:00 | n |
| 162557 | IIEES SC | SHRT | Z | 0.2 | 1 | 2021-04-12 08:45:55 | 2021-04-12 09:09:00 | n |
| 162558 | IIEES SC | NASN | Z | 0.2 | 1 | 2021-04-12 08:45:55 | 2021-04-12 09:09:00 | n |
| 162559 | IIEES SC | BNDS | Z | 0.2 | 1 | 2021-04-12 08:45:57 | 2021-04-12 09:09:00 | n |
| 162560 | IIEES SC | KLNJ | Z | 0.09 | 1 | 2021-04-12 08:46:06 | 2021-04-12 09:09:00 | n |
| 162561 | IIEES SC | ABGH | Z | 0.02 | 1 | 2021-04-12 08:46:23 | 2021-04-12 09:09:00 | n |
| 162562 | IIEES SC | SRVN | Z | 0.04 | 1 | 2021-04-12 08:46:28 | 2021-04-12 09:09:00 | n |
| 162563 | IIEES SC | MRVT | Z | 0.04 | 1 | 2021-04-12 08:46:31 | 2021-04-12 09:09:00 | n |
| 162564 | IIEES SC | BJRD | Z | 0.02 | 1 | 2021-04-12 08:46:32 | 2021-04-12 09:09:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | KRBR | Z | EPg | E | 2021-04-12 08:45:18 | -0.1 | y | 0 | 143 | 185 |
| IIEES SC | MEH | Z | EPn | E | 2021-04-12 08:45:29 | -0.7 | y | 0 | 218 | 274 |
| IIEES SC | BSRN | Z | EPn | E | 2021-04-12 08:45:30 | -0.6 | y | 0 | 225 | 70 |
| IIEES SC | YZKH | Z | EPn | E | 2021-04-12 08:45:33 | -0.9 | y | 0 | 251 | 300 |
| IIEES SC | TABS | Z | EPn | E | 2021-04-12 08:45:35 | 0 | y | 0 | 265 | 5 |
| IIEES SC | SHRT | Z | EPn | E | 2021-04-12 08:45:55 | 0.6 | y | 0 | 414 | 50 |
| IIEES SC | NASN | Z | EPn | E | 2021-04-12 08:45:55 | -0.4 | y | 0 | 422 | 294 |
| IIEES SC | BNDS | Z | EPn | E | 2021-04-12 08:45:57 | 0.8 | y | 0 | 434 | 189 |
| IIEES SC | GHIR | Z | EPn | E | 2021-04-12 08:46:05 | -0.1 | y | 0 | 502 | 229 |
| IIEES SC | KLNJ | Z | EPn | E | 2021-04-12 08:46:06 | 0.5 | y | 0 | 506 | 267 |
| IIEES SC | SHRO | Z | EPn | E | 2021-04-12 08:46:08 | -0.3 | y | 0 | 532 | 351 |
| IIEES SC | TBJM | Z | EPn | E | 2021-04-12 08:46:11 | 0.2 | y | 0 | 547 | 36 |
| IIEES SC | ABGH | Z | EPn | E | 2021-04-12 08:46:23 | 0.9 | y | 0 | 636 | 342 |
| IIEES SC | GHVR | Z | EPn | E | 2021-04-12 08:46:21 | -0.2 | y | 0 | 638 | 304 |
| IIEES SC | GLO | Z | EPn | E | 2021-04-12 08:46:23 | 0.2 | y | 0 | 646 | 334 |
| IIEES SC | SRVN | Z | EPn | E | 2021-04-12 08:46:28 | -0.1 | y | 0 | 685 | 129 |
| IIEES SC | MRVT | Z | EPn | E | 2021-04-12 08:46:31 | -0.1 | y | 0 | 713 | 354 |
| IIEES SC | BJRD | Z | EPn | E | 2021-04-12 08:46:32 | 0.5 | y | 0 | 715 | 4 |
