eventspec – IIEES Earthquake Process Program

Magnitude	3
Date & Time (UTC)	2021-09-26 16:53:59.0
Date & Time (Local)	1400/7/4 20:23:59.0

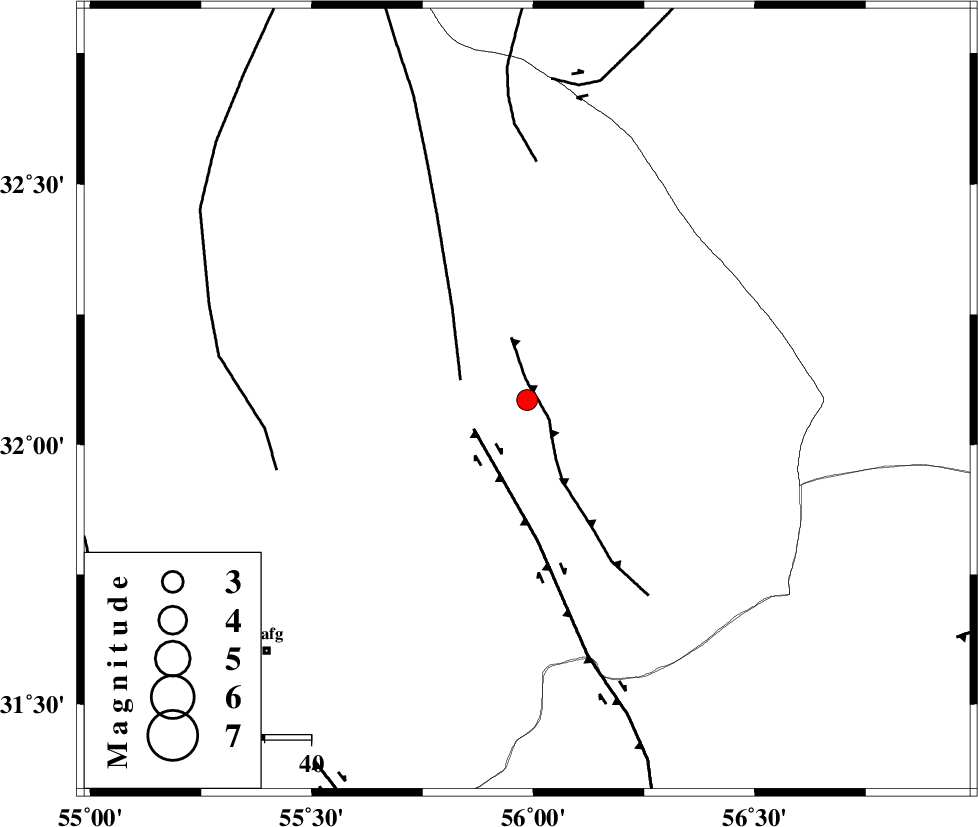

Location	Lat:32.086 Lon: 55.986
Region	Yazd Province, 77 km North-East of Bafq
Nearest Cities
	24 km North of Behabad, Yazd Province
	40 km North of Benestan, Yazd Province
	43 km North East of Kushk, Yazd Province
	52 km North West of Asfih, Yazd Province
	68 km North of Basab, Yazd Province
Depth	12 km
Agency
Faults within 150 km:
	JAFARABAD_F (Length: 60 km) , Distance to epicenter: 2 km
	KUHBANAN_F (Length: 189 km) , Distance to epicenter: 13 km
	SARBALA_F (Length: 92 km) , Distance to epicenter: 15 km
Number of Phases	8
RMS	0.3
Number of Stations	8
Error in Latitude	1.8 km
Error in Longitude	1.8 km
Error in Depth	5.4 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
165343	IIEES SC	YZKH	Z	0.6	1	2021-09-26 16:54:21	2021-09-28 06:38:00	n
165344	IIEES SC	NASN	Z	0.07	1	2021-09-26 16:54:45	2021-09-28 06:38:00	n
165345	IIEES SC	SHRO	Z	0.04	1	2021-09-26 16:55:01	2021-09-28 06:38:00	n

Agency	Station	Component	Phase Type	Phase Quality	Arrival Time	Time Residual	Loc. Flag	Distance	Azimuth
IIEES SC	YZKH	Z	EPg	E	2021-09-26 16:54:21	0.1	y	136	284
IIEES SC	MEH	Z	EPg	E	2021-09-26 16:54:23	-0.3	y	151	239
IIEES SC	TABS	Z	EPn	E	2021-09-26 16:54:32	0.3	y	203	31
IIEES SC	KRBR	Z	EPn	E	2021-09-26 16:54:37	0	y	245	162
IIEES SC	KRBR	Z	ES	E	2021-09-26 16:55:06	0.3	y	245	162
IIEES SC	BSRN	Z	EPn	E	2021-09-26 16:54:43	-0.7	y	297	93
IIEES SC	NASN	Z	EPn	E	2021-09-26 16:54:45	-0.3	y	309	285
IIEES SC	SHRO	Z	EPn	E	2021-09-26 16:55:01	0.1	y	435	0
