Magnitude |
3.5 |
| Date & Time (UTC) | 2021-10-20 22:16:35.9 |
| Date & Time (Local) | 1400/7/29 01:46:35.9 |

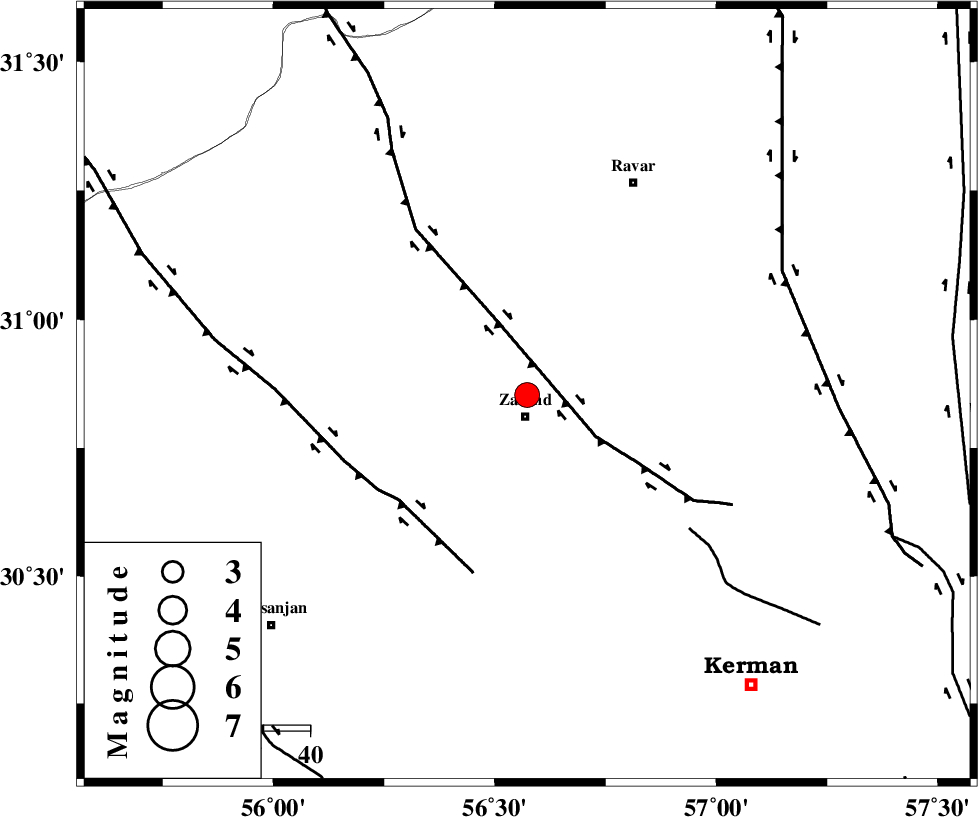

| Location | Lat:30.853 Lon: 56.573 |
| Region | Kerman Province, 5 km of Zarand |
Nearest Cities |
|
| 5 km North of Zarand, Kerman Province | |
| 8 km North of Mohammadabad, Kerman Province | |
| 15 km North of Bahaabad, Kerman Province | |
| 18 km South of Ahmadi, Kerman Province | |
| 20 km North West of Hatkan, Kerman Province | |
| Depth | 9 km |
| Agency | |
Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 17 km | |
| DARIVAN_F (Length: 131 km) , Distance to epicenter: 36 km | |
| CHATRUD_F (Length: 37 km) , Distance to epicenter: 45 km | |
| Number of Phases | 11 |
| RMS | 0.3 |
| Number of Stations | 11 |
| Error in Latitude | 1.6 km |
| Error in Longitude | 1.6 km |
| Error in Depth | 7.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 165935 | IIEES SC | KRBR | Z | 3 | 1 | 2021-10-20 22:16:53 | 2021-10-23 07:15:00 | n |
| 165936 | IIEES SC | MEH | Z | 0.3 | 1 | 2021-10-20 22:17:07 | 2021-10-23 07:15:00 | n |
| 165937 | IIEES SC | YZKH | Z | 0.6 | 1 | 2021-10-20 22:17:15 | 2021-10-23 07:15:00 | n |
| 165938 | IIEES SC | TABS | Z | 0.3 | 1 | 2021-10-20 22:17:23 | 2021-10-23 07:15:00 | n |
| 165939 | IIEES SC | NASN | Z | 0.09 | 1 | 2021-10-20 22:17:35 | 2021-10-23 07:15:00 | n |
| 165940 | IIEES SC | SHRT | Z | 0.08 | 1 | 2021-10-20 22:17:42 | 2021-10-23 07:15:00 | n |
| 165941 | IIEES SC | KLNJ | Z | 0.06 | 1 | 2021-10-20 22:17:44 | 2021-10-23 07:15:00 | n |
| 165942 | IIEES SC | SHRO | Z | 0.09 | 1 | 2021-10-20 22:17:55 | 2021-10-23 07:15:00 | n |
| 165943 | IIEES SC | TBJM | Z | 0.07 | 1 | 2021-10-20 22:17:59 | 2021-10-23 07:15:00 | n |
| 165944 | IIEES SC | MRVT | Z | 0.03 | 1 | 2021-10-20 22:18:18 | 2021-10-23 07:15:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | KRBR | Z | EPg | E | 2021-10-20 22:16:53 | 0 | y | 0 | 98 | 169 |
| IIEES SC | MEH | Z | EPg | E | 2021-10-20 22:17:07 | -0.1 | y | 0 | 196 | 288 |
| IIEES SC | YZKH | Z | EPn | E | 2021-10-20 22:17:15 | -0.5 | y | 0 | 254 | 312 |
| IIEES SC | TABS | Z | EPn | E | 2021-10-20 22:17:23 | 0.3 | y | 0 | 314 | 9 |
| IIEES SC | NASN | Z | EPn | E | 2021-10-20 22:17:35 | -0.4 | y | 0 | 417 | 301 |
| IIEES SC | ZHSF | Z | EPn | E | 2021-10-20 22:17:40 | 2.9 | n | 4 | 426 | 109 |
| IIEES SC | SHRT | Z | EPn | E | 2021-10-20 22:17:42 | -0.1 | y | 0 | 468 | 49 |
| IIEES SC | KLNJ | Z | EPn | E | 2021-10-20 22:17:44 | 0.6 | y | 0 | 476 | 272 |
| IIEES SC | SHRO | Z | EPn | E | 2021-10-20 22:17:55 | -0.2 | y | 0 | 574 | 355 |
| IIEES SC | TBJM | Z | EPn | E | 2021-10-20 22:17:59 | -0.1 | y | 0 | 602 | 36 |
| IIEES SC | MRVT | Z | EPn | E | 2021-10-20 22:18:18 | 0.6 | y | 0 | 756 | 357 |
