Magnitude |
3.3 |
| Date & Time (UTC) | 2022-02-17 09:35:40.3 |
| Date & Time (Local) | 1400/11/28 13:05:40.3 |
| Location | Lat:32.788 Lon: 48.233 |
| Region | Khoozestan Province, 38 km North-West of Andimeshk |
Nearest Cities |
|
| 4 km North of Bidruyeh, Khoozestan Province | |
| 9 km North of Sorkhakan, Khoozestan Province | |
| 12 km North of Hoseinieh, Khoozestan Province | |
| 38 km North West of Andimeshk, Khoozestan Province | |
| 48 km North West of Dezful, Khoozestan Province | |
| Depth | 10 km |
| Agency | |

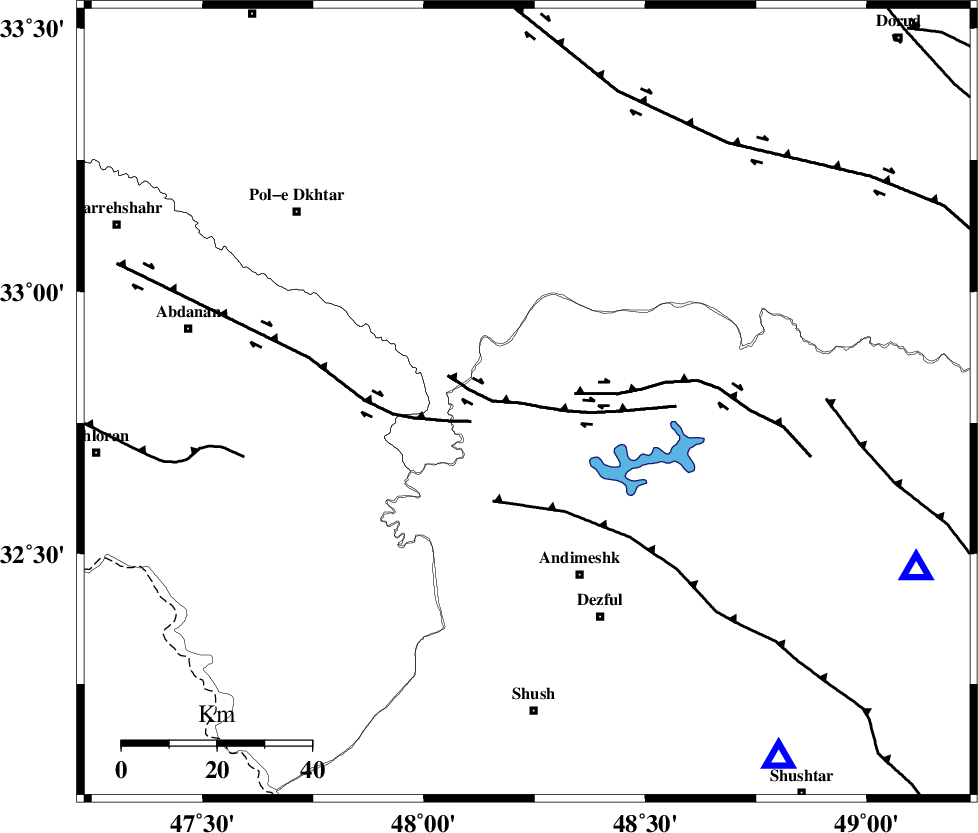

Faults within 150 km: |
|
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 1 km | |
| BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 10 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 12 km | |
| Number of Phases | 13 |
| RMS | 0.3 |
| Number of Stations | 13 |
| Error in Latitude | 1.1 km |
| Error in Longitude | 1.1 km |
| Error in Depth | 4.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 169121 | IIEES SC | GTMR | Z | 2 | 1 | 2022-02-17 09:35:56 | 2022-03-02 07:28:00 | n |
| 169122 | IIEES SC | KHMZ | Z | 0.6 | 1 | 2022-02-17 09:36:12 | 2022-03-02 07:28:00 | n |
| 169123 | IIEES SC | ILBA | Z | 0.4 | 1 | 2022-02-17 09:36:14 | 2022-03-02 07:28:00 | n |
| 169124 | IIEES SC | ASAO | Z | 0.3 | 1 | 2022-02-17 09:36:21 | 2022-03-02 07:28:00 | n |
| 169125 | IIEES SC | SNGE | Z | 0.2 | 1 | 2022-02-17 09:36:21 | 2022-03-02 07:28:00 | n |
| 169126 | IIEES SC | GHVR | Z | 0.3 | 1 | 2022-02-17 09:36:30 | 2022-03-02 07:28:00 | n |
| 169127 | IIEES SC | KLNJ | Z | 0.2 | 1 | 2022-02-17 09:36:35 | 2022-03-02 07:28:00 | n |
| 169128 | IIEES SC | NASN | Z | 0.04 | 1 | 2022-02-17 09:36:41 | 2022-03-02 07:28:00 | n |
| 169129 | IIEES SC | ZNJK | Z | 0.03 | 1 | 2022-02-17 09:36:42 | 2022-03-02 07:28:00 | n |
| 169130 | IIEES SC | GZV | Z | 0.1 | 1 | 2022-02-17 09:36:42 | 2022-03-02 07:28:00 | n |
| 169131 | IIEES SC | SRSL | Z | 0.07 | 1 | 2022-02-17 09:36:44 | 2022-03-02 07:28:00 | n |
| 169132 | IIEES SC | DAMV | Z | 0.07 | 1 | 2022-02-17 09:36:46 | 2022-03-02 07:28:00 | n |
| 169133 | IIEES SC | GRMI | Z | 0.009 | 1 | 2022-02-17 09:37:11 | 2022-03-02 07:28:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | GTMR | Z | EPg | E | 2022-02-17 09:35:56 | 0.5 | y | 0 | 90 | 113 |
| IIEES SC | KHMZ | Z | EPg | E | 2022-02-17 09:36:12 | 0.9 | y | 0 | 193 | 57 |
| IIEES SC | ILBA | Z | EPn | E | 2022-02-17 09:36:14 | 0.1 | y | 0 | 210 | 296 |
| IIEES SC | ASAO | Z | EPn | E | 2022-02-17 09:36:21 | 0.5 | y | 0 | 256 | 40 |
| IIEES SC | SNGE | Z | EPn | E | 2022-02-17 09:36:21 | -0.4 | y | 0 | 268 | 342 |
| IIEES SC | GHVR | Z | EPn | E | 2022-02-17 09:36:30 | 0.2 | y | 0 | 337 | 56 |
| IIEES SC | KLNJ | Z | EPn | E | 2022-02-17 09:36:35 | -0.2 | y | 0 | 374 | 122 |
| IIEES SC | NASN | Z | EPn | E | 2022-02-17 09:36:41 | -0.2 | y | 0 | 429 | 90 |
| IIEES SC | ZNJK | Z | EPn | E | 2022-02-17 09:36:42 | 0.2 | y | 0 | 433 | 5 |
| IIEES SC | GZV | Z | EPn | E | 2022-02-17 09:36:42 | -0.5 | y | 0 | 439 | 25 |
| IIEES SC | SRSL | Z | EPn | E | 2022-02-17 09:36:44 | -0.9 | y | 0 | 459 | 326 |
| IIEES SC | DAMV | Z | EPn | E | 2022-02-17 09:36:46 | 0.1 | y | 0 | 467 | 48 |
| IIEES SC | GRMI | Z | EPn | E | 2022-02-17 09:37:11 | -0.4 | y | 0 | 669 | 357 |
