Magnitude |
3.4 |
| Date & Time (UTC) | 2022-05-21 15:03:09.1 |
| Date & Time (Local) | 1401/2/31 19:33:09.1 |

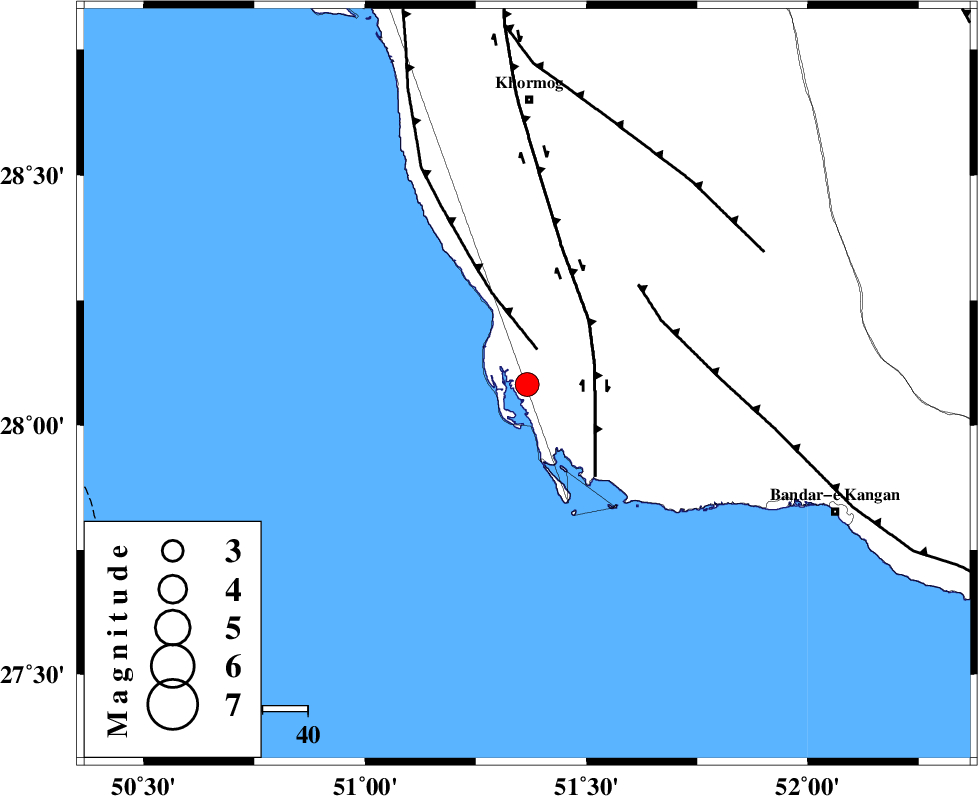

| Location | Lat:28.082 Lon: 51.366 |
| Region | , 63 km South of Khormog |
Nearest Cities |
|
| 10 km of Ziyarat, Bushehr Province | |
| 11 km North West of Bardkhun, Bushehr Province | |
| 18 km West of Abkesh, Bushehr Province | |
| 32 km South West of Kaki, Bushehr Province | |
| 37 km South West of Baduleh, Bushehr Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| ZFF2 (Length: 84 km) , Distance to epicenter: 8 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 16 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 33 km | |
| Number of Phases | 11 |
| RMS | 0.6 |
| Number of Stations | 11 |
| Error in Latitude | 4.2 km |
| Error in Longitude | 4.2 km |
| Error in Depth | 8.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 170542 | IIEES SC | AHRM | Z | 0.8 | 1 | 2022-05-21 15:03:24 | 2022-05-22 05:53:00 | n |
| 170543 | IIEES SC | LMD1 | Z | 0.9 | 1 | 2022-05-21 15:03:40 | 2022-05-22 05:53:00 | n |
| 170544 | IIEES SC | KLNJ | Z | 0.2 | 1 | 2022-05-21 15:03:57 | 2022-05-22 05:53:00 | n |
| 170545 | IIEES SC | BNDS | Z | 0.06 | 1 | 2022-05-21 15:04:15 | 2022-05-22 05:53:00 | n |
| 170546 | IIEES SC | MEH | Z | 0.03 | 1 | 2022-05-21 15:04:17 | 2022-05-22 05:53:00 | n |
| 170547 | IIEES SC | GTMR | Z | 0.09 | 1 | 2022-05-21 15:04:22 | 2022-05-22 05:53:00 | n |
| 170548 | IIEES SC | NASN | Z | 0.03 | 1 | 2022-05-21 15:04:23 | 2022-05-22 05:53:00 | n |
| 170549 | IIEES SC | KRBR | Z | 0.08 | 1 | 2022-05-21 15:04:27 | 2022-05-22 05:53:00 | n |
| 170550 | IIEES SC | YZKH | Z | 0.02 | 1 | 2022-05-21 15:04:28 | 2022-05-22 05:53:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | AHRM | Z | EPg | E | 2022-05-21 15:03:24 | -0.3 | y | 0 | 90 | 345 |
| IIEES SC | GHIR | Z | EPg | E | 2022-05-21 15:03:36 | 0.6 | y | 0 | 161 | 82 |
| IIEES SC | KHRK | Z | EPg | E | 2022-05-21 15:03:36 | 0.6 | y | 0 | 166 | 322 |
| IIEES SC | LMD1 | Z | EPg | E | 2022-05-21 15:03:40 | -0.3 | y | 0 | 196 | 115 |
| IIEES SC | KLNJ | Z | EPn | E | 2022-05-21 15:03:57 | -0.1 | y | 0 | 325 | 4 |
| IIEES SC | BNDS | Z | EPn | E | 2022-05-21 15:04:15 | -0.8 | y | 0 | 480 | 99 |
| IIEES SC | MEH | Z | EPn | E | 2022-05-21 15:04:17 | 0.2 | y | 0 | 483 | 41 |
| IIEES SC | GTMR | Z | EPn | E | 2022-05-21 15:04:22 | -0.9 | y | 0 | 533 | 336 |
| IIEES SC | NASN | Z | EPn | E | 2022-05-21 15:04:23 | -0.5 | y | 0 | 541 | 15 |
| IIEES SC | KRBR | Z | EPn | E | 2022-05-21 15:04:27 | 0.4 | y | 0 | 566 | 68 |
| IIEES SC | YZKH | Z | EPn | E | 2022-05-21 15:04:28 | 0.9 | y | 0 | 570 | 33 |
