Magnitude |
4.6 |
| Date & Time (UTC) | 2022-06-01 07:50:01.6 |
| Date & Time (Local) | 1401/3/11 12:20:01.6 |

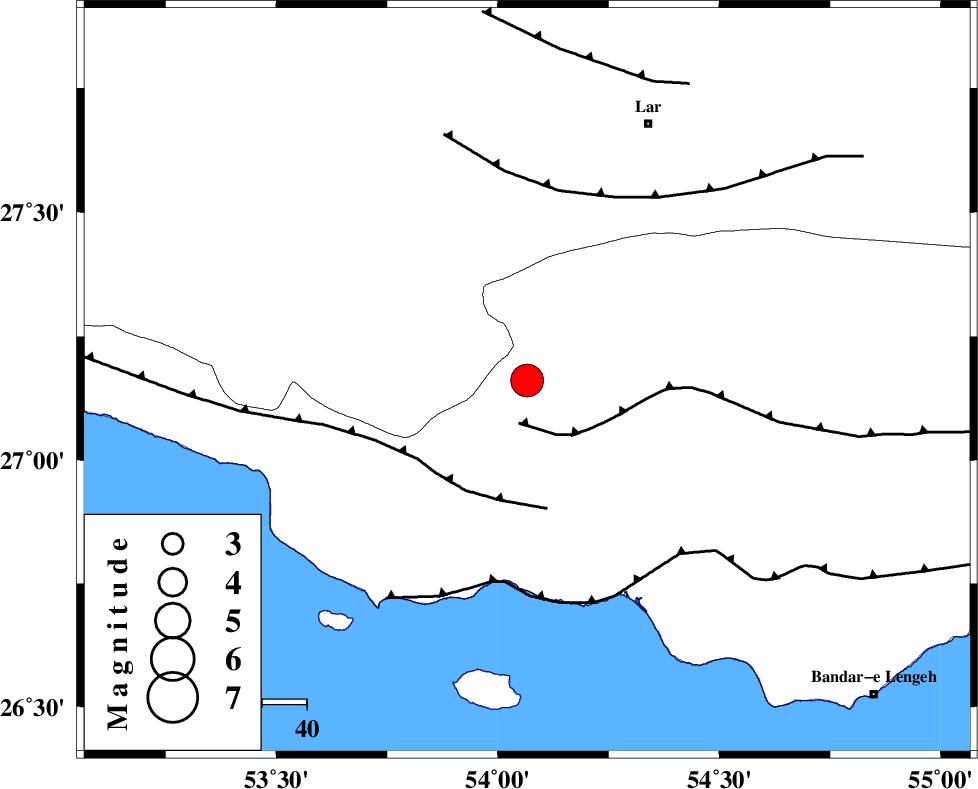

| Location | Lat:27.161 Lon: 54.066 |
| Region | Hormozgan Province, 30 km -West of Bastak |
Nearest Cities |
|
| 27 km North West of Jenah, Hormozgan Province | |
| 30 km West of Bastak, Hormozgan Province | |
| 33 km East of Ahl, Fars Province | |
| 38 km South of Bagh, Fars Province | |
| 45 km East of Ashkenan, Fars Province | |
| Depth | 25 km |
| Agency | |
Faults within 150 km: |
|
| MFF1 (Length: 180 km) , Distance to epicenter: 10 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 28 km | |
| LAR_F (Length: 99 km) , Distance to epicenter: 43 km | |
| Number of Phases | 28 |
| RMS | 0.3 |
| Number of Stations | 28 |
| Error in Latitude | 1.3 km |
| Error in Longitude | 1.3 km |
| Error in Depth | 3.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 170830 | IIEES SC | GHIR | Z | 6 | 1 | 2022-06-01 07:50:28 | 2022-06-06 03:58:00 | n |
| 170831 | IIEES SC | BNDS | Z | 8 | 1 | 2022-06-01 07:50:34 | 2022-06-06 03:58:00 | n |
| 170832 | IIEES SC | AHRM | Z | 2 | 1 | 2022-06-01 07:50:50 | 2022-06-06 03:58:00 | n |
| 170833 | IIEES SC | JSSH | Z | 0.5 | 1 | 2022-06-01 07:50:52 | 2022-06-06 03:58:00 | n |
| 170834 | IIEES SC | KRBR | Z | 2 | 1 | 2022-06-01 07:51:00 | 2022-06-06 03:58:00 | n |
| 170835 | IIEES SC | MEH | Z | 0.3 | 1 | 2022-06-01 07:51:07 | 2022-06-06 03:58:00 | n |
| 170836 | IIEES SC | KLNJ | Z | 3 | 1 | 2022-06-01 07:51:08 | 2022-06-06 03:58:00 | n |
| 170837 | IIEES SC | YZKH | Z | 0.7 | 1 | 2022-06-01 07:51:21 | 2022-06-06 03:58:00 | n |
| 170838 | IIEES SC | NASN | Z | 0.5 | 1 | 2022-06-01 07:51:27 | 2022-06-06 03:58:00 | n |
| 170839 | IIEES SC | BSRN | Z | 0.2 | 1 | 2022-06-01 07:51:38 | 2022-06-06 03:58:00 | n |
| 170840 | IIEES SC | TABS | Z | 0.4 | 1 | 2022-06-01 07:51:44 | 2022-06-06 03:58:00 | n |
| 170841 | IIEES SC | SRVN | Z | 0.07 | 1 | 2022-06-01 07:51:50 | 2022-06-06 03:58:00 | n |
| 170842 | IIEES SC | KHMZ | Z | 0.4 | 1 | 2022-06-01 07:51:50 | 2022-06-06 03:58:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | LMD1 | Z | EPg | E | 2022-06-01 07:50:17 | 0 | y | 0 | 92 | 283 |
| IIEES SC | LMD1 | Z | ESg | E | 2022-06-01 07:50:28 | 0.1 | y | 0 | 92 | 283 |
| IIEES SC | GHIR | Z | EPg | E | 2022-06-01 07:50:28 | 0.2 | y | 0 | 164 | 319 |
| IIEES SC | BNDS | Z | EPn | E | 2022-06-01 07:50:34 | -0.3 | y | 0 | 210 | 83 |
| IIEES SC | AHRM | Z | EPn | E | 2022-06-01 07:50:50 | -0.4 | y | 0 | 345 | 303 |
| IIEES SC | JSSH | Z | EPn | E | 2022-06-01 07:50:52 | 0 | y | 0 | 359 | 113 |
| IIEES SC | KRBR | Z | EPn | E | 2022-06-01 07:51:00 | 0.8 | y | 0 | 409 | 40 |
| IIEES SC | MEH | Z | EPn | E | 2022-06-01 07:51:07 | 0.7 | y | 0 | 472 | 6 |
| IIEES SC | KLNJ | Z | EPn | E | 2022-06-01 07:51:08 | -0.7 | y | 0 | 490 | 331 |
| IIEES SC | YZKH | Z | EPn | E | 2022-06-01 07:51:21 | 0.5 | y | 0 | 582 | 5 |
| IIEES SC | NASN | Z | EPn | E | 2022-06-01 07:51:27 | -0.4 | y | 0 | 637 | 349 |
| IIEES SC | ZHSF | Z | EPn | E | 2022-06-01 07:51:36 | 0.1 | y | 0 | 711 | 68 |
| IIEES SC | BSRN | Z | EPn | E | 2022-06-01 07:51:38 | 0.4 | y | 0 | 724 | 43 |
| IIEES SC | TABS | Z | EPn | E | 2022-06-01 07:51:44 | -0.3 | y | 0 | 777 | 22 |
| IIEES SC | SRVN | Z | EPn | E | 2022-06-01 07:51:50 | -0.3 | y | 0 | 825 | 88 |
| IIEES SC | KHMZ | Z | EPn | E | 2022-06-01 07:51:50 | -0.8 | y | 0 | 829 | 332 |
| IIEES SC | GHVR | Z | EPn | E | 2022-06-01 07:51:53 | -0.8 | y | 0 | 855 | 342 |
| IIEES SC | ASAO | Z | EPn | E | 2022-06-01 07:51:59 | -1 | y | 0 | 906 | 335 |
| IIEES SC | ANJ | Z | EPn | E | 2022-06-01 07:52:02 | -0.3 | y | 0 | 921 | 359 |
| IIEES SC | SHRT | Z | EPn | E | 2022-06-01 07:52:04 | -0.3 | y | 0 | 935 | 40 |
| IIEES SC | DAMV | Z | EPn | E | 2022-06-01 07:52:06 | -0.8 | y | 0 | 960 | 348 |
| IIEES SC | SHRO | Z | EPn | E | 2022-06-01 07:52:11 | -0.6 | y | 0 | 998 | 11 |
| IIEES SC | GLO | Z | EPn | E | 2022-06-01 07:52:17 | 0.4 | y | 0 | 1036 | 359 |
| IIEES SC | ABGH | Z | EPn | E | 2022-06-01 07:52:21 | 0.6 | y | 0 | 1064 | 4 |
| IIEES SC | SNGE | Z | EPn | E | 2022-06-01 07:52:22 | -1.3 | y | 0 | 1088 | 324 |
| IIEES SC | MRVT | Z | EPn | E | 2022-06-01 07:52:35 | 0.6 | y | 0 | 1180 | 9 |
| IIEES SC | GRMI | Z | EPn | E | 2022-06-01 07:53:03 | -0.4 | y | 0 | 1415 | 336 |
| IIEES SC | MAKU | Z | EPn | E | 2022-06-01 07:53:27 | -0.4 | y | 0 | 1610 | 327 |
