Magnitude |
3.4 |
| Date & Time (UTC) | 2022-06-14 13:44:29.0 |
| Date & Time (Local) | 1401/3/24 18:14:29.0 |

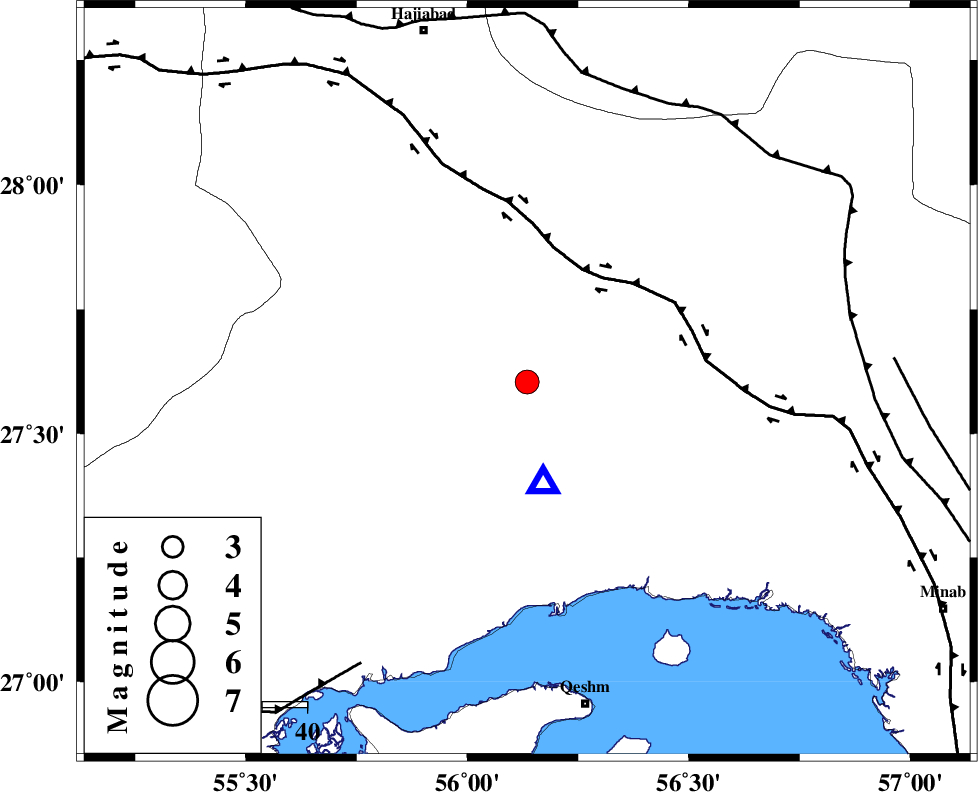

| Location | Lat:27.604 Lon: 56.135 |
| Region | Hormozgan Province, 49 km North-West of Bandar-e abbas |
Nearest Cities |
|
| 23 km East of Fin, Hormozgan Province | |
| 47 km South of Fareqan, Hormozgan Province | |
| 49 km North West of Bandar-e abbas, Hormozgan Province | |
| 73 km North West of Qeshm, Hormozgan Province | |
| 76 km South East of Darz, Fars Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| HZF2 (Length: 437 km) , Distance to epicenter: 28 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 69 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 73 km | |
| Number of Phases | 12 |
| RMS | 0.5 |
| Number of Stations | 12 |
| Error in Latitude | 2.3 km |
| Error in Longitude | 2.3 km |
| Error in Depth | 3.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 171199 | IIEES SC | BNDS | Z | 20 | 1 | 2022-06-14 13:44:33 | 2022-06-15 04:04:00 | n |
| 171200 | IIEES SC | JSSH | Z | 0.3 | 1 | 2022-06-14 13:45:04 | 2022-06-15 04:04:00 | n |
| 171201 | IIEES SC | KRBR | Z | 0.6 | 1 | 2022-06-14 13:45:10 | 2022-06-15 04:04:00 | n |
| 171202 | IIEES SC | GHIR | Z | 0.08 | 1 | 2022-06-14 13:45:17 | 2022-06-15 04:04:00 | n |
| 171203 | IIEES SC | YZKH | Z | 0.04 | 1 | 2022-06-14 13:45:45 | 2022-06-15 04:04:00 | n |
| 171204 | IIEES SC | BSRN | Z | 0.06 | 1 | 2022-06-14 13:45:47 | 2022-06-15 04:04:00 | n |
| 171205 | IIEES SC | KLNJ | Z | 0.09 | 1 | 2022-06-14 13:45:48 | 2022-06-15 04:04:00 | n |
| 171206 | IIEES SC | NASN | Z | 0.02 | 1 | 2022-06-14 13:45:58 | 2022-06-15 04:04:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | BNDS | Z | EPg | E | 2022-06-14 13:44:33 | 0.2 | y | 0 | 23 | 171 |
| IIEES SC | JSSH | Z | EPn | E | 2022-06-14 13:45:04 | -0.7 | y | 0 | 225 | 146 |
| IIEES SC | KRBR | Z | EPn | E | 2022-06-14 13:45:10 | 0.2 | y | 0 | 271 | 13 |
| IIEES SC | LMD1 | Z | EPn | E | 2022-06-14 13:45:13 | -0.3 | y | 0 | 295 | 264 |
| IIEES SC | GHIR | Z | EPn | E | 2022-06-14 13:45:17 | 0.9 | y | 0 | 319 | 284 |
| IIEES SC | MEH | Z | EPn | E | 2022-06-14 13:45:32 | 0.2 | y | 0 | 445 | 341 |
| IIEES SC | ZHSF | Z | EPn | E | 2022-06-14 13:45:39 | 0.1 | y | 0 | 505 | 64 |
| IIEES SC | YZKH | Z | EPn | E | 2022-06-14 13:45:45 | -0.2 | y | 0 | 551 | 344 |
| IIEES SC | BSRN | Z | EPn | E | 2022-06-14 13:45:47 | 0.7 | y | 0 | 563 | 31 |
| IIEES SC | KLNJ | Z | EPn | E | 2022-06-14 13:45:48 | -1 | y | 0 | 581 | 311 |
| IIEES SC | NASN | Z | EPn | E | 2022-06-14 13:45:58 | -0.8 | y | 0 | 659 | 331 |
| IIEES SC | GTMR | Z | EPn | E | 2022-06-14 13:46:22 | -2.1 | n | 4 | 866 | 309 |
