Magnitude |
4 |
| Date & Time (UTC) | 2022-06-17 13:08:38.3 |
| Date & Time (Local) | 1401/3/27 17:38:38.3 |

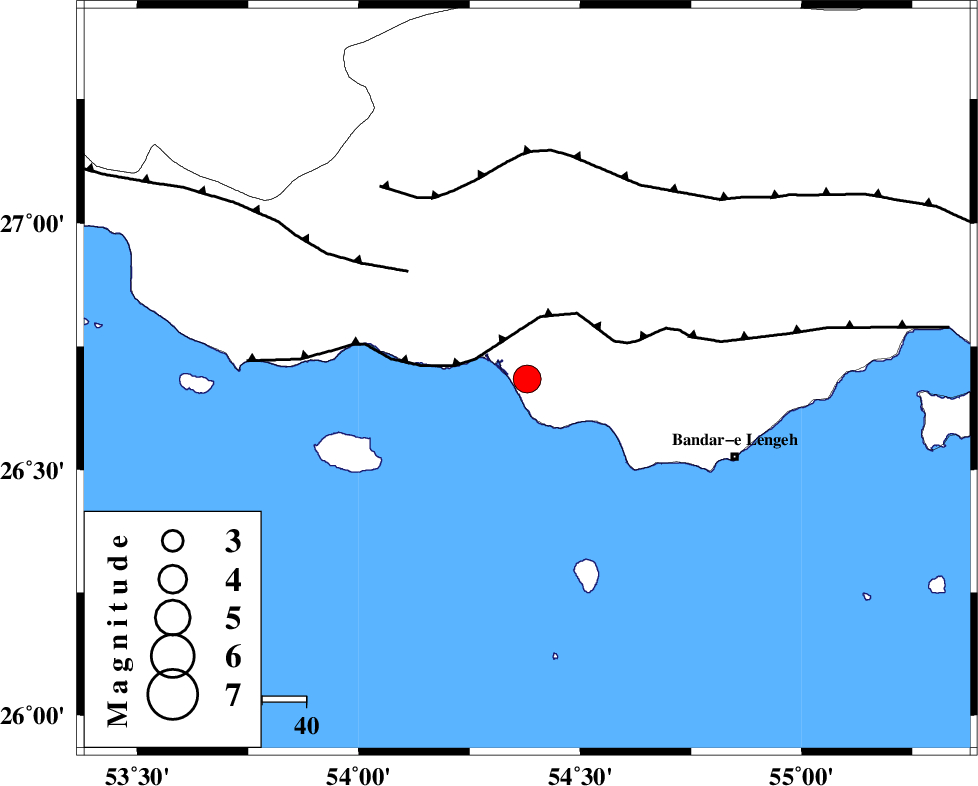

| Location | Lat:26.684 Lon: 54.38 |
| Region | Hormozgan Province, 57 km South of Bastak |
Nearest Cities |
|
| 38 km South of Jenah, Hormozgan Province | |
| 50 km North West of Bandar-e lengeh, Hormozgan Province | |
| 57 km South of Bastak, Hormozgan Province | |
| 84 km South East of Ahl, Fars Province | |
| 97 km South East of Bagh, Fars Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| ZFF1 (Length: 165 km) , Distance to epicenter: 11 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 36 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 45 km | |
| Number of Phases | 19 |
| RMS | 0.8 |
| Number of Stations | 19 |
| Error in Latitude | 3.9 km |
| Error in Longitude | 3.9 km |
| Error in Depth | 11.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 171299 | IIEES SC | LMD1 | Z | 20 | 1 | 2022-06-17 13:09:02 | 2022-06-18 03:52:00 | n |
| 171300 | IIEES SC | AHRM | Z | 0.3 | 1 | 2022-06-17 13:09:35 | 2022-06-18 03:52:00 | n |
| 171301 | IIEES SC | KRBR | Z | 0.4 | 1 | 2022-06-17 13:09:41 | 2022-06-18 03:52:00 | n |
| 171302 | IIEES SC | MEH | Z | 0.04 | 1 | 2022-06-17 13:09:52 | 2022-06-18 03:52:00 | n |
| 171303 | IIEES SC | KLNJ | Z | 0.4 | 1 | 2022-06-17 13:09:54 | 2022-06-18 03:52:00 | n |
| 171304 | IIEES SC | YZKH | Z | 0.08 | 1 | 2022-06-17 13:10:05 | 2022-06-18 03:52:00 | n |
| 171305 | IIEES SC | NASN | Z | 0.1 | 1 | 2022-06-17 13:10:11 | 2022-06-18 03:52:00 | n |
| 171306 | IIEES SC | ZHSF | Z | 0.03 | 1 | 2022-06-17 13:10:14 | 2022-06-18 03:52:00 | n |
| 171307 | IIEES SC | BSRN | Z | 0.04 | 1 | 2022-06-17 13:10:18 | 2022-06-18 03:52:00 | n |
| 171308 | IIEES SC | SRVN | Z | 0.04 | 1 | 2022-06-17 13:10:25 | 2022-06-18 03:52:00 | n |
| 171309 | IIEES SC | TABS | Z | 0.04 | 1 | 2022-06-17 13:10:27 | 2022-06-18 03:52:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | LMD1 | Z | EPg | E | 2022-06-17 13:09:02 | 0.9 | y | 0 | 141 | 301 |
| IIEES SC | BNDS | Z | EPg | E | 2022-06-17 13:09:10 | 0.7 | y | 0 | 195 | 66 |
| IIEES SC | GHIR | Z | EPn | E | 2022-06-17 13:09:12 | -1.8 | y | 0 | 225 | 322 |
| IIEES SC | JSSH | Z | EPn | E | 2022-06-17 13:09:24 | -0.9 | y | 0 | 312 | 106 |
| IIEES SC | AHRM | Z | EPn | E | 2022-06-17 13:09:35 | -0.1 | y | 0 | 402 | 307 |
| IIEES SC | KRBR | Z | EPn | E | 2022-06-17 13:09:41 | 1 | y | 0 | 434 | 33 |
| IIEES SC | MEH | Z | EPn | E | 2022-06-17 13:09:52 | 0.9 | y | 0 | 522 | 2 |
| IIEES SC | KLNJ | Z | EPn | E | 2022-06-17 13:09:54 | -0.6 | y | 0 | 551 | 330 |
| IIEES SC | YZKH | Z | EPn | E | 2022-06-17 13:10:05 | 0.3 | y | 0 | 633 | 2 |
| IIEES SC | NASN | Z | EPn | E | 2022-06-17 13:10:11 | -0.8 | y | 0 | 695 | 347 |
| IIEES SC | ZHSF | Z | EPn | E | 2022-06-17 13:10:14 | 0.3 | y | 0 | 706 | 63 |
| IIEES SC | BSRN | Z | EPn | E | 2022-06-17 13:10:18 | -0.3 | y | 0 | 745 | 38 |
| IIEES SC | SRVN | Z | EPn | E | 2022-06-17 13:10:25 | 0.2 | y | 0 | 800 | 84 |
| IIEES SC | TABS | Z | EPn | E | 2022-06-17 13:10:27 | 0.1 | y | 0 | 816 | 19 |
| IIEES SC | GTMR | Z | EPn | E | 2022-06-17 13:10:25 | -2.2 | n | 4 | 820 | 321 |
| IIEES SC | KHMZ | Z | EPn | E | 2022-06-17 13:10:35 | -1.9 | n | 4 | 890 | 331 |
| IIEES SC | SHRT | Z | EPn | E | 2022-06-17 13:10:45 | 0.4 | y | 0 | 959 | 36 |
| IIEES SC | ASAO | Z | EPn | E | 2022-06-17 13:10:44 | -2.2 | n | 4 | 967 | 334 |
| IIEES SC | DAMV | Z | EPn | E | 2022-06-17 13:10:51 | -1.8 | y | 0 | 1018 | 347 |
