Magnitude |
4.7 |
| Date & Time (UTC) | 2022-06-18 16:44:47.5 |
| Date & Time (Local) | 1401/3/28 21:14:47.5 |

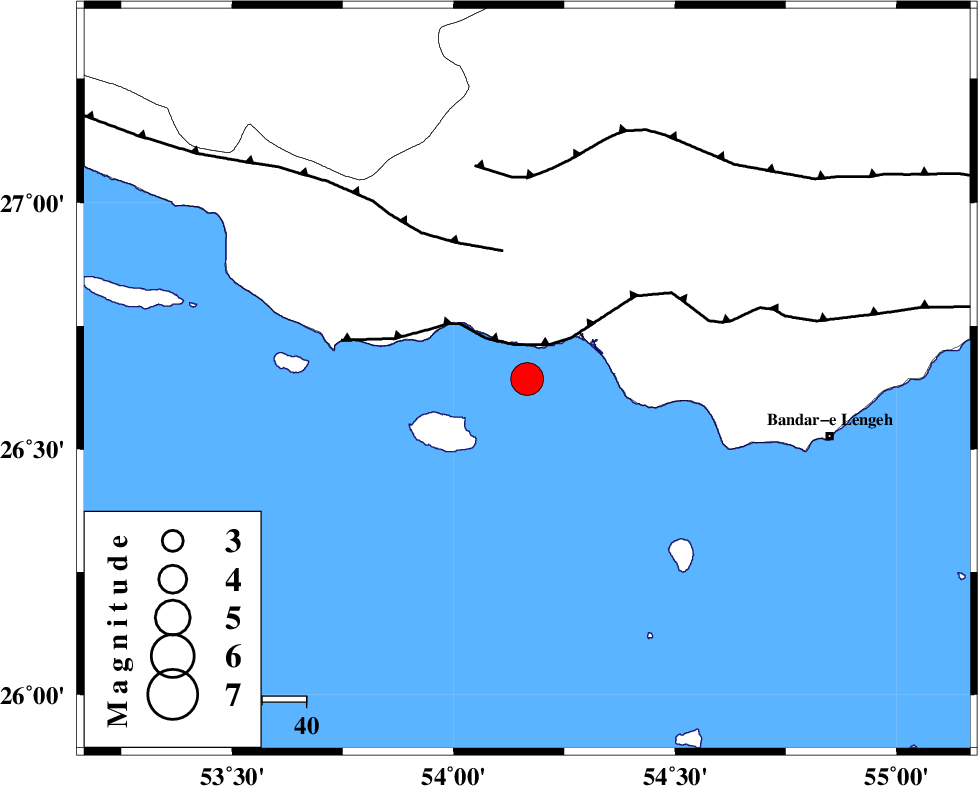

| Location | Lat:26.642 Lon: 54.166 |
| Region | Persian Gulf, 65 km South-West of Bastak |
Nearest Cities |
|
| 43 km South West of Jenah, Hormozgan Province | |
| 65 km South West of Bastak, Hormozgan Province | |
| 69 km North West of Bandar-e lengeh, Hormozgan Province | |
| 73 km South East of Ahl, Fars Province | |
| 85 km South East of Ashkenan, Fars Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| ZFF1 (Length: 165 km) , Distance to epicenter: 8 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 29 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 46 km | |
| Number of Phases | 26 |
| RMS | 0.8 |
| Number of Stations | 26 |
| Error in Latitude | 4 km |
| Error in Longitude | 4 km |
| Error in Depth | 830.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 171414 | IIEES SC | JSSH | Z | 2 | 1 | 2022-06-18 16:45:37 | 2022-06-18 06:03:00 | n |
| 171415 | IIEES SC | YZKH | Z | 0.5 | 1 | 2022-06-18 16:46:15 | 2022-06-18 06:03:00 | n |
| 171416 | IIEES SC | CHBR | Z | 0.4 | 1 | 2022-06-18 16:46:14 | 2022-06-18 06:03:00 | n |
| 171417 | IIEES SC | NASN | Z | 0.4 | 1 | 2022-06-18 16:46:21 | 2022-06-18 06:03:00 | n |
| 171418 | IIEES SC | ZHSF | Z | 0.3 | 1 | 2022-06-18 16:46:26 | 2022-06-18 06:03:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | BNDS | Z | EPn | E | 2022-06-18 16:45:22 | -0.4 | y | 0 | 216 | 67 |
| IIEES SC | GHIR | Z | EPn | E | 2022-06-18 16:45:23 | 0.8 | y | 0 | 216 | 327 |
| IIEES SC | JSSH | Z | EPn | E | 2022-06-18 16:45:37 | 0.7 | y | 0 | 332 | 104 |
| IIEES SC | KRBR | Z | EPn | E | 2022-06-18 16:45:52 | 1 | y | 0 | 449 | 35 |
| IIEES SC | KLNJ | Z | EPn | E | 2022-06-18 16:46:03 | -0.2 | y | 0 | 545 | 333 |
| IIEES SC | YZKH | Z | EPn | E | 2022-06-18 16:46:15 | 0.3 | y | 0 | 638 | 4 |
| IIEES SC | CHBR | Z | EPn | E | 2022-06-18 16:46:14 | -1 | y | 0 | 642 | 100 |
| IIEES SC | NASN | Z | EPn | E | 2022-06-18 16:46:21 | -0.2 | y | 0 | 695 | 349 |
| IIEES SC | ZHSF | Z | EPn | E | 2022-06-18 16:46:26 | 0.3 | y | 0 | 727 | 63 |
| IIEES SC | BSRN | Z | EPn | E | 2022-06-18 16:46:29 | -0.7 | y | 0 | 762 | 39 |
| IIEES SC | GTMR | Z | EPn | E | 2022-06-18 16:46:34 | -1.5 | y | 0 | 811 | 323 |
| IIEES SC | SRVN | Z | EPn | E | 2022-06-18 16:46:37 | -0.1 | y | 0 | 821 | 84 |
| IIEES SC | TABS | Z | EPn | E | 2022-06-18 16:46:38 | 0.1 | y | 0 | 827 | 20 |
| IIEES SC | KHMZ | Z | EPn | E | 2022-06-18 16:46:44 | -0.8 | y | 0 | 885 | 333 |
| IIEES SC | ASAO | Z | EPn | E | 2022-06-18 16:46:54 | -0.2 | y | 0 | 962 | 336 |
| IIEES SC | SHRT | Z | EPn | E | 2022-06-18 16:46:57 | 0.4 | y | 0 | 975 | 37 |
| IIEES SC | DAMV | Z | EPn | E | 2022-06-18 16:47:01 | -1 | y | 0 | 1018 | 348 |
| IIEES SC | SHRO | Z | EPn | E | 2022-06-18 16:47:04 | -2.3 | y | 0 | 1053 | 10 |
| IIEES SC | CHTH | Z | EPn | E | 2022-06-18 16:47:07 | -1 | y | 0 | 1067 | 344 |
| IIEES SC | GLO | Z | EPn | E | 2022-06-18 16:47:13 | 2.1 | y | 0 | 1094 | 358 |
| IIEES SC | TBJM | Z | EPn | E | 2022-06-18 16:47:16 | 1 | y | 0 | 1123 | 32 |
| IIEES SC | GIDE | Z | EPn | E | 2022-06-18 16:47:27 | 1.6 | y | 0 | 1212 | 340 |
| IIEES SC | MRVT | Z | EPn | E | 2022-06-18 16:47:29 | 0.5 | y | 0 | 1235 | 8 |
| IIEES SC | BJRD | Z | EPn | E | 2022-06-18 16:47:32 | -0.5 | y | 0 | 1264 | 14 |
| IIEES SC | SRSL | Z | EPn | E | 2022-06-18 16:47:42 | -0.8 | y | 0 | 1347 | 322 |
| IIEES SC | GRMI | Z | EPn | E | 2022-06-18 16:47:59 | 0.8 | y | 0 | 1472 | 336 |
