Magnitude |
4 |
| Date & Time (UTC) | 2022-06-21 07:05:05.4 |
| Date & Time (Local) | 1401/3/31 11:35:05.4 |

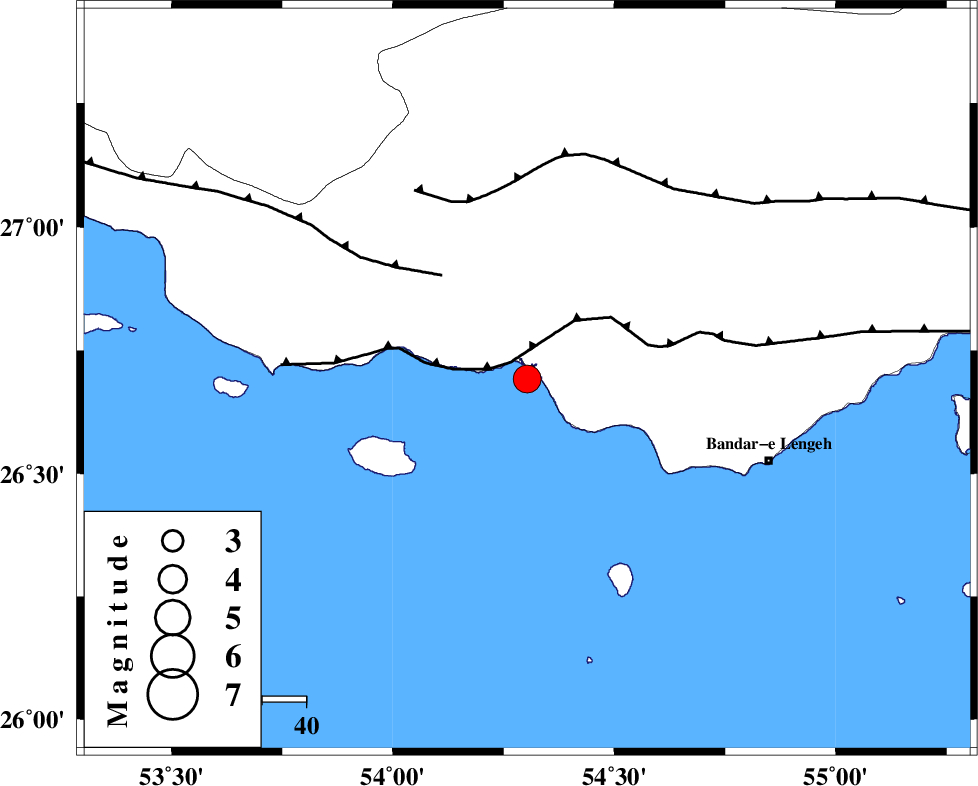

| Location | Lat:26.692 Lon: 54.303 |
| Region | Persian Gulf, 57 km South of Bastak |
Nearest Cities |
|
| 36 km South of Jenah, Hormozgan Province | |
| 57 km South of Bastak, Hormozgan Province | |
| 57 km North West of Bandar-e lengeh, Hormozgan Province | |
| 77 km South East of Ahl, Fars Province | |
| 90 km South East of Ashkenan, Fars Province | |
| Depth | 19 km |
| Agency | |
Faults within 150 km: |
|
| ZFF1 (Length: 165 km) , Distance to epicenter: 5 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 30 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 42 km | |
| Number of Phases | 25 |
| RMS | 0.4 |
| Number of Stations | 25 |
| Error in Latitude | 2.2 km |
| Error in Longitude | 2.2 km |
| Error in Depth | 457.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 171571 | IIEES SC | AHRM | Z | 0.1 | 1 | 2022-06-21 07:06:00 | 2022-06-21 07:48:00 | n |
| 171572 | IIEES SC | KRBR | Z | 0.4 | 1 | 2022-06-21 07:06:06 | 2022-06-21 07:48:00 | n |
| 171573 | IIEES SC | KLNJ | Z | 0.2 | 1 | 2022-06-21 07:06:21 | 2022-06-21 07:48:00 | n |
| 171574 | IIEES SC | YZKH | Z | 0.06 | 1 | 2022-06-21 07:06:32 | 2022-06-21 07:48:00 | n |
| 171575 | IIEES SC | NASN | Z | 0.07 | 1 | 2022-06-21 07:06:38 | 2022-06-21 07:48:00 | n |
| 171576 | IIEES SC | ZHSF | Z | 0.03 | 1 | 2022-06-21 07:06:41 | 2022-06-21 07:48:00 | n |
| 171577 | IIEES SC | BSRN | Z | 0.03 | 1 | 2022-06-21 07:06:45 | 2022-06-21 07:48:00 | n |
| 171578 | IIEES SC | SRVN | Z | 0.06 | 1 | 2022-06-21 07:06:53 | 2022-06-21 07:48:00 | n |
| 171579 | IIEES SC | GTMR | Z | 0.09 | 1 | 2022-06-21 07:06:52 | 2022-06-21 07:48:00 | n |
| 171580 | IIEES SC | TABS | Z | 0.03 | 1 | 2022-06-21 07:06:54 | 2022-06-21 07:48:00 | n |
| 171581 | IIEES SC | KHMZ | Z | 0.05 | 1 | 2022-06-21 07:07:02 | 2022-06-21 07:48:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | LMD1 | Z | EPg | E | 2022-06-21 07:05:30 | 2.8 | n | 4 | 134 | 302 |
| IIEES SC | BNDS | Z | EPn | E | 2022-06-21 07:05:37 | 0.3 | y | 0 | 201 | 67 |
| IIEES SC | GHIR | Z | EPn | E | 2022-06-21 07:05:40 | 0.4 | y | 0 | 219 | 324 |
| IIEES SC | JSSH | Z | EPn | E | 2022-06-21 07:05:52 | -0.1 | y | 0 | 320 | 106 |
| IIEES SC | AHRM | Z | EPn | E | 2022-06-21 07:06:00 | -0.9 | y | 0 | 395 | 308 |
| IIEES SC | KRBR | Z | EPn | E | 2022-06-21 07:06:06 | -0.3 | y | 0 | 437 | 33 |
| IIEES SC | MEH | Z | EPn | E | 2022-06-21 07:06:17 | 0.1 | y | 0 | 522 | 3 |
| IIEES SC | KLNJ | Z | EPn | E | 2022-06-21 07:06:21 | 0.8 | y | 0 | 547 | 331 |
| IIEES SC | YZKH | Z | EPn | E | 2022-06-21 07:06:32 | 0.7 | y | 0 | 632 | 3 |
| IIEES SC | NASN | Z | EPn | E | 2022-06-21 07:06:38 | 0.1 | y | 0 | 692 | 348 |
| IIEES SC | ZHSF | Z | EPn | E | 2022-06-21 07:06:41 | -0.2 | y | 0 | 712 | 63 |
| IIEES SC | BSRN | Z | EPn | E | 2022-06-21 07:06:45 | 0 | y | 0 | 749 | 39 |
| IIEES SC | SRVN | Z | EPn | E | 2022-06-21 07:06:53 | 0.2 | y | 0 | 807 | 84 |
| IIEES SC | GTMR | Z | EPn | E | 2022-06-21 07:06:52 | -0.8 | y | 0 | 814 | 322 |
| IIEES SC | TABS | Z | EPn | E | 2022-06-21 07:06:54 | 0.3 | y | 0 | 817 | 19 |
| IIEES SC | KHMZ | Z | EPn | E | 2022-06-21 07:07:02 | -0.3 | y | 0 | 886 | 332 |
| IIEES SC | GHVR | Z | EPn | E | 2022-06-21 07:07:06 | 0.4 | y | 0 | 912 | 341 |
| IIEES SC | ASAO | Z | EPn | E | 2022-06-21 07:07:11 | -1 | y | 0 | 963 | 335 |
| IIEES SC | SHRT | Z | EPn | E | 2022-06-21 07:07:12 | -0.1 | y | 0 | 963 | 37 |
| IIEES SC | DAMV | Z | EPn | E | 2022-06-21 07:07:19 | 0.1 | y | 0 | 1016 | 347 |
| IIEES SC | SHRO | Z | EPn | E | 2022-06-21 07:07:18 | -3.8 | n | 4 | 1046 | 9 |
| IIEES SC | CHTH | Z | EPn | E | 2022-06-21 07:07:24 | -0.7 | y | 0 | 1066 | 344 |
| IIEES SC | GLO | Z | EPn | E | 2022-06-21 07:07:27 | -0.6 | y | 0 | 1089 | 358 |
| IIEES SC | ILBA | Z | EPn | E | 2022-06-21 07:07:29 | 0.7 | y | 0 | 1095 | 315 |
| IIEES SC | TBJM | Z | EPn | E | 2022-06-21 07:07:31 | 0.3 | y | 0 | 1111 | 31 |
