Magnitude |
5.4 |
| Date & Time (UTC) | 2022-06-21 21:09:34.5 |
| Date & Time (Local) | 1401/4/1 01:39:34.5 |

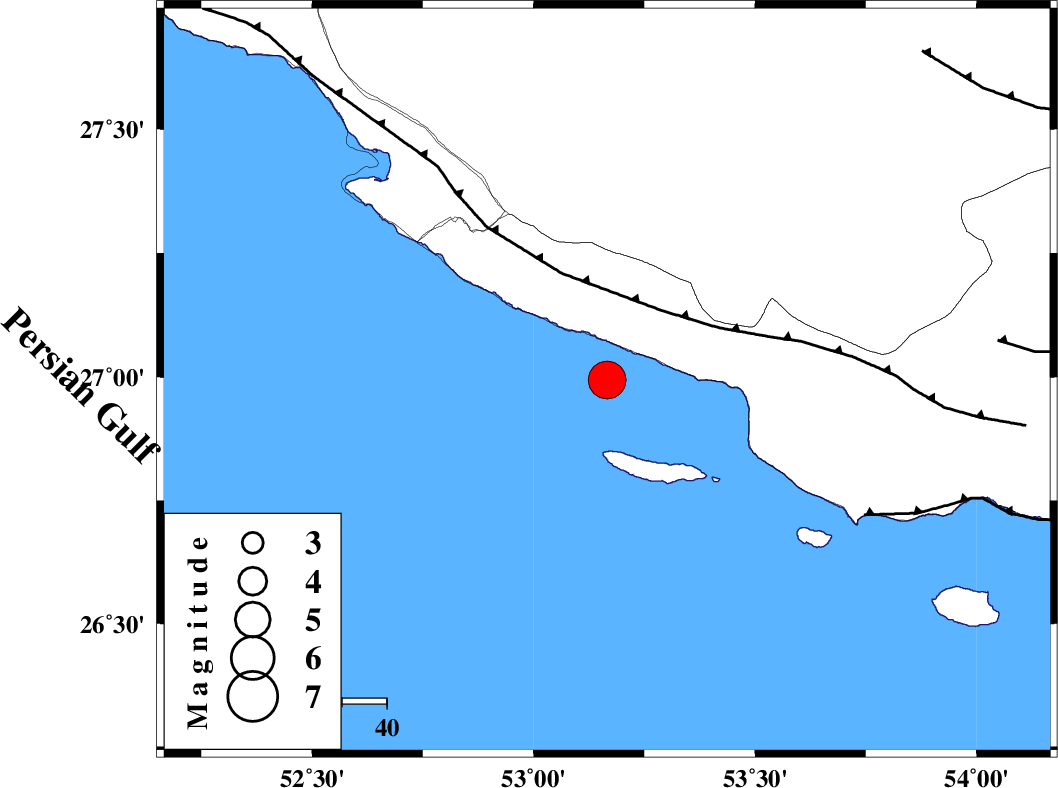

| Location | Lat:26.994 Lon: 53.166 |
| Region | Persian Gulf, 38 km South of Lamerd |
Nearest Cities |
|
| 38 km South of Lamerd, Fars Province | |
| 51 km South West of Ashkenan, Fars Province | |
| 54 km South East of Khoozi, Fars Province | |
| 55 km South East of Chah-e mobarak, Bushehr Province | |
| 59 km South West of Beyram, Fars Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| MFF3 (Length: 292 km) , Distance to epicenter: 20 km | |
| ZFF1 (Length: 165 km) , Distance to epicenter: 65 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 88 km | |
| Number of Phases | 28 |
| RMS | 0.5 |
| Number of Stations | 28 |
| Error in Latitude | 2.3 km |
| Error in Longitude | 2.3 km |
| Error in Depth | 3.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 171586 | IIEES SC | LMD1 | Z | 1000 | 1 | 2022-06-21 21:09:41 | 2022-06-22 04:00:00 | n |
| 171587 | IIEES SC | AHRM | Z | 6 | 1 | 2022-06-21 21:10:18 | 2022-06-22 04:00:00 | n |
| 171588 | IIEES SC | KHRK | Z | 20 | 1 | 2022-06-21 21:10:29 | 2022-06-22 04:00:00 | n |
| 171589 | IIEES SC | JSSH | Z | 1 | 1 | 2022-06-21 21:10:36 | 2022-06-22 04:00:00 | n |
| 171590 | IIEES SC | KLNJ | Z | 10 | 1 | 2022-06-21 21:10:40 | 2022-06-22 04:00:00 | n |
| 171591 | IIEES SC | KRBR | Z | 8 | 1 | 2022-06-21 21:10:43 | 2022-06-22 04:00:00 | n |
| 171592 | IIEES SC | YZKH | Z | 2 | 1 | 2022-06-21 21:10:59 | 2022-06-22 04:00:00 | n |
| 171593 | IIEES SC | NASN | Z | 2 | 1 | 2022-06-21 21:11:02 | 2022-06-22 04:00:00 | n |
| 171594 | IIEES SC | GTMR | Z | 3 | 1 | 2022-06-21 21:11:12 | 2022-06-22 04:00:00 | n |
| 171595 | IIEES SC | BSRN | Z | 0.9 | 1 | 2022-06-21 21:11:21 | 2022-06-22 04:00:00 | n |
| 171596 | IIEES SC | KHMZ | Z | 1 | 1 | 2022-06-21 21:11:22 | 2022-06-22 04:00:00 | n |
| 171597 | IIEES SC | TABS | Z | 1 | 1 | 2022-06-21 21:11:24 | 2022-06-22 04:00:00 | n |
| 171598 | IIEES SC | GHVR | Z | 2 | 1 | 2022-06-21 21:11:27 | 2022-06-22 04:00:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | LMD1 | Z | EPg | E | 2022-06-21 21:09:41 | -0.1 | y | 0 | 38 | 360 |
| IIEES SC | GHIR | Z | EPg | E | 2022-06-21 21:09:59 | 1.1 | y | 0 | 144 | 353 |
| IIEES SC | AHRM | Z | EPn | E | 2022-06-21 21:10:18 | 0.1 | y | 0 | 288 | 316 |
| IIEES SC | KHRK | Z | EPn | E | 2022-06-21 21:10:29 | 0.9 | y | 0 | 376 | 312 |
| IIEES SC | JSSH | Z | EPn | E | 2022-06-21 21:10:36 | 0 | y | 0 | 438 | 106 |
| IIEES SC | KLNJ | Z | EPn | E | 2022-06-21 21:10:40 | -0.4 | y | 0 | 471 | 341 |
| IIEES SC | KRBR | Z | EPn | E | 2022-06-21 21:10:43 | 0.4 | y | 0 | 483 | 47 |
| IIEES SC | MEH | Z | EPn | E | 2022-06-21 21:10:46 | 1.1 | y | 0 | 507 | 16 |
| IIEES SC | YZKH | Z | EPn | E | 2022-06-21 21:10:59 | 0.1 | y | 0 | 614 | 13 |
| IIEES SC | NASN | Z | EPn | E | 2022-06-21 21:11:02 | -0.1 | y | 0 | 644 | 357 |
| IIEES SC | GTMR | Z | EPn | E | 2022-06-21 21:11:12 | 0.3 | y | 0 | 723 | 327 |
| IIEES SC | BSRN | Z | EPn | E | 2022-06-21 21:11:21 | 0 | y | 0 | 798 | 46 |
| IIEES SC | ZHSF | Z | EPn | E | 2022-06-21 21:11:21 | -0.6 | y | 0 | 800 | 69 |
| IIEES SC | KHMZ | Z | EPn | E | 2022-06-21 21:11:22 | -0.2 | y | 0 | 809 | 338 |
| IIEES SC | TABS | Z | EPn | E | 2022-06-21 21:11:24 | -0.8 | y | 0 | 830 | 27 |
| IIEES SC | GHVR | Z | EPn | E | 2022-06-21 21:11:27 | -0.4 | y | 0 | 850 | 348 |
| IIEES SC | ASAO | Z | EPn | E | 2022-06-21 21:11:32 | -0.8 | y | 0 | 890 | 340 |
| IIEES SC | SRVN | Z | EPn | E | 2022-06-21 21:11:36 | 0 | y | 0 | 916 | 87 |
| IIEES SC | DAMV | Z | EPn | E | 2022-06-21 21:11:41 | -0.8 | y | 0 | 964 | 353 |
| IIEES SC | ILBA | Z | EPn | E | 2022-06-21 21:11:45 | -0.7 | y | 0 | 994 | 318 |
| IIEES SC | SHRT | Z | EPn | E | 2022-06-21 21:11:47 | 0 | y | 0 | 1007 | 43 |
| IIEES SC | CHTH | Z | EPn | E | 2022-06-21 21:11:46 | -1.1 | y | 0 | 1007 | 349 |
| IIEES SC | SHRO | Z | EPn | E | 2022-06-21 21:11:46 | -4.4 | n | 4 | 1035 | 15 |
| IIEES SC | SNGE | Z | EPn | E | 2022-06-21 21:11:54 | 0.6 | y | 0 | 1056 | 328 |
| IIEES SC | GLO | Z | EPn | E | 2022-06-21 21:11:54 | 0.8 | y | 0 | 1056 | 3 |
| IIEES SC | ABGH | Z | EPn | E | 2022-06-21 21:11:57 | -0.9 | y | 0 | 1091 | 8 |
| IIEES SC | TBJM | Z | EPn | E | 2022-06-21 21:12:04 | 0 | y | 0 | 1144 | 37 |
| IIEES SC | GIDE | Z | EPn | E | 2022-06-21 21:12:04 | -0.8 | y | 0 | 1145 | 344 |
