Magnitude |
4 |
| Date & Time (UTC) | 2022-06-28 19:01:19.6 |
| Date & Time (Local) | 1401/4/7 23:31:19.6 |

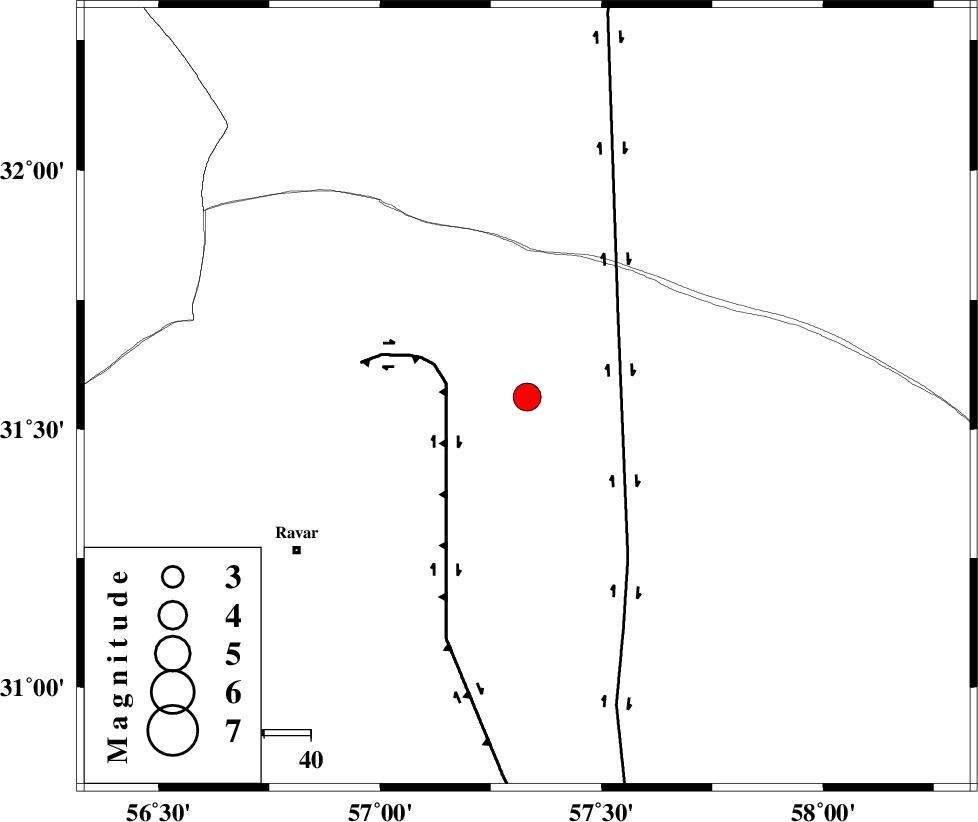

| Location | Lat:31.562 Lon: 57.332 |
| Region | Kerman Province, 59 km North-East of Ravar |
Nearest Cities |
|
| 57 km North East of Dehali, Kerman Province | |
| 59 km North East of Ravar, Kerman Province | |
| 67 km South West of Hoz-e qorban, Yazd Province | |
| 91 km North East of Ahmadi, Kerman Province | |
| 92 km North East of Dasht-e khak, Kerman Province | |
| Depth | 9 km |
| Agency | |
Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 17 km | |
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 26 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 101 km | |
| Number of Phases | 19 |
| RMS | 0.3 |
| Number of Stations | 19 |
| Error in Latitude | 1.1 km |
| Error in Longitude | 1.1 km |
| Error in Depth | 5.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 171872 | IIEES SC | BSRN | Z | 4 | 1 | 2022-06-28 19:01:48 | 2022-06-29 03:21:00 | n |
| 171873 | IIEES SC | BSRN | Z | 4 | 1 | 2022-06-28 19:02:09 | 2022-06-29 03:21:00 | n |
| 171874 | IIEES SC | KRBR | Z | 6 | 1 | 2022-06-28 19:01:50 | 2022-06-29 03:21:00 | n |
| 171875 | IIEES SC | TABS | Z | 4 | 1 | 2022-06-28 19:01:56 | 2022-06-29 03:21:00 | n |
| 171876 | IIEES SC | MEH | Z | 0.7 | 1 | 2022-06-28 19:01:59 | 2022-06-29 03:21:00 | n |
| 171877 | IIEES SC | YZKH | Z | 2 | 1 | 2022-06-28 19:02:01 | 2022-06-29 03:21:00 | n |
| 171878 | IIEES SC | SHRT | Z | 0.3 | 1 | 2022-06-28 19:02:13 | 2022-06-29 03:21:00 | n |
| 171879 | IIEES SC | NASN | Z | 0.2 | 1 | 2022-06-28 19:02:23 | 2022-06-29 03:21:00 | n |
| 171880 | IIEES SC | KLNJ | Z | 0.1 | 1 | 2022-06-28 19:02:36 | 2022-06-29 03:21:00 | n |
| 171881 | IIEES SC | GHVR | Z | 0.1 | 1 | 2022-06-28 19:02:49 | 2022-06-29 03:21:00 | n |
| 171882 | IIEES SC | DAMV | Z | 0.1 | 1 | 2022-06-28 19:02:50 | 2022-06-29 03:21:00 | n |
| 171883 | IIEES SC | BJRD | Z | 0.03 | 1 | 2022-06-28 19:02:53 | 2022-06-29 03:21:00 | n |
| 171884 | IIEES SC | MRVT | Z | 0.06 | 1 | 2022-06-28 19:02:53 | 2022-06-29 03:21:00 | n |
| 171885 | IIEES SC | CHTH | Z | 0.05 | 1 | 2022-06-28 19:03:01 | 2022-06-29 03:21:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | BSRN | Z | EPg | E | 2022-06-28 19:01:48 | -0.3 | y | 0 | 176 | 75 |
| IIEES SC | BSRN | Z | ESg | E | 2022-06-28 19:02:09 | -0.1 | y | 0 | 176 | 75 |
| IIEES SC | KRBR | Z | EPg | E | 2022-06-28 19:01:50 | 0.1 | y | 0 | 183 | 197 |
| IIEES SC | TABS | Z | EPn | E | 2022-06-28 19:01:56 | -0.2 | y | 0 | 232 | 355 |
| IIEES SC | MEH | Z | EPn | E | 2022-06-28 19:01:59 | -0.4 | y | 0 | 259 | 266 |
| IIEES SC | YZKH | Z | EPn | E | 2022-06-28 19:02:01 | -0.8 | y | 0 | 275 | 290 |
| IIEES SC | SHRT | Z | EPn | E | 2022-06-28 19:02:13 | 0.6 | y | 0 | 361 | 50 |
| IIEES SC | ZHSF | Z | EPn | E | 2022-06-28 19:02:17 | 0.2 | y | 0 | 394 | 123 |
| IIEES SC | NASN | Z | EPn | E | 2022-06-28 19:02:23 | -0.1 | y | 0 | 448 | 288 |
| IIEES SC | SHRO | Z | EPn | E | 2022-06-28 19:02:26 | -4.8 | n | 4 | 508 | 346 |
| IIEES SC | KLNJ | Z | EPn | E | 2022-06-28 19:02:36 | -0.3 | y | 0 | 550 | 264 |
| IIEES SC | ABGH | Z | EPn | E | 2022-06-28 19:02:45 | 0.1 | y | 0 | 620 | 338 |
| IIEES SC | GLO | Z | EPn | E | 2022-06-28 19:02:47 | 0 | y | 0 | 636 | 329 |
| IIEES SC | KAGH | Z | EPn | E | 2022-06-28 19:02:47 | -0.3 | y | 0 | 644 | 22 |
| IIEES SC | GHVR | Z | EPn | E | 2022-06-28 19:02:49 | 0.6 | y | 0 | 654 | 300 |
| IIEES SC | DAMV | Z | EPn | E | 2022-06-28 19:02:50 | -0.6 | y | 0 | 672 | 312 |
| IIEES SC | BJRD | Z | EPn | E | 2022-06-28 19:02:53 | 0.7 | y | 0 | 681 | 1 |
| IIEES SC | MRVT | Z | EPn | E | 2022-06-28 19:02:53 | 0.8 | y | 0 | 686 | 350 |
| IIEES SC | CHTH | Z | EPn | E | 2022-06-28 19:03:01 | 0 | y | 0 | 750 | 310 |
