Magnitude |
3.7 |
| Date & Time (UTC) | 2022-07-11 18:31:17.4 |
| Date & Time (Local) | 1401/4/20 23:01:17.4 |

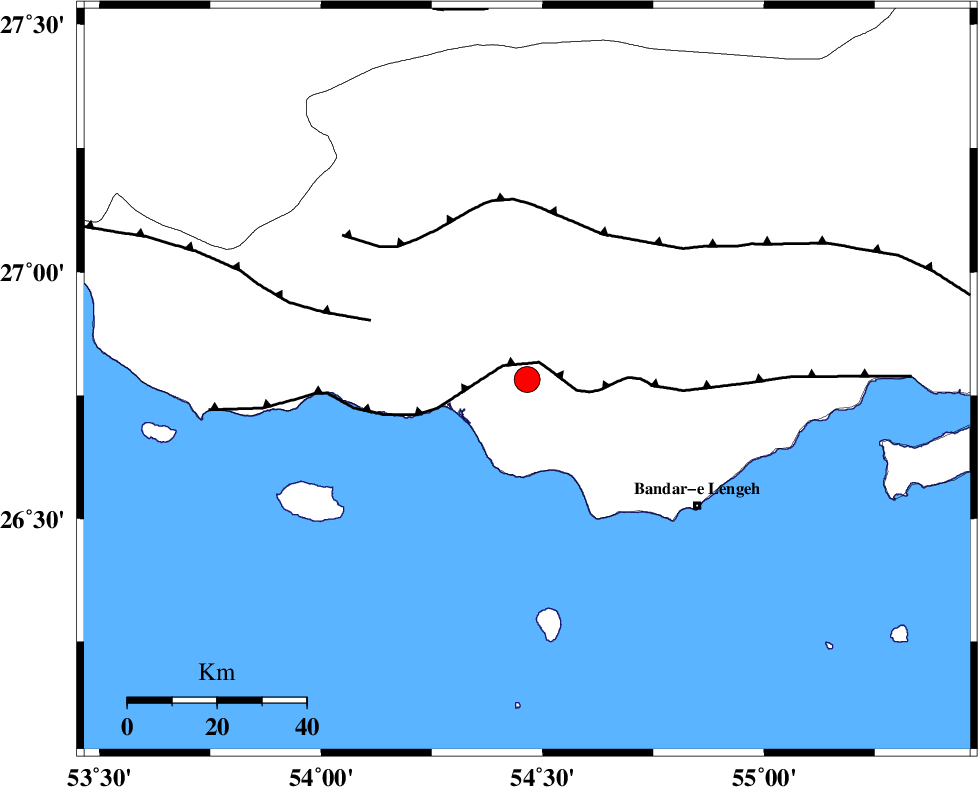

| Location | Lat:26.782 Lon: 54.465 |
| Region | Hormozgan Province, 47 km South-East of Bastak |
Nearest Cities |
|
| 32 km South East of Jenah, Hormozgan Province | |
| 47 km South East of Bastak, Hormozgan Province | |
| 48 km North West of Bandar-e lengeh, Hormozgan Province | |
| 84 km South East of Ahl, Fars Province | |
| 90 km South East of Bagh, Fars Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| ZFF1 (Length: 165 km) , Distance to epicenter: 5 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 37 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 37 km | |
| Number of Phases | 15 |
| RMS | 0.6 |
| Number of Stations | 15 |
| Error in Latitude | 5 km |
| Error in Longitude | 5 km |
| Error in Depth | 11.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 172407 | IIEES SC | LMD1 | Z | 3 | 1 | 2022-07-11 18:31:40 | 2022-07-12 05:23:00 | n |
| 172408 | IIEES SC | BNDS | Z | 1 | 1 | 2022-07-11 18:31:48 | 2022-07-12 05:23:00 | n |
| 172409 | IIEES SC | AHRM | Z | 0.07 | 1 | 2022-07-11 18:32:15 | 2022-07-12 05:23:00 | n |
| 172410 | IIEES SC | KRBR | Z | 0.3 | 1 | 2022-07-11 18:32:18 | 2022-07-12 05:23:00 | n |
| 172411 | IIEES SC | KLNJ | Z | 0.1 | 1 | 2022-07-11 18:32:34 | 2022-07-12 05:23:00 | n |
| 172412 | IIEES SC | YZKH | Z | 0.04 | 1 | 2022-07-11 18:32:42 | 2022-07-12 05:23:00 | n |
| 172413 | IIEES SC | NASN | Z | 0.02 | 1 | 2022-07-11 18:32:49 | 2022-07-12 05:23:00 | n |
| 172414 | IIEES SC | ZHSF | Z | 0.01 | 1 | 2022-07-11 18:32:51 | 2022-07-12 05:23:00 | n |
| 172415 | IIEES SC | BSRN | Z | 0.04 | 1 | 2022-07-11 18:32:56 | 2022-07-12 05:23:00 | n |
| 172416 | IIEES SC | SRVN | Z | 0.05 | 1 | 2022-07-11 18:33:02 | 2022-07-12 05:23:00 | n |
| 172417 | IIEES SC | TABS | Z | 0.03 | 1 | 2022-07-11 18:33:04 | 2022-07-12 05:23:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | LMD1 | Z | EPg | E | 2022-07-11 18:31:40 | -0.4 | y | 0 | 143 | 296 |
| IIEES SC | BNDS | Z | EPg | E | 2022-07-11 18:31:48 | 0.7 | y | 0 | 183 | 68 |
| IIEES SC | GHIR | Z | EPn | E | 2022-07-11 18:31:52 | -0.4 | y | 0 | 222 | 319 |
| IIEES SC | AHRM | Z | EPn | E | 2022-07-11 18:32:15 | 0.4 | y | 0 | 402 | 305 |
| IIEES SC | KRBR | Z | EPn | E | 2022-07-11 18:32:18 | 0.6 | y | 0 | 420 | 32 |
| IIEES SC | MEH | Z | EPn | E | 2022-07-11 18:32:29 | 0.7 | y | 0 | 511 | 2 |
| IIEES SC | KLNJ | Z | EPn | E | 2022-07-11 18:32:34 | 0.8 | y | 0 | 546 | 329 |
| IIEES SC | YZKH | Z | EPn | E | 2022-07-11 18:32:42 | -0.1 | y | 0 | 622 | 1 |
| IIEES SC | NASN | Z | EPn | E | 2022-07-11 18:32:49 | -1 | y | 0 | 686 | 346 |
| IIEES SC | ZHSF | Z | EPn | E | 2022-07-11 18:32:51 | -0.1 | y | 0 | 694 | 63 |
| IIEES SC | BSRN | Z | EPn | E | 2022-07-11 18:32:56 | -0.3 | y | 0 | 731 | 38 |
| IIEES SC | SRVN | Z | EPn | E | 2022-07-11 18:33:02 | -1 | y | 0 | 790 | 85 |
| IIEES SC | TABS | Z | EPn | E | 2022-07-11 18:33:04 | -0.5 | y | 0 | 803 | 19 |
| IIEES SC | SHRT | Z | EPn | E | 2022-07-11 18:33:22 | -0.3 | y | 0 | 945 | 36 |
| IIEES SC | TBJM | Z | EPn | E | 2022-07-11 18:32:40 | -61.1 | n | 4 | 1095 | 31 |
