Magnitude |
3.4 |
| Date & Time (UTC) | 2022-08-15 00:27:20.2 |
| Date & Time (Local) | 1401/5/24 04:57:20.2 |

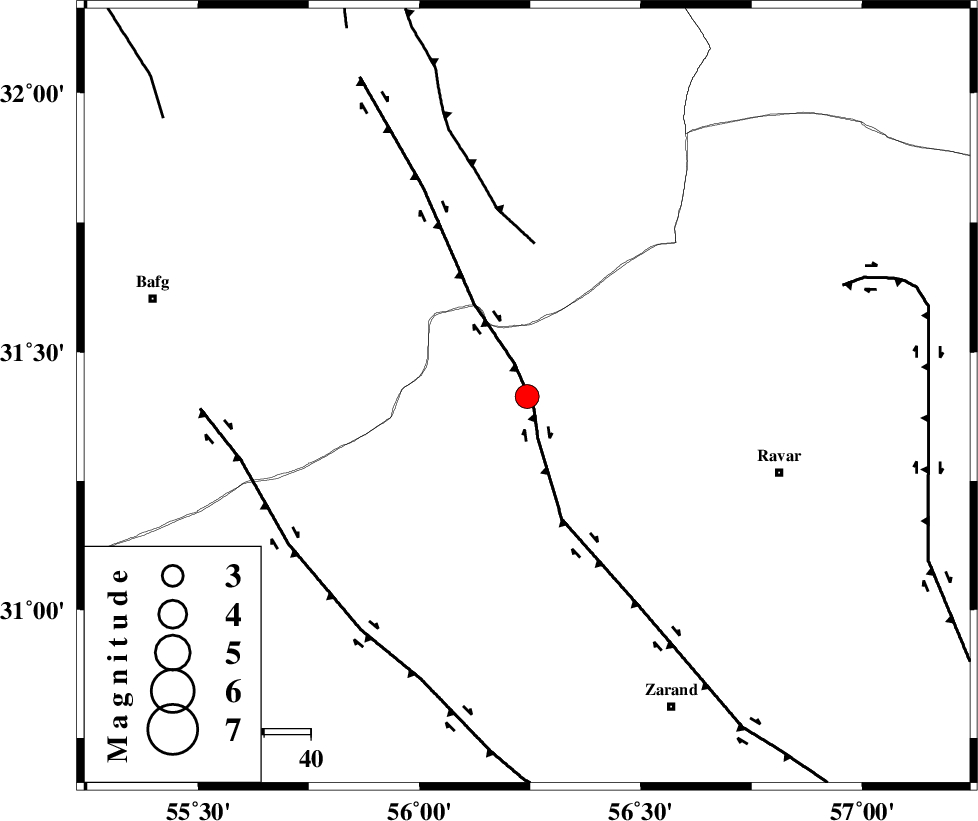

| Location | Lat:31.413 Lon: 56.243 |
| Region | Kerman Province, 56 km North-West of Ravar |
Nearest Cities |
|
| 5 km of Kuhbanan, Kerman Province | |
| 7 km North of Jor, Kerman Province | |
| 25 km East of Basab, Yazd Province | |
| 29 km South of Asfih, Yazd Province | |
| 34 km North West of Toghroljerd, Kerman Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 3 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 33 km | |
| DARIVAN_F (Length: 131 km) , Distance to epicenter: 60 km | |
| Number of Phases | 10 |
| RMS | 0.4 |
| Number of Stations | 10 |
| Error in Latitude | 2.5 km |
| Error in Longitude | 2.5 km |
| Error in Depth | 13.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 172775 | IIEES SC | KRBR | Z | 1 | 1 | 2022-08-15 00:27:47 | 2022-08-15 03:54:00 | n |
| 172776 | IIEES SC | YZKH | Z | 2 | 1 | 2022-08-15 00:27:50 | 2022-08-15 03:54:00 | n |
| 172777 | IIEES SC | TABS | Z | 0.3 | 1 | 2022-08-15 00:28:00 | 2022-08-15 03:54:00 | n |
| 172778 | IIEES SC | BSRN | Z | 0.4 | 1 | 2022-08-15 00:28:02 | 2022-08-15 03:54:00 | n |
| 172779 | IIEES SC | SHRT | Z | 0.04 | 1 | 2022-08-15 00:28:24 | 2022-08-15 03:54:00 | n |
| 172780 | IIEES SC | ABGH | Z | 0.01 | 1 | 2022-08-15 00:28:44 | 2022-08-15 03:54:00 | n |
| 172781 | IIEES SC | DAMV | Z | 0.04 | 1 | 2022-08-15 00:28:44 | 2022-08-15 03:54:00 | n |
| 172782 | IIEES SC | CHTH | Z | 0.02 | 1 | 2022-08-15 00:28:54 | 2022-08-15 03:54:00 | n |
| 172783 | IIEES SC | BJRD | Z | 0.009 | 1 | 2022-08-15 00:28:55 | 2022-08-15 03:54:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | KRBR | Z | EPg | E | 2022-08-15 00:27:47 | 0.1 | y | 0 | 166 | 163 |
| IIEES SC | YZKH | Z | EPg | E | 2022-08-15 00:27:50 | -0.6 | y | 0 | 190 | 305 |
| IIEES SC | TABS | Z | EPn | E | 2022-08-15 00:28:00 | -0.5 | y | 0 | 261 | 18 |
| IIEES SC | BSRN | Z | EPn | E | 2022-08-15 00:28:02 | -0.3 | y | 0 | 280 | 77 |
| IIEES SC | SHRT | Z | EPn | E | 2022-08-15 00:28:24 | 0 | y | 0 | 454 | 57 |
| IIEES SC | SHRO | Z | EPn | E | 2022-08-15 00:28:19 | -11.7 | n | 4 | 510 | 358 |
| IIEES SC | ABGH | Z | EPn | E | 2022-08-15 00:28:44 | 1.1 | y | 0 | 605 | 347 |
| IIEES SC | DAMV | Z | EPn | E | 2022-08-15 00:28:44 | 0.3 | y | 0 | 613 | 320 |
| IIEES SC | CHTH | Z | EPn | E | 2022-08-15 00:28:54 | 0.8 | y | 0 | 688 | 316 |
| IIEES SC | BJRD | Z | EPn | E | 2022-08-15 00:28:55 | -0.1 | y | 0 | 706 | 9 |
