Magnitude |
4.5 |
| Date & Time (UTC) | 2022-11-12 22:48:02.7 |
| Date & Time (Local) | 1401/8/22 02:18:02.7 |

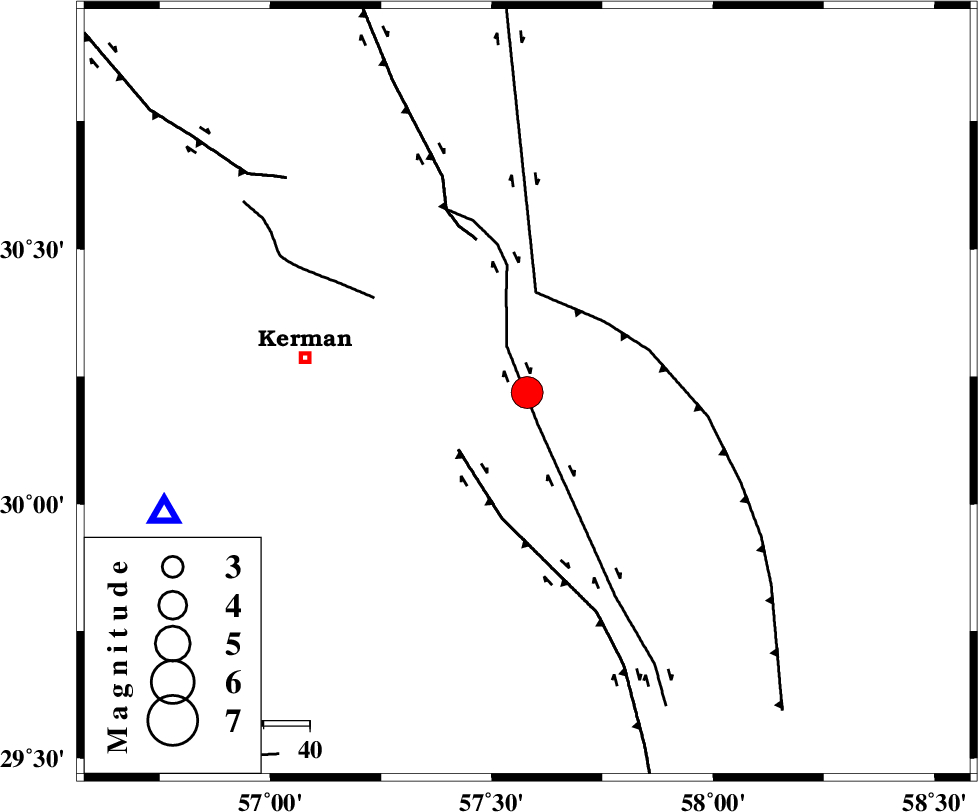

| Location | Lat:30.219 Lon: 57.58 |
| Region | Kerman Province, 49 km -East of Kerman |
Nearest Cities |
|
| 3 km North of Sirch, Kerman Province | |
| 13 km North of Jushan, Kerman Province | |
| 25 km South West of Shahdad, Kerman Province | |
| 34 km North East of Langar, Kerman Province | |
| 34 km North East of Mahan, Kerman Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 7 km | |
| GOWK_F (Length: 152 km) , Distance to epicenter: 19 km | |
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 22 km | |
| Number of Phases | 33 |
| RMS | 0.6 |
| Number of Stations | 33 |
| Error in Latitude | 1.3 km |
| Error in Longitude | 1.3 km |
| Error in Depth | 9.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 174953 | IIEES SC | KBAM | Z | 60 | 1 | 2022-11-12 22:48:26 | 2022-11-13 05:02:00 | n |
| 174954 | IIEES SC | KBAM | Z | 60 | 1 | 2022-11-12 22:48:44 | 2022-11-13 05:02:00 | n |
| 174955 | IIEES SC | BSRN | Z | 8 | 1 | 2022-11-12 22:48:40 | 2022-11-13 05:02:00 | n |
| 174956 | IIEES SC | BNDS | Z | 1 | 1 | 2022-11-12 22:48:53 | 2022-11-13 05:02:00 | n |
| 174957 | IIEES SC | TAFT | Z | 3 | 1 | 2022-11-12 22:48:56 | 2022-11-13 05:02:00 | n |
| 174958 | IIEES SC | YZKH | Z | 3 | 1 | 2022-11-12 22:48:57 | 2022-11-13 05:02:00 | n |
| 174959 | IIEES SC | KKHK | Z | 3 | 1 | 2022-11-12 22:49:04 | 2022-11-13 05:02:00 | n |
| 174960 | IIEES SC | SHRT | Z | 0.7 | 1 | 2022-11-12 22:49:08 | 2022-11-13 05:02:00 | n |
| 174961 | IIEES SC | JSSH | Z | 0.4 | 1 | 2022-11-12 22:49:10 | 2022-11-13 05:02:00 | n |
| 174962 | IIEES SC | NASN | Z | 0.3 | 1 | 2022-11-12 22:49:17 | 2022-11-13 05:02:00 | n |
| 174963 | IIEES SC | CHBR | Z | 0.4 | 1 | 2022-11-12 22:49:24 | 2022-11-13 05:02:00 | n |
| 174964 | IIEES SC | UOSS | Z | 0.2 | 1 | 2022-11-12 22:49:24 | 2022-11-13 05:02:00 | n |
| 174965 | IIEES SC | AHRM | Z | 0.1 | 1 | 2022-11-12 22:49:27 | 2022-11-13 05:02:00 | n |
| 174966 | IIEES SC | GHVR | Z | 0.4 | 1 | 2022-11-12 22:49:46 | 2022-11-13 05:02:00 | n |
| 174967 | IIEES SC | KAGH | Z | 0.04 | 1 | 2022-11-12 22:49:47 | 2022-11-13 05:02:00 | n |
| 174968 | IIEES SC | KHMZ | Z | 0.1 | 1 | 2022-11-12 22:49:52 | 2022-11-13 05:02:00 | n |
| 174969 | IIEES SC | BJRD | Z | 0.05 | 1 | 2022-11-12 22:49:53 | 2022-11-13 05:02:00 | n |
| 174970 | IIEES SC | MRVT | Z | 0.05 | 1 | 2022-11-12 22:49:55 | 2022-11-13 05:02:00 | n |
| 174971 | IIEES SC | GTMR | Z | 0.08 | 1 | 2022-11-12 22:49:54 | 2022-11-13 05:02:00 | n |
| 174972 | IIEES SC | ASAO | Z | 0.08 | 1 | 2022-11-12 22:49:57 | 2022-11-13 05:02:00 | n |
| 174973 | IIEES SC | CHTH | Z | 0.09 | 1 | 2022-11-12 22:49:58 | 2022-11-13 05:02:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | KBAM | Z | EPg | E | 2022-11-12 22:48:26 | -0.1 | y | 0 | 147 | 145 |
| IIEES SC | KBAM | Z | ESg | E | 2022-11-12 22:48:44 | -0.4 | y | 0 | 147 | 145 |
| IIEES SC | BSRN | Z | EPn | E | 2022-11-12 22:48:40 | -0.7 | y | 0 | 243 | 37 |
| IIEES SC | ZHSF | Z | EPn | E | 2022-11-12 22:48:46 | -3.8 | n | 4 | 315 | 102 |
| IIEES SC | BNDS | Z | EPn | E | 2022-11-12 22:48:53 | 0.1 | y | 0 | 341 | 204 |
| IIEES SC | TAFT | Z | EPn | E | 2022-11-12 22:48:56 | 0.2 | y | 0 | 366 | 297 |
| IIEES SC | YZKH | Z | EPn | E | 2022-11-12 22:48:57 | 0.4 | y | 0 | 373 | 310 |
| IIEES SC | TABS | Z | EPn | E | 2022-11-12 22:48:58 | 0.1 | y | 0 | 383 | 353 |
| IIEES SC | KKHK | Z | EPn | E | 2022-11-12 22:49:04 | -1.2 | y | 0 | 446 | 13 |
| IIEES SC | SHRT | Z | EPn | E | 2022-11-12 22:49:08 | 0.5 | y | 0 | 458 | 34 |
| IIEES SC | JSSH | Z | EPn | E | 2022-11-12 22:49:10 | 0.7 | y | 0 | 478 | 182 |
| IIEES SC | GHIR | Z | EPn | E | 2022-11-12 22:49:11 | -0.9 | y | 0 | 495 | 244 |
| IIEES SC | NASN | Z | EPn | E | 2022-11-12 22:49:17 | 0.2 | y | 0 | 536 | 302 |
| IIEES SC | LMD1 | Z | EPn | E | 2022-11-12 22:49:17 | 0.7 | y | 0 | 536 | 233 |
| IIEES SC | DARN | Z | EPn | E | 2022-11-12 22:49:18 | -0.7 | y | 0 | 550 | 358 |
| IIEES SC | SRVN | Z | EPn | E | 2022-11-12 22:49:21 | 0.3 | y | 0 | 564 | 124 |
| IIEES SC | CHBR | Z | EPn | E | 2022-11-12 22:49:24 | 0.9 | y | 0 | 587 | 151 |
| IIEES SC | UOSS | Z | EPn | E | 2022-11-12 22:49:24 | -0.6 | y | 0 | 600 | 193 |
| IIEES SC | TBJM | Z | EPn | E | 2022-11-12 22:49:27 | 0.1 | y | 0 | 616 | 25 |
| IIEES SC | AHRM | Z | EPn | E | 2022-11-12 22:49:27 | -0.8 | y | 0 | 627 | 256 |
| IIEES SC | SHRO | Z | EPn | E | 2022-11-12 22:49:26 | -5.9 | n | 4 | 658 | 347 |
| IIEES SC | MSHD | Z | EPn | E | 2022-11-12 22:49:32 | -5.3 | n | 4 | 700 | 15 |
| IIEES SC | GHVR | Z | EPn | E | 2022-11-12 22:49:46 | 1 | y | 0 | 761 | 308 |
| IIEES SC | ABGH | Z | EPn | E | 2022-11-12 22:49:47 | 1 | y | 0 | 768 | 340 |
| IIEES SC | KAGH | Z | EPn | E | 2022-11-12 22:49:47 | 0.6 | y | 0 | 777 | 17 |
| IIEES SC | GLO | Z | EPn | E | 2022-11-12 22:49:48 | 1.3 | y | 0 | 779 | 333 |
| IIEES SC | KHMZ | Z | EPn | E | 2022-11-12 22:49:52 | -0.2 | y | 0 | 819 | 298 |
| IIEES SC | BJRD | Z | EPn | E | 2022-11-12 22:49:53 | -0.3 | y | 0 | 830 | 359 |
| IIEES SC | MRVT | Z | EPn | E | 2022-11-12 22:49:55 | 0.5 | y | 0 | 837 | 351 |
| IIEES SC | GTMR | Z | EPn | E | 2022-11-12 22:49:54 | -0.8 | y | 0 | 844 | 287 |
| IIEES SC | ASAO | Z | EPn | E | 2022-11-12 22:49:57 | 0.1 | y | 0 | 858 | 304 |
| IIEES SC | CHTH | Z | EPn | E | 2022-11-12 22:49:58 | -0.6 | y | 0 | 872 | 316 |
| IIEES SC | SNGE | Z | EPn | E | 2022-11-12 22:50:27 | -0.5 | y | 0 | 1102 | 299 |
