Magnitude |
3.9 |
| Date & Time (UTC) | 2022-07-02 14:44:13.8 |
| Date & Time (Local) | 1401/4/11 19:14:13.8 |

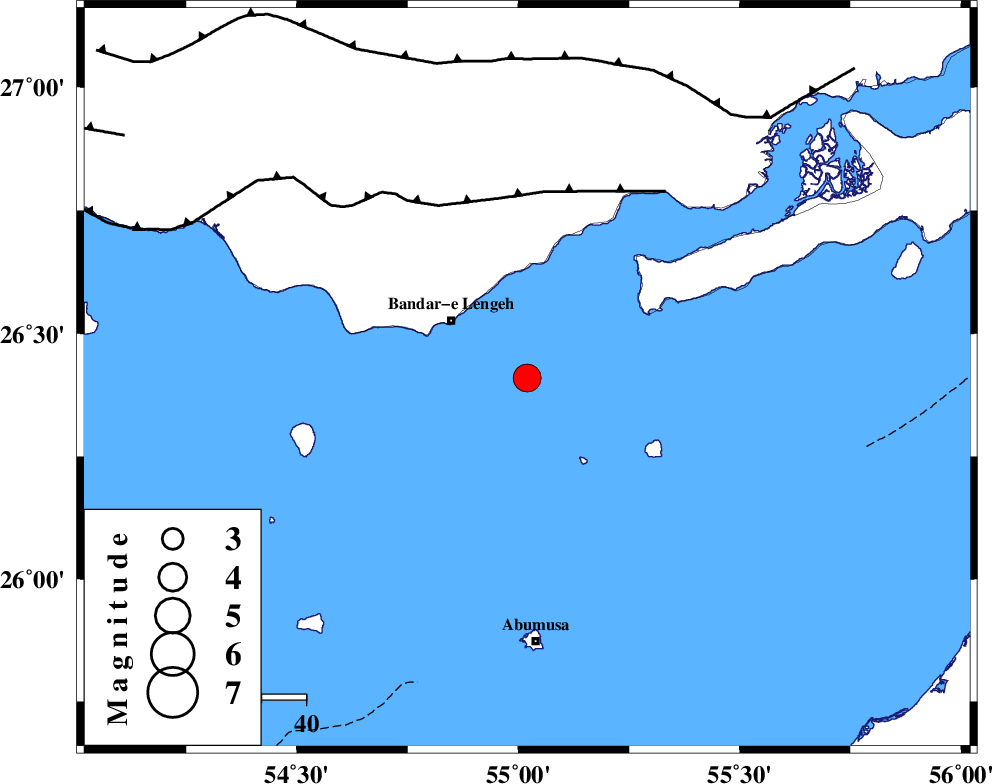

| Location | Lat:26.41 Lon: 55.02 |
| Region | Persian Gulf, 21 km South-East of Bandar-e lengeh |
Nearest Cities |
|
| 21 km South East of Bandar-e lengeh, Hormozgan Province | |
| 60 km North of Abu Musa, Hormozgan Province | |
| 82 km South West of Bandar-e khamir, Hormozgan Province | |
| 99 km South East of Jenah, Hormozgan Province | |
| 109 km South East of Bastak, Hormozgan Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| ZFF1 (Length: 165 km) , Distance to epicenter: 41 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 72 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 106 km | |
| Number of Phases | 26 |
| RMS | 0.3 |
| Number of Stations | 26 |
| Error in Latitude | 1 km |
| Error in Longitude | 1 km |
| Error in Depth | 3.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 175134 | IIEES SC | GHIR | Z | 0.4 | 1 | 2022-07-02 14:44:59 | 2022-11-16 06:50:00 | n |
| 175135 | IIEES SC | KRBR | Z | 0.2 | 1 | 2022-07-02 14:45:16 | 2022-11-16 06:50:00 | n |
| 175136 | IIEES SC | KRBR | Z | 0.2 | 1 | 2022-07-02 14:46:02 | 2022-11-16 06:50:00 | n |
| 175137 | IIEES SC | KBAM | Z | 0.2 | 1 | 2022-07-02 14:45:18 | 2022-11-16 06:50:00 | n |
| 175138 | IIEES SC | AHRM | Z | 0.2 | 1 | 2022-07-02 14:45:18 | 2022-11-16 06:50:00 | n |
| 175139 | IIEES SC | KLNJ | Z | 0.2 | 1 | 2022-07-02 14:45:39 | 2022-11-16 06:50:00 | n |
| 175140 | IIEES SC | YZKH | Z | 0.04 | 1 | 2022-07-02 14:45:45 | 2022-11-16 06:50:00 | n |
| 175141 | IIEES SC | BSRN | Z | 0.03 | 1 | 2022-07-02 14:45:53 | 2022-11-16 06:50:00 | n |
| 175142 | IIEES SC | SRVN | Z | 0.03 | 1 | 2022-07-02 14:45:55 | 2022-11-16 06:50:00 | n |
| 175143 | IIEES SC | ANAR | Z | 0.02 | 1 | 2022-07-02 14:45:56 | 2022-11-16 06:50:00 | n |
| 175144 | IIEES SC | GTMR | Z | 0.06 | 1 | 2022-07-02 14:46:12 | 2022-11-16 06:50:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | BNDS | Z | EPg | E | 2022-07-02 14:44:40 | -0.2 | y | 0 | 158 | 46 |
| IIEES SC | UOSS | Z | EPn | E | 2022-07-02 14:44:46 | 0 | y | 0 | 201 | 144 |
| IIEES SC | LMD1 | Z | EPn | E | 2022-07-02 14:44:48 | 0.1 | y | 0 | 211 | 299 |
| IIEES SC | LMD1 | Z | ES | E | 2022-07-02 14:45:05 | -8.2 | n | 4 | 211 | 299 |
| IIEES SC | GHIR | Z | EPn | E | 2022-07-02 14:44:59 | 0.7 | y | 0 | 289 | 316 |
| IIEES SC | GHIR | Z | ES | E | 2022-07-02 14:45:26 | -4.8 | n | 4 | 289 | 316 |
| IIEES SC | KRBR | Z | EPn | E | 2022-07-02 14:45:16 | 0.2 | y | 0 | 431 | 23 |
| IIEES SC | KRBR | Z | ES | E | 2022-07-02 14:46:02 | 0.1 | y | 0 | 431 | 23 |
| IIEES SC | KBAM | Z | EPn | E | 2022-07-02 14:45:18 | -0.1 | y | 0 | 454 | 48 |
| IIEES SC | AHRM | Z | EPn | E | 2022-07-02 14:45:18 | -0.4 | y | 0 | 457 | 307 |
| IIEES SC | MEH | Z | EPn | E | 2022-07-02 14:45:35 | 3.8 | n | 4 | 553 | 356 |
| IIEES SC | TAFT | Z | EPn | E | 2022-07-02 14:45:41 | 5.2 | n | 4 | 595 | 352 |
| IIEES SC | KLNJ | Z | EPn | E | 2022-07-02 14:45:39 | 0.8 | y | 0 | 610 | 327 |
| IIEES SC | YZKH | Z | EPn | E | 2022-07-02 14:45:45 | 0.2 | y | 0 | 664 | 356 |
| IIEES SC | BSRN | Z | EPn | E | 2022-07-02 14:45:53 | 0.2 | y | 0 | 734 | 33 |
| IIEES SC | NASN | Z | EPn | E | 2022-07-02 14:45:57 | 2.9 | n | 4 | 740 | 343 |
| IIEES SC | SRVN | Z | EPn | E | 2022-07-02 14:45:55 | 0.5 | y | 0 | 741 | 81 |
| IIEES SC | ANAR | Z | EPn | E | 2022-07-02 14:45:56 | -0.5 | y | 0 | 762 | 351 |
| IIEES SC | AHWZ | Z | EPn | E | 2022-07-02 14:46:04 | -0.5 | y | 0 | 827 | 311 |
| IIEES SC | TABS | Z | EPn | E | 2022-07-02 14:46:13 | 7.7 | n | 4 | 828 | 14 |
| IIEES SC | TABS | Z | ES | E | 2022-07-02 14:47:20 | -5.8 | n | 4 | 828 | 14 |
| IIEES SC | GTMR | Z | EPn | E | 2022-07-02 14:46:12 | 0.2 | y | 0 | 883 | 320 |
| IIEES SC | GTMR | Z | ES | E | 2022-07-02 14:47:31 | -6.5 | n | 4 | 883 | 320 |
| IIEES SC | KHMZ | Z | EPn | E | 2022-07-02 14:46:20 | 0.4 | y | 0 | 948 | 329 |
| IIEES SC | SHRT | Z | EPn | E | 2022-07-02 14:46:31 | 11.4 | n | 4 | 950 | 32 |
| IIEES SC | DAMV | Z | EPn | E | 2022-07-02 14:46:37 | 2.5 | n | 4 | 1063 | 344 |
