Magnitude |
3.4 |
| Date & Time (UTC) | 2022-07-02 09:51:16.3 |
| Date & Time (Local) | 1401/4/11 14:21:16.3 |

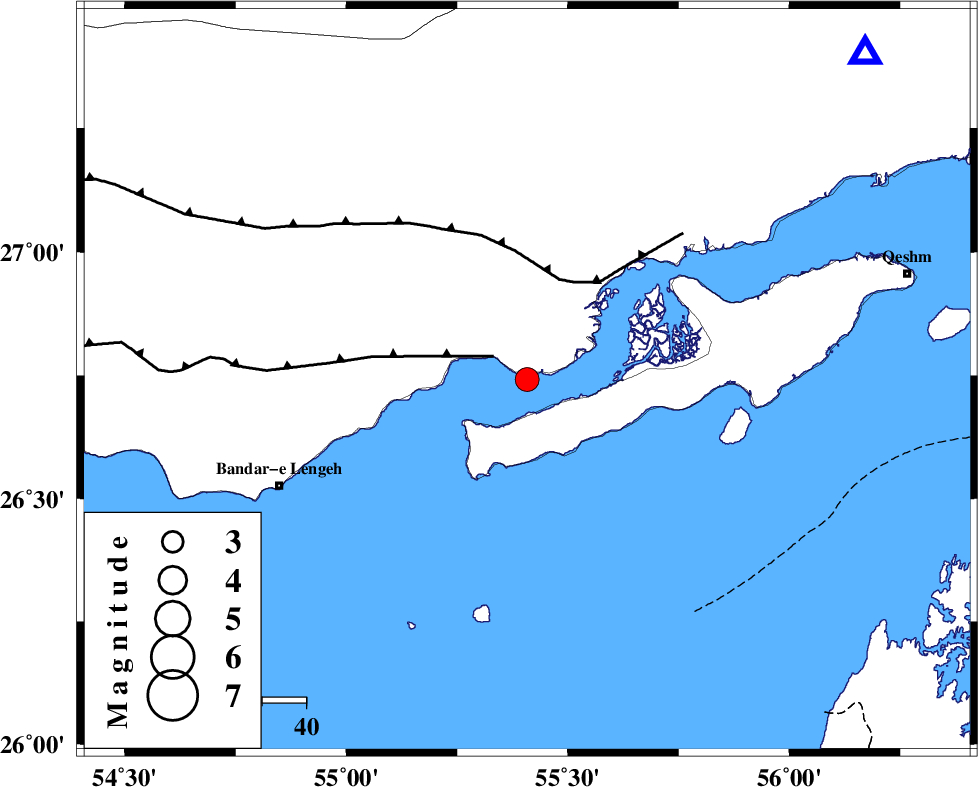

| Location | Lat:26.741 Lon: 55.408 |
| Region | Persian Gulf, 60 km North-East of Bandar-e lengeh |
Nearest Cities |
|
| 29 km South West of Bandar-e khamir, Hormozgan Province | |
| 60 km North East of Bandar-e lengeh, Hormozgan Province | |
| 65 km West of Suza, Hormozgan Province | |
| 88 km South West of Qeshm, Hormozgan Province | |
| 100 km South West of Bandar-e abbas, Hormozgan Province | |
| Depth | 19 km |
| Agency | |
Faults within 150 km: |
|
| ZFF1 (Length: 165 km) , Distance to epicenter: 9 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 24 km | |
| LAR_F (Length: 99 km) , Distance to epicenter: 113 km | |
| Number of Phases | 23 |
| RMS | 0.2 |
| Number of Stations | 23 |
| Error in Latitude | 0.7 km |
| Error in Longitude | 0.7 km |
| Error in Depth | 2.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 175417 | IIEES SC | UOSS | Z | 0.2 | 1 | 2022-07-02 09:51:50 | 2022-11-23 06:39:00 | n |
| 175418 | IIEES SC | LMD1 | Z | 0.9 | 1 | 2022-07-02 09:51:52 | 2022-11-23 06:39:00 | n |
| 175419 | IIEES SC | KRBR | Z | 0.1 | 1 | 2022-07-02 09:52:10 | 2022-11-23 06:39:00 | n |
| 175420 | IIEES SC | KBAM | Z | 0.1 | 1 | 2022-07-02 09:52:13 | 2022-11-23 06:39:00 | n |
| 175421 | IIEES SC | AHRM | Z | 0.03 | 1 | 2022-07-02 09:52:21 | 2022-11-23 06:39:00 | n |
| 175422 | IIEES SC | MEH | Z | 0.02 | 1 | 2022-07-02 09:52:28 | 2022-11-23 06:39:00 | n |
| 175423 | IIEES SC | TAFT | Z | 0.04 | 1 | 2022-07-02 09:52:34 | 2022-11-23 06:39:00 | n |
| 175424 | IIEES SC | KLNJ | Z | 0.04 | 1 | 2022-07-02 09:52:38 | 2022-11-23 06:39:00 | n |
| 175425 | IIEES SC | ZHSF | Z | 0.02 | 1 | 2022-07-02 09:52:40 | 2022-11-23 06:39:00 | n |
| 175426 | IIEES SC | BSRN | Z | 0.02 | 1 | 2022-07-02 09:52:48 | 2022-11-23 06:39:00 | n |
| 175427 | IIEES SC | SRVN | Z | 0.02 | 1 | 2022-07-02 09:52:49 | 2022-11-23 06:39:00 | n |
| 175428 | IIEES SC | NASN | Z | 0.01 | 1 | 2022-07-02 09:52:52 | 2022-11-23 06:39:00 | n |
| 175429 | IIEES SC | TABS | Z | 0.01 | 1 | 2022-07-02 09:53:01 | 2022-11-23 06:39:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | BNDS | Z | EPg | E | 2022-07-02 09:51:34 | 0.1 | y | 0 | 105 | 46 |
| IIEES SC | BNDS | Z | ESg | E | 2022-07-02 09:51:46 | -0.1 | y | 0 | 105 | 46 |
| IIEES SC | UOSS | Z | EPn | E | 2022-07-02 09:51:50 | -0.1 | y | 0 | 214 | 158 |
| IIEES SC | LMD1 | Z | EPn | E | 2022-07-02 09:51:52 | 0.2 | y | 0 | 232 | 287 |
| IIEES SC | GHIR | Z | EPn | E | 2022-07-02 09:52:00 | 0 | y | 0 | 294 | 306 |
| IIEES SC | KRBR | Z | EPn | E | 2022-07-02 09:52:10 | -0.5 | y | 0 | 383 | 20 |
| IIEES SC | KBAM | Z | EPn | E | 2022-07-02 09:52:13 | 0.1 | y | 0 | 400 | 48 |
| IIEES SC | AHRM | Z | EPn | E | 2022-07-02 09:52:21 | -0.3 | y | 0 | 468 | 300 |
| IIEES SC | MEH | Z | EPn | E | 2022-07-02 09:52:28 | 0.5 | y | 0 | 521 | 351 |
| IIEES SC | CHBR | Z | EPn | E | 2022-07-02 09:52:28 | 0.2 | y | 0 | 523 | 104 |
| IIEES SC | TAFT | Z | EPn | E | 2022-07-02 09:52:34 | 0.7 | y | 0 | 565 | 348 |
| IIEES SC | KLNJ | Z | EPn | E | 2022-07-02 09:52:38 | 0.4 | y | 0 | 602 | 322 |
| IIEES SC | ZHSF | Z | EPn | E | 2022-07-02 09:52:40 | 0.1 | y | 0 | 615 | 59 |
| IIEES SC | YZKH | Z | EPn | E | 2022-07-02 09:52:40 | -1.6 | n | 4 | 631 | 353 |
| IIEES SC | BSRN | Z | EPn | E | 2022-07-02 09:52:48 | -0.2 | y | 0 | 682 | 32 |
| IIEES SC | SRVN | Z | EPn | E | 2022-07-02 09:52:49 | -0.5 | y | 0 | 697 | 84 |
| IIEES SC | NASN | Z | EPn | E | 2022-07-02 09:52:52 | -0.8 | y | 0 | 717 | 339 |
| IIEES SC | ANAR | Z | EPn | E | 2022-07-02 09:52:52 | -2.6 | n | 4 | 733 | 347 |
| IIEES SC | TABS | Z | EPn | E | 2022-07-02 09:53:01 | 0.5 | y | 0 | 783 | 12 |
| IIEES SC | KKHK | Z | EPn | E | 2022-07-02 09:53:12 | 0.2 | y | 0 | 876 | 21 |
| IIEES SC | GTMR | Z | EPn | E | 2022-07-02 09:53:07 | -5.3 | n | 4 | 880 | 316 |
| IIEES SC | ASAO | Z | EPn | E | 2022-07-02 09:53:28 | -0.7 | y | 0 | 1008 | 329 |
| IIEES SC | SHRO | Z | EPn | E | 2022-07-02 09:53:31 | 0.1 | y | 0 | 1029 | 3 |
