Magnitude |
3.3 |
| Date & Time (UTC) | 2022-06-15 23:36:39.0 |
| Date & Time (Local) | 1401/3/26 04:06:39.0 |

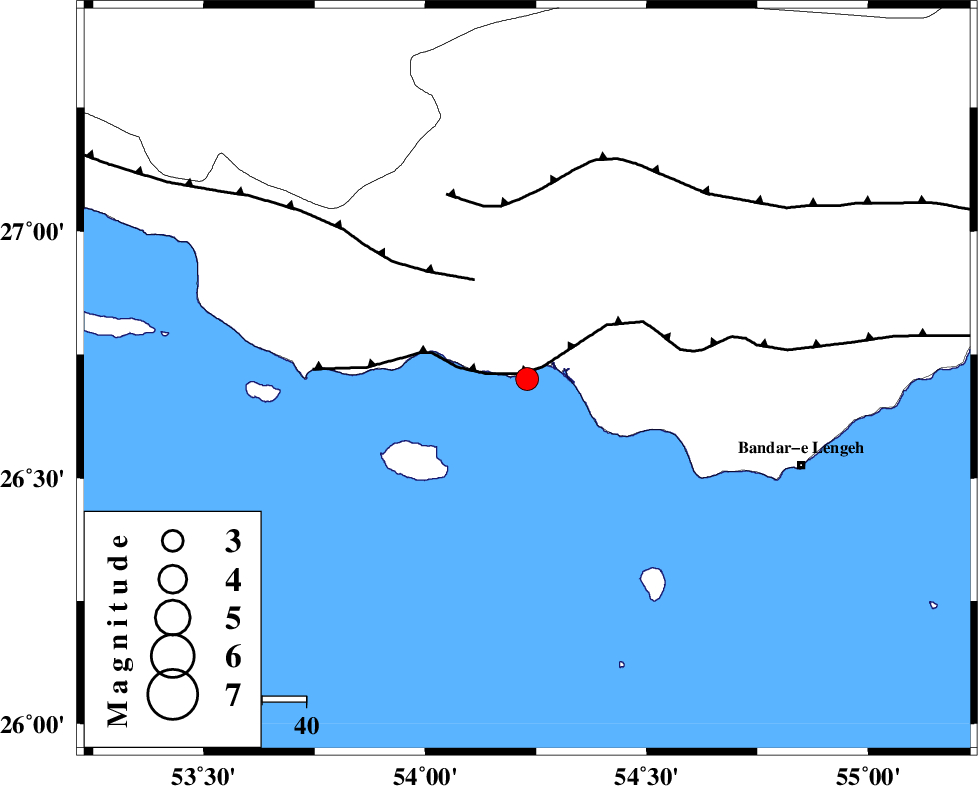

| Location | Lat:26.701 Lon: 54.23 |
| Region | Persian Gulf, 57 km South-West of Bastak |
Nearest Cities |
|
| 35 km South of Jenah, Hormozgan Province | |
| 57 km South West of Bastak, Hormozgan Province | |
| 65 km North West of Bandar-e lengeh, Hormozgan Province | |
| 72 km South East of Ahl, Fars Province | |
| 84 km South East of Ashkenan, Fars Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| ZFF1 (Length: 165 km) , Distance to epicenter: 2 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 25 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 39 km | |
| Number of Phases | 23 |
| RMS | 0.3 |
| Number of Stations | 23 |
| Error in Latitude | 0.9 km |
| Error in Longitude | 0.9 km |
| Error in Depth | 372.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 178471 | IIEES SC | UOSS | Z | 0.09 | 1 | 2022-06-15 23:37:21 | 2023-01-30 08:31:00 | n |
| 178472 | IIEES SC | AHRM | Z | 0.04 | 1 | 2022-06-15 23:37:32 | 2023-01-30 08:31:00 | n |
| 178473 | IIEES SC | KRBR | Z | 0.07 | 1 | 2022-06-15 23:37:42 | 2023-01-30 08:31:00 | n |
| 178474 | IIEES SC | KBAM | Z | 0.07 | 1 | 2022-06-15 23:37:47 | 2023-01-30 08:31:00 | n |
| 178475 | IIEES SC | MEH | Z | 0.008 | 1 | 2022-06-15 23:37:51 | 2023-01-30 08:31:00 | n |
| 178476 | IIEES SC | KLNJ | Z | 0.05 | 1 | 2022-06-15 23:37:54 | 2023-01-30 08:31:00 | n |
| 178477 | IIEES SC | TAFT | Z | 0.03 | 1 | 2022-06-15 23:37:56 | 2023-01-30 08:31:00 | n |
| 178478 | IIEES SC | YZKH | Z | 0.01 | 1 | 2022-06-15 23:38:05 | 2023-01-30 08:31:00 | n |
| 178479 | IIEES SC | NASN | Z | 0.02 | 1 | 2022-06-15 23:38:12 | 2023-01-30 08:31:00 | n |
| 178480 | IIEES SC | ZHSF | Z | 0.009 | 1 | 2022-06-15 23:38:17 | 2023-01-30 08:31:00 | n |
| 178481 | IIEES SC | ANAR | Z | 0.009 | 1 | 2022-06-15 23:38:15 | 2023-01-30 08:31:00 | n |
| 178482 | IIEES SC | BSRN | Z | 0.008 | 1 | 2022-06-15 23:38:21 | 2023-01-30 08:31:00 | n |
| 178483 | IIEES SC | GTMR | Z | 0.02 | 1 | 2022-06-15 23:38:28 | 2023-01-30 08:31:00 | n |
| 178484 | IIEES SC | TABS | Z | 0.008 | 1 | 2022-06-15 23:38:28 | 2023-01-30 08:31:00 | n |
| 178485 | IIEES SC | KHMZ | Z | 0.02 | 1 | 2022-06-15 23:38:36 | 2023-01-30 08:31:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | LMD1 | Z | EPg | E | 2022-06-15 23:37:03 | 3 | n | 4 | 127 | 304 |
| IIEES SC | GHIR | Z | EPn | E | 2022-06-15 23:37:13 | -0.1 | y | 0 | 214 | 325 |
| IIEES SC | UOSS | Z | EPn | E | 2022-06-15 23:37:21 | 0 | y | 0 | 278 | 134 |
| IIEES SC | AHRM | Z | EPn | E | 2022-06-15 23:37:32 | -0.8 | y | 0 | 376 | 310 |
| IIEES SC | KRBR | Z | EPn | E | 2022-06-15 23:37:42 | 0.2 | y | 0 | 440 | 34 |
| IIEES SC | KBAM | Z | EPn | E | 2022-06-15 23:37:47 | -0.6 | y | 0 | 496 | 57 |
| IIEES SC | MEH | Z | EPn | E | 2022-06-15 23:37:51 | -0.6 | y | 0 | 521 | 4 |
| IIEES SC | KLNJ | Z | EPn | E | 2022-06-15 23:37:54 | 0.3 | y | 0 | 542 | 332 |
| IIEES SC | TAFT | Z | EPn | E | 2022-06-15 23:37:56 | 0 | y | 0 | 557 | 359 |
| IIEES SC | YZKH | Z | EPn | E | 2022-06-15 23:38:05 | 0.3 | y | 0 | 632 | 3 |
| IIEES SC | NASN | Z | EPn | E | 2022-06-15 23:38:12 | -0.7 | y | 0 | 690 | 349 |
| IIEES SC | ZHSF | Z | EPn | E | 2022-06-15 23:38:17 | 0.7 | y | 0 | 718 | 63 |
| IIEES SC | ANAR | Z | EPn | E | 2022-06-15 23:38:15 | -0.8 | y | 0 | 721 | 356 |
| IIEES SC | BSRN | Z | EPn | E | 2022-06-15 23:38:21 | 0.7 | y | 0 | 753 | 39 |
| IIEES SC | GTMR | Z | EPn | E | 2022-06-15 23:38:28 | 0.6 | y | 0 | 809 | 322 |
| IIEES SC | TABS | Z | EPn | E | 2022-06-15 23:38:28 | -0.7 | y | 0 | 819 | 20 |
| IIEES SC | KHMZ | Z | EPn | E | 2022-06-15 23:38:36 | 0.1 | y | 0 | 882 | 332 |
| IIEES SC | RAYN | Z | EPn | E | 2022-06-15 23:38:44 | 0 | y | 0 | 948 | 248 |
| IIEES SC | ASAO | Z | EPn | E | 2022-06-15 23:38:45 | -0.3 | y | 0 | 959 | 335 |
| IIEES SC | SHRT | Z | EPn | E | 2022-06-15 23:38:47 | 0.1 | y | 0 | 966 | 37 |
| IIEES SC | ILBA | Z | EPn | E | 2022-06-15 23:39:02 | 0.2 | y | 0 | 1089 | 315 |
| IIEES SC | SNGE | Z | EPn | E | 2022-06-15 23:39:08 | -0.5 | y | 0 | 1140 | 325 |
| IIEES SC | DHR | Z | EPn | E | 2022-06-15 23:39:12 | 0.6 | y | 0 | 1162 | 320 |
