Magnitude |
3.6 |
| Date & Time (UTC) | 2022-06-15 19:53:54.8 |
| Date & Time (Local) | 1401/3/26 00:23:54.8 |

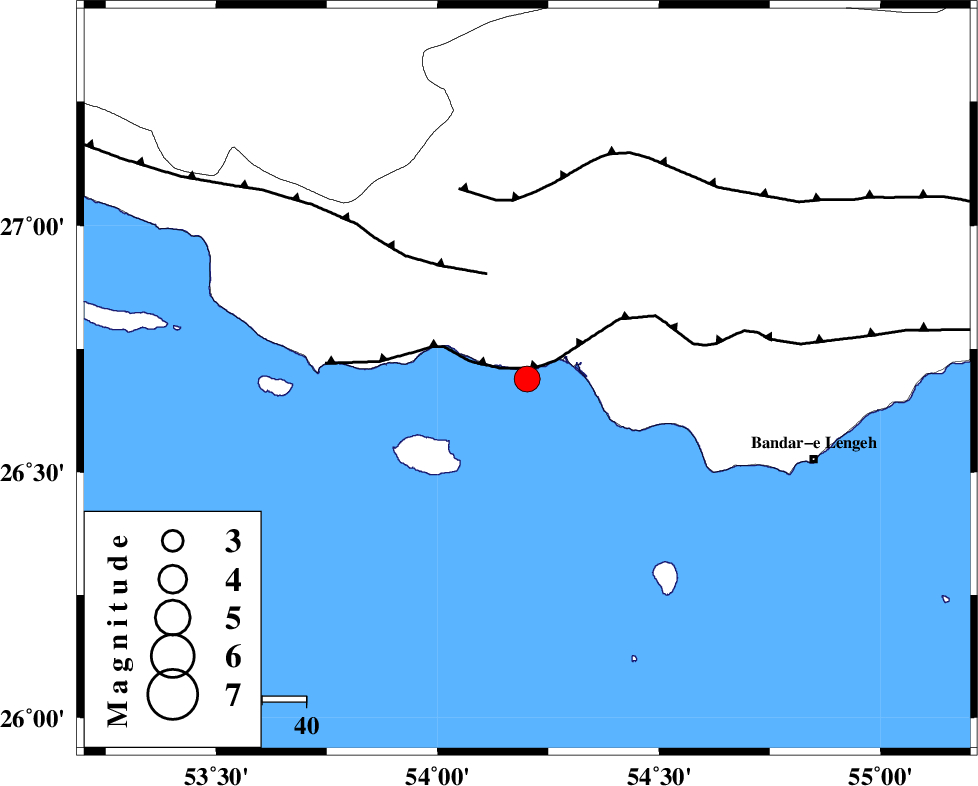

| Location | Lat:26.689 Lon: 54.202 |
| Region | Persian Gulf, 59 km South-West of Bastak |
Nearest Cities |
|
| 37 km South of Jenah, Hormozgan Province | |
| 59 km South West of Bastak, Hormozgan Province | |
| 67 km North West of Bandar-e lengeh, Hormozgan Province | |
| 71 km South East of Ahl, Fars Province | |
| 83 km South East of Ashkenan, Fars Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| ZFF1 (Length: 165 km) , Distance to epicenter: 3 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 25 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 40 km | |
| Number of Phases | 27 |
| RMS | 0.3 |
| Number of Stations | 27 |
| Error in Latitude | 0.8 km |
| Error in Longitude | 0.8 km |
| Error in Depth | 329.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 178575 | IIEES SC | AHRM | Z | 0.1 | 1 | 2022-06-15 19:54:50 | 2023-01-31 10:42:00 | n |
| 178576 | IIEES SC | KRBR | Z | 0.2 | 1 | 2022-06-15 19:54:58 | 2023-01-31 10:42:00 | n |
| 178577 | IIEES SC | KBAM | Z | 0.1 | 1 | 2022-06-15 19:55:04 | 2023-01-31 10:42:00 | n |
| 178578 | IIEES SC | KLNJ | Z | 0.1 | 1 | 2022-06-15 19:55:10 | 2023-01-31 10:42:00 | n |
| 178579 | IIEES SC | TAFT | Z | 0.06 | 1 | 2022-06-15 19:55:12 | 2023-01-31 10:42:00 | n |
| 178580 | IIEES SC | YZKH | Z | 0.03 | 1 | 2022-06-15 19:55:22 | 2023-01-31 10:42:00 | n |
| 178581 | IIEES SC | NASN | Z | 0.02 | 1 | 2022-06-15 19:55:28 | 2023-01-31 10:42:00 | n |
| 178582 | IIEES SC | ZHSF | Z | 0.01 | 1 | 2022-06-15 19:55:32 | 2023-01-31 10:42:00 | n |
| 178583 | IIEES SC | ANAR | Z | 0.02 | 1 | 2022-06-15 19:55:33 | 2023-01-31 10:42:00 | n |
| 178584 | IIEES SC | BSRN | Z | 0.02 | 1 | 2022-06-15 19:55:35 | 2023-01-31 10:42:00 | n |
| 178585 | IIEES SC | SRVN | Z | 0.02 | 1 | 2022-06-15 19:55:43 | 2023-01-31 10:42:00 | n |
| 178586 | IIEES SC | TABS | Z | 0.02 | 1 | 2022-06-15 19:55:44 | 2023-01-31 10:42:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | LMD1 | Z | EPg | E | 2022-06-15 19:54:20 | 4.4 | n | 4 | 126 | 305 |
| IIEES SC | GHIR | Z | EPn | E | 2022-06-15 19:54:30 | 0.7 | y | 0 | 214 | 326 |
| IIEES SC | UOSS | Z | EPn | E | 2022-06-15 19:54:37 | 0.1 | y | 0 | 279 | 134 |
| IIEES SC | AHRM | Z | EPn | E | 2022-06-15 19:54:50 | 1 | y | 0 | 374 | 310 |
| IIEES SC | KRBR | Z | EPn | E | 2022-06-15 19:54:58 | 0.5 | y | 0 | 443 | 35 |
| IIEES SC | KBAM | Z | EPn | E | 2022-06-15 19:55:04 | -0.1 | y | 0 | 499 | 57 |
| IIEES SC | MEH | Z | EPn | E | 2022-06-15 19:55:07 | -0.5 | y | 0 | 523 | 4 |
| IIEES SC | KLNJ | Z | EPn | E | 2022-06-15 19:55:10 | 0.1 | y | 0 | 542 | 332 |
| IIEES SC | TAFT | Z | EPn | E | 2022-06-15 19:55:12 | 0 | y | 0 | 558 | 360 |
| IIEES SC | YZKH | Z | EPn | E | 2022-06-15 19:55:22 | 0.6 | y | 0 | 633 | 3 |
| IIEES SC | NASN | Z | EPn | E | 2022-06-15 19:55:28 | -0.3 | y | 0 | 691 | 349 |
| IIEES SC | ZHSF | Z | EPn | E | 2022-06-15 19:55:32 | -0.2 | y | 0 | 722 | 63 |
| IIEES SC | ANAR | Z | EPn | E | 2022-06-15 19:55:33 | 0.5 | y | 0 | 722 | 356 |
| IIEES SC | BSRN | Z | EPn | E | 2022-06-15 19:55:35 | -0.8 | y | 0 | 756 | 39 |
| IIEES SC | GTMR | Z | EPn | E | 2022-06-15 19:55:43 | 0.6 | y | 0 | 809 | 322 |
| IIEES SC | SRVN | Z | EPn | E | 2022-06-15 19:55:43 | -0.7 | y | 0 | 817 | 84 |
| IIEES SC | TABS | Z | EPn | E | 2022-06-15 19:55:44 | -0.1 | y | 0 | 821 | 20 |
| IIEES SC | KHMZ | Z | EPn | E | 2022-06-15 19:55:51 | -0.5 | y | 0 | 882 | 332 |
| IIEES SC | RAYN | Z | EPn | E | 2022-06-15 19:55:59 | -0.1 | y | 0 | 945 | 248 |
| IIEES SC | ASAO | Z | EPn | E | 2022-06-15 19:56:02 | 0.1 | y | 0 | 959 | 335 |
| IIEES SC | SHRT | Z | EPn | E | 2022-06-15 19:56:02 | -0.4 | y | 0 | 969 | 37 |
| IIEES SC | DAMV | Z | EPn | E | 2022-06-15 19:56:08 | 0.1 | y | 0 | 1014 | 348 |
| IIEES SC | SHRO | Z | EPn | E | 2022-06-15 19:56:13 | 0 | y | 0 | 1048 | 9 |
| IIEES SC | ILBA | Z | EPn | E | 2022-06-15 19:56:17 | -0.2 | y | 0 | 1088 | 315 |
| IIEES SC | TBJM | Z | EPn | E | 2022-06-15 19:56:21 | -0.6 | y | 0 | 1117 | 32 |
| IIEES SC | SNGE | Z | EPn | E | 2022-06-15 19:56:24 | -0.4 | y | 0 | 1139 | 325 |
| IIEES SC | DHR | Z | EPn | E | 2022-06-15 19:56:27 | 0.2 | y | 0 | 1162 | 320 |
