Magnitude |
3.6 |
| Date & Time (UTC) | 2023-02-09 18:18:09.9 |
| Date & Time (Local) | 1401/11/20 21:48:09.9 |

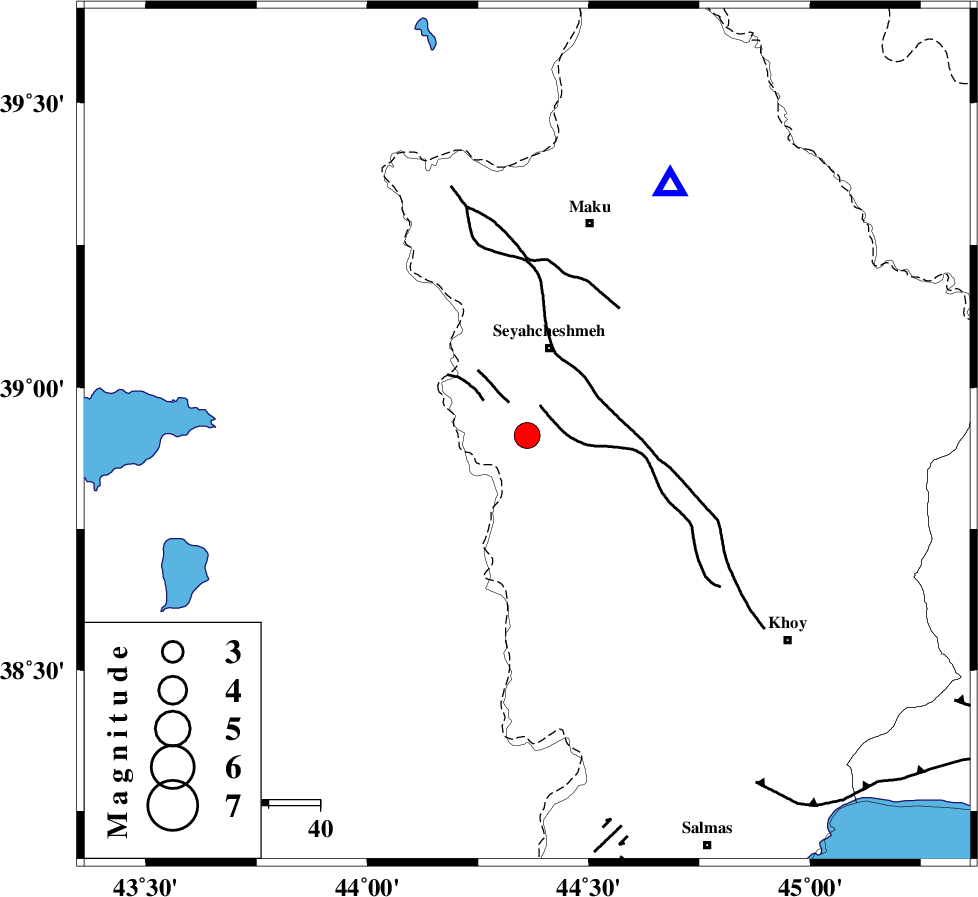

| Location | Lat:38.915 Lon: 44.361 |
| Region | Azarbaijan Gharbi Province, 18 km South of Seyah Cheshmah |
Nearest Cities |
|
| 18 km South of Seyah Cheshmah, Azarbaijan Gharbi Province | |
| 18 km South East of Sheykh selu-e paein, Azarbaijan Gharbi Province | |
| 20 km North West of Zarabad, Azarbaijan Gharbi Province | |
| 23 km South of Zavieh, Azarbaijan Gharbi Province | |
| 23 km South East of Sheykh selu-e bala, Azarbaijan Gharbi Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 7 km | |
| SALMAS (Length: 20 km) , Distance to epicenter: 79 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 82 km | |
| Number of Phases | 12 |
| RMS | 0.4 |
| Number of Stations | 12 |
| Error in Latitude | 1.4 km |
| Error in Longitude | 1.4 km |
| Error in Depth | 3.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 178882 | IIEES SC | MAKU | Z | 7 | 1 | 2023-02-09 18:18:19 | 2023-02-13 04:36:00 | n |
| 178883 | IIEES SC | GNI | Z | 4 | 1 | 2023-02-09 18:18:33 | 2023-02-13 04:36:00 | n |
| 178884 | IIEES SC | GURO | Z | 0.6 | 1 | 2023-02-09 18:18:43 | 2023-02-13 04:36:00 | n |
| 178885 | IIEES SC | MAHB | Z | 0.4 | 1 | 2023-02-09 18:18:51 | 2023-02-13 04:36:00 | n |
| 178886 | IIEES SC | GRMI | Z | 0.5 | 1 | 2023-02-09 18:18:56 | 2023-02-13 04:36:00 | n |
| 178887 | IIEES SC | SRSL | Z | 0.3 | 1 | 2023-02-09 18:18:57 | 2023-02-13 04:36:00 | n |
| 178888 | IIEES SC | DHR | Z | 0.1 | 1 | 2023-02-09 18:19:21 | 2023-02-13 04:36:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | MAKU | Z | EPg | E | 2023-02-09 18:18:19 | -0.7 | y | 0 | 56 | 30 |
| IIEES SC | MRD | Z | EPg | E | 2023-02-09 18:18:28 | -1.7 | n | 4 | 119 | 101 |
| IIEES SC | GNI | Z | EPg | E | 2023-02-09 18:18:33 | 0.4 | y | 0 | 141 | 13 |
| IIEES SC | AZR | Z | EPg | E | 2023-02-09 18:18:41 | -0.8 | y | 0 | 198 | 134 |
| IIEES SC | GURO | Z | EPn | E | 2023-02-09 18:18:43 | -0.3 | y | 0 | 206 | 259 |
| IIEES SC | MAHB | Z | EPn | E | 2023-02-09 18:18:51 | 0.3 | y | 0 | 266 | 154 |
| IIEES SC | BGD | Z | EPn | E | 2023-02-09 18:18:52 | 0.5 | y | 0 | 269 | 346 |
| IIEES SC | GRMI | Z | EPn | E | 2023-02-09 18:18:56 | 0 | y | 0 | 307 | 92 |
| IIEES SC | SRSL | Z | EPn | E | 2023-02-09 18:18:57 | -0.2 | y | 0 | 315 | 162 |
| IIEES SC | ZNJK | Z | EPn | E | 2023-02-09 18:19:11 | -2.9 | n | 4 | 455 | 123 |
| IIEES SC | SNGE | Z | EPn | E | 2023-02-09 18:19:21 | 1 | y | 0 | 501 | 148 |
| IIEES SC | DHR | Z | EPn | E | 2023-02-09 18:19:21 | 0.8 | y | 0 | 502 | 159 |
