Magnitude |
3 |
| Date & Time (UTC) | 2023-03-18 20:54:00.1 |
| Date & Time (Local) | 1401/12/28 00:24:00.1 |

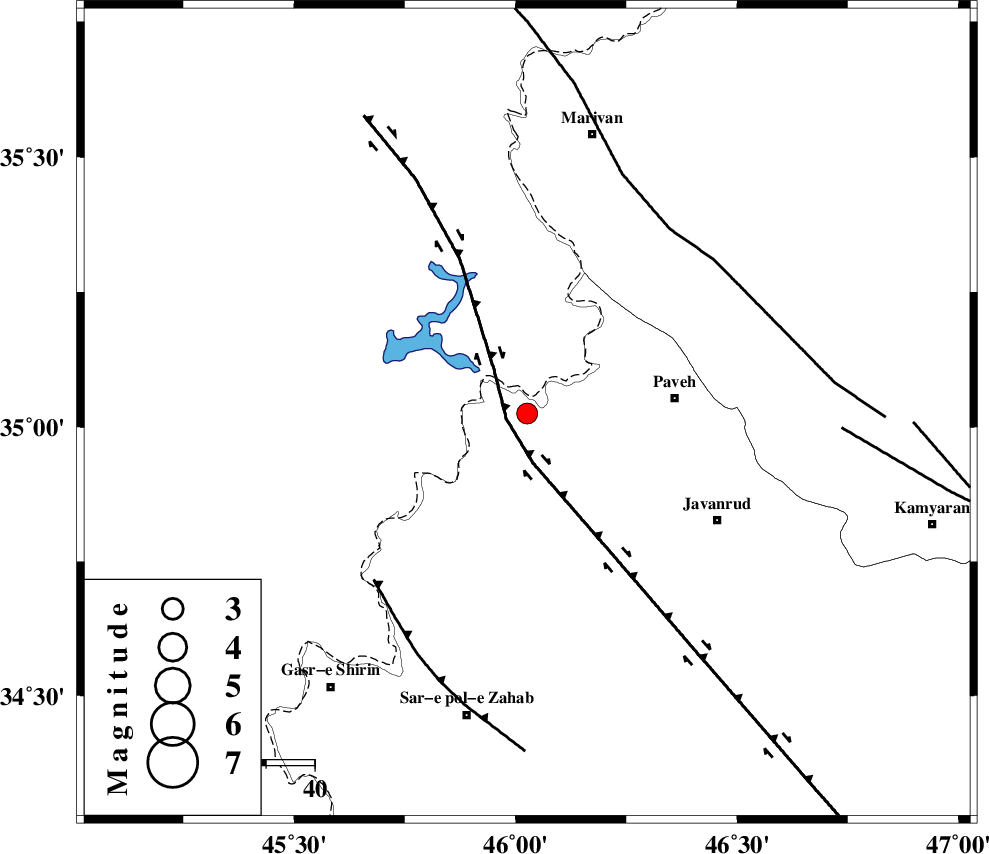

| Location | Lat:35.025 Lon: 46.026 |
| Region | Kermanshah Province, 30 km -West of Paveh |
Nearest Cities |
|
| 8 km of Markhil, Kermanshah Province | |
| 11 km North of Bayangan, Kermanshah Province | |
| 14 km North West of Mazran, Kermanshah Province | |
| 15 km West of Dudan, Kermanshah Province | |
| 15 km West of Dudan, Kermanshah Province | |
| Depth | 7 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 4 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 47 km | |
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 48 km | |
| Number of Phases | 12 |
| RMS | 0.4 |
| Number of Stations | 12 |
| Error in Latitude | 2.3 km |
| Error in Longitude | 2.3 km |
| Error in Depth | 6.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 180145 | IIEES SC | DHR | Z | 3 | 1 | 2023-03-18 20:54:08 | 2023-03-23 08:27:00 | n |
| 180146 | IIEES SC | KCHF | Z | 1 | 1 | 2023-03-18 20:54:21 | 2023-03-23 08:27:00 | n |
| 180147 | IIEES SC | SRSL | Z | 0.5 | 1 | 2023-03-18 20:54:23 | 2023-03-23 08:27:00 | n |
| 180148 | IIEES SC | ILBA | Z | 0.3 | 1 | 2023-03-18 20:54:26 | 2023-03-23 08:27:00 | n |
| 180149 | IIEES SC | MAHB | Z | 0.8 | 1 | 2023-03-18 20:54:33 | 2023-03-23 08:27:00 | n |
| 180150 | IIEES SC | ZNJK | Z | 0.05 | 1 | 2023-03-18 20:54:46 | 2023-03-23 08:27:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | DHR | Z | EPg | E | 2023-03-18 20:54:08 | -0.5 | y | 0 | 49 | 138 |
| IIEES SC | SNGE | Z | EPg | E | 2023-03-18 20:54:21 | 0.1 | y | 0 | 121 | 86 |
| IIEES SC | KCHF | Z | EPg | E | 2023-03-18 20:54:21 | -0.1 | y | 0 | 125 | 132 |
| IIEES SC | SRSL | Z | EPg | E | 2023-03-18 20:54:23 | -0.2 | y | 0 | 142 | 338 |
| IIEES SC | ILBA | Z | EPg | E | 2023-03-18 20:54:26 | 0.2 | y | 0 | 156 | 174 |
| IIEES SC | MAHB | Z | EPg | E | 2023-03-18 20:54:33 | 1 | y | 0 | 195 | 351 |
| IIEES SC | HGHA | Z | EPn | E | 2023-03-18 20:54:43 | 1.7 | n | 4 | 263 | 79 |
| IIEES SC | ZNJK | Z | EPn | E | 2023-03-18 20:54:46 | 0 | y | 0 | 302 | 53 |
| IIEES SC | ASAO | Z | EPn | E | 2023-03-18 20:54:56 | 2.1 | n | 4 | 370 | 98 |
| IIEES SC | GTMR | Z | EPn | E | 2023-03-18 20:54:59 | 0.6 | y | 0 | 402 | 135 |
| IIEES SC | MRD | Z | EPn | E | 2023-03-18 20:54:59 | -0.8 | y | 0 | 410 | 356 |
| IIEES SC | GRMI | Z | EPn | E | 2023-03-18 20:55:06 | 1.6 | n | 4 | 452 | 22 |
