Magnitude |
3.5 |
| Date & Time (UTC) | 2020-09-01 15:11:42.0 |
| Date & Time (Local) | 1399/6/11 19:41:42.0 |

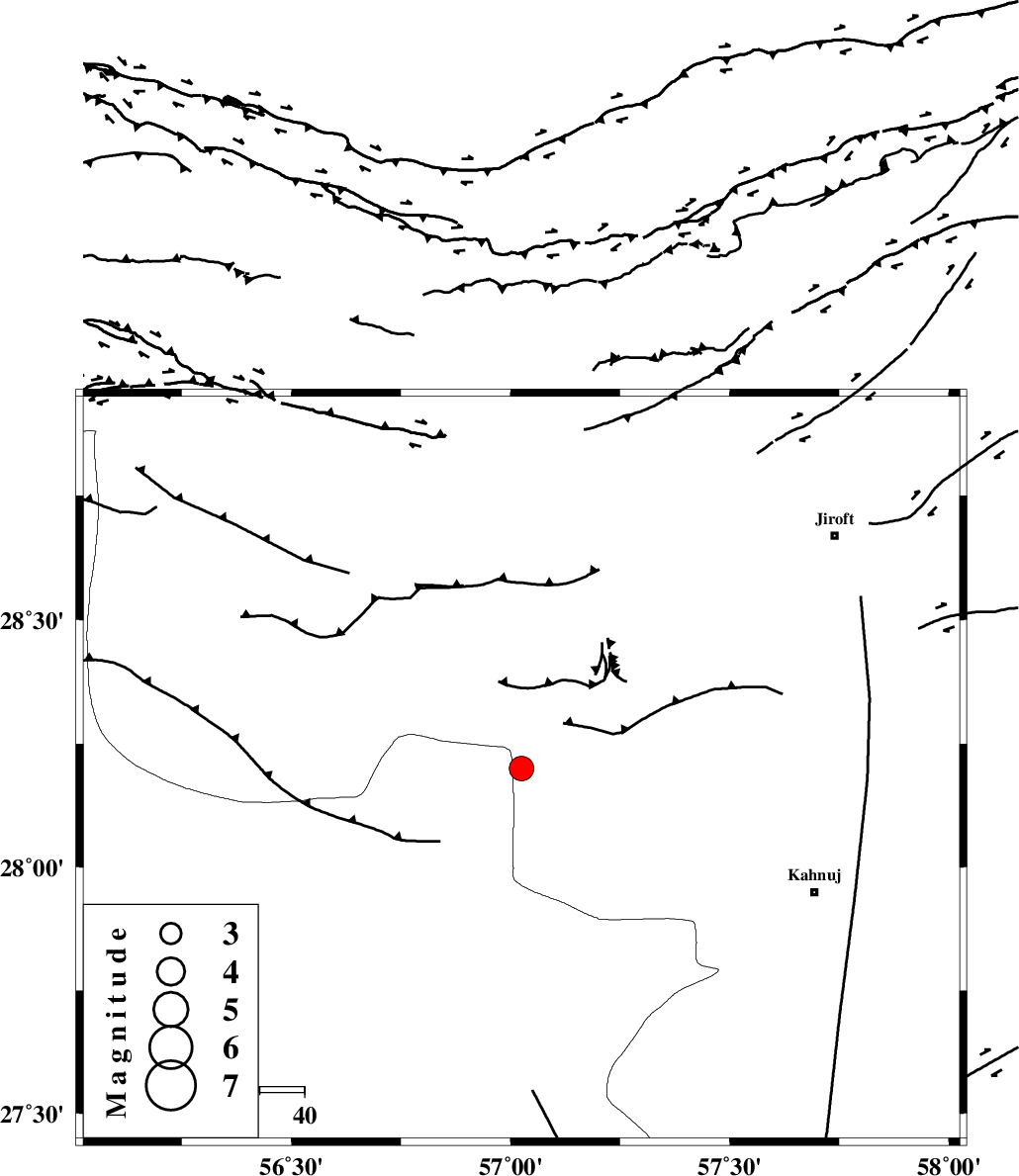

| Location | Lat:28.2 Lon: 57.025 |
| Region | Kerman Province, 71 km North-West of Kahnuj |
Nearest Cities |
|
| 21 km South East of Sarkhan, Kerman Province | |
| 28 km North West of Faryab, Kerman Province | |
| 28 km North West of Hurpasefid, Kerman Province | |
| 39 km North West of Mehrueye-e paeen, Kerman Province | |
| 49 km North West of Fariab, Hormozgan Province | |
| Depth | 30 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 27 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 61 km | |
| SABZEVARAN_F (Length: 190 km) , Distance to epicenter: 68 km | |
| Number of Phases | 10 |
| RMS | 0.4 |
| Number of Stations | 10 |
| Error in Latitude | 2.8 km |
| Error in Longitude | 2.8 km |
| Error in Depth | 6.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 193856 | IIEES SC | BNDS | Z | 2 | 1 | 2020-09-01 15:12:02 | 2024-06-30 05:40:00 | n |
| 193857 | IIEES SC | KRBR | Z | 1 | 1 | 2020-09-01 15:12:13 | 2024-06-30 05:40:00 | n |
| 193858 | IIEES SC | CHBR | Z | 0.1 | 1 | 2020-09-01 15:12:43 | 2024-06-30 05:40:00 | n |
| 193859 | IIEES SC | BSRN | Z | 0.1 | 1 | 2020-09-01 15:12:46 | 2024-06-30 05:40:00 | n |
| 193860 | IIEES SC | YZKH | Z | 0.04 | 1 | 2020-09-01 15:12:52 | 2024-06-30 05:40:00 | n |
| 193861 | IIEES SC | TABS | Z | 0.03 | 1 | 2020-09-01 15:13:03 | 2024-06-30 05:40:00 | n |
| 193862 | IIEES SC | SHRT | Z | 0.02 | 1 | 2020-09-01 15:13:12 | 2024-06-30 05:40:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | BNDS | Z | EPg | E | 2020-09-01 15:12:02 | 0 | y | 0 | 122 | 223 |
| IIEES SC | KRBR | Z | EPg | E | 2020-09-01 15:12:13 | 0.1 | y | 0 | 199 | 353 |
| IIEES SC | GHIR | Z | EPn | E | 2020-09-01 15:12:37 | -0.5 | y | 0 | 396 | 271 |
| IIEES SC | ZHSF | Z | EPn | E | 2020-09-01 15:12:37 | -0.4 | y | 0 | 397 | 67 |
| IIEES SC | CHBR | Z | EPn | E | 2020-09-01 15:12:43 | 0.1 | y | 0 | 449 | 130 |
| IIEES SC | BSRN | Z | EPn | E | 2020-09-01 15:12:46 | 1 | y | 0 | 464 | 26 |
| IIEES SC | YZKH | Z | EPn | E | 2020-09-01 15:12:52 | -0.9 | y | 0 | 520 | 333 |
| IIEES SC | TABS | Z | EPn | E | 2020-09-01 15:13:03 | 0.6 | y | 0 | 604 | 1 |
| IIEES SC | SHRT | Z | EPn | E | 2020-09-01 15:13:12 | -0.6 | y | 0 | 680 | 27 |
| IIEES SC | GTMR | Z | EPn | E | 2020-09-01 15:13:40 | 1.1 | y | 0 | 896 | 302 |
