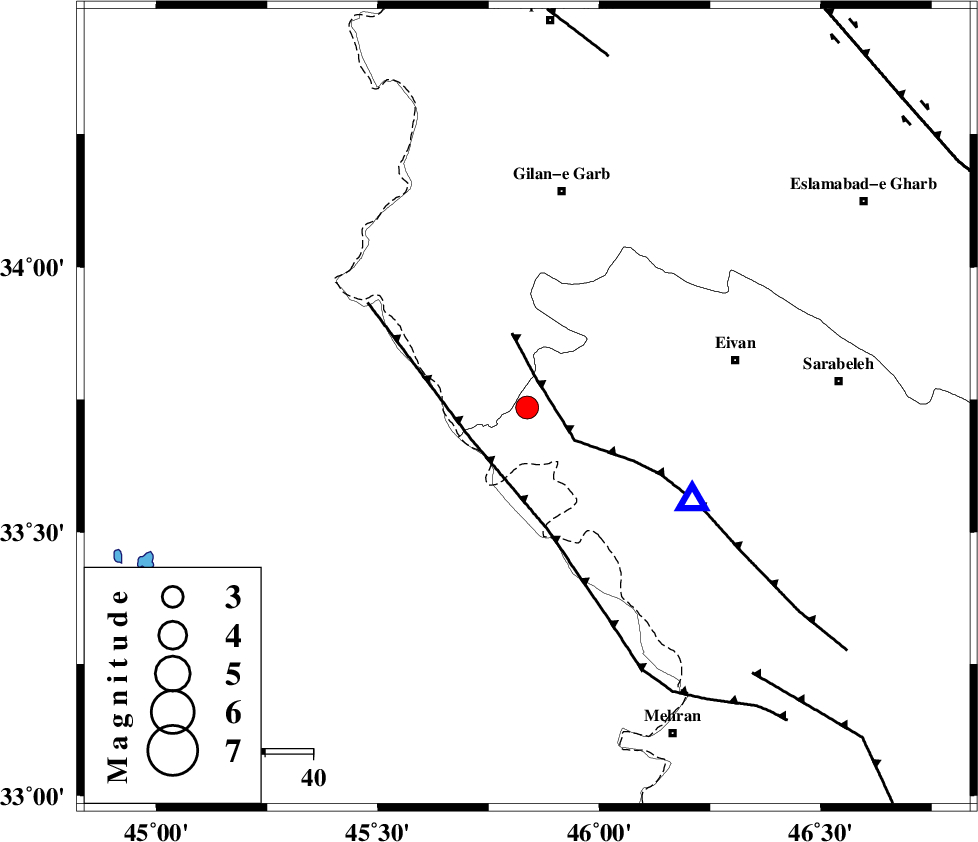

 Map Region : lat:-  lon:-

  North
West   East
  South
Show Cities
Show Foreign Cities
Show Fault Mechanism
Show Province Boundaries
Show Stations
Map Title

Magnitude
 3.2
Date & Time (UTC) 2019-04-01 10:59:05.5
Date & Time (Local) 1398/1/12  15:29:05.5
Location Lat:33.735 Lon: 45.837
Region Ilam Province, 46 km South of Gilan-E-Gharb
Nearest Cities
24 km South East of Sumar, Kermanshah Province
35 km South West of Nian, Kermanshah Province
36 km South West of Teran, Ilam Province
38 km South West of Zarneh, Ilam Province
40 km North West of Chavar, Ilam Province
Depth 12 km
Agency
Faults within 150 km:
MFF7 (Length: 99 km) , Distance to epicenter: 7 km
ZFF4 (Length: 128 km) , Distance to epicenter: 14 km
MFF6 (Length: 144 km) , Distance to epicenter: 73 km
Number of Phases 6
RMS 0.7
Number of Stations 6
Error in Latitude 8.8 km
Error in Longitude 8.8 km
Error in Depth 11.2 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
194162IIEES SCSRSLZ 0.212019-04-01 10:59:472024-07-21 06:58:00n
194163IIEES SCSRSLZ 0.212019-04-01 11:00:192024-07-21 06:58:00n
194164IIEES SCGTMRZ 0.212019-04-01 10:59:562024-07-21 06:58:00n
194165IIEES SCASAOZ 0.0412019-04-01 11:00:022024-07-21 06:58:00n

Phase

AgencyStationComponentPhase TypePhase QualityArrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCSRSLZ EPn E2019-04-01 10:59:47-0.7y0277352
IIEES SCSRSLZ ES E2019-04-01 11:00:190.7y0277352
IIEES SCGTMRZ EPn E2019-04-01 10:59:561.2y0336115
IIEES SCKHMZZ EPn E2019-04-01 11:00:00-0.7y038290
IIEES SCASAOZ EPn E2019-04-01 11:00:020y039777
IIEES SCGHVRZ EPn E2019-04-01 11:00:15-0.5y050681
