Magnitude |
4.1 |
| Date & Time (UTC) | 2020-08-05 18:55:03.8 |
| Date & Time (Local) | 1399/5/15 23:25:03.8 |

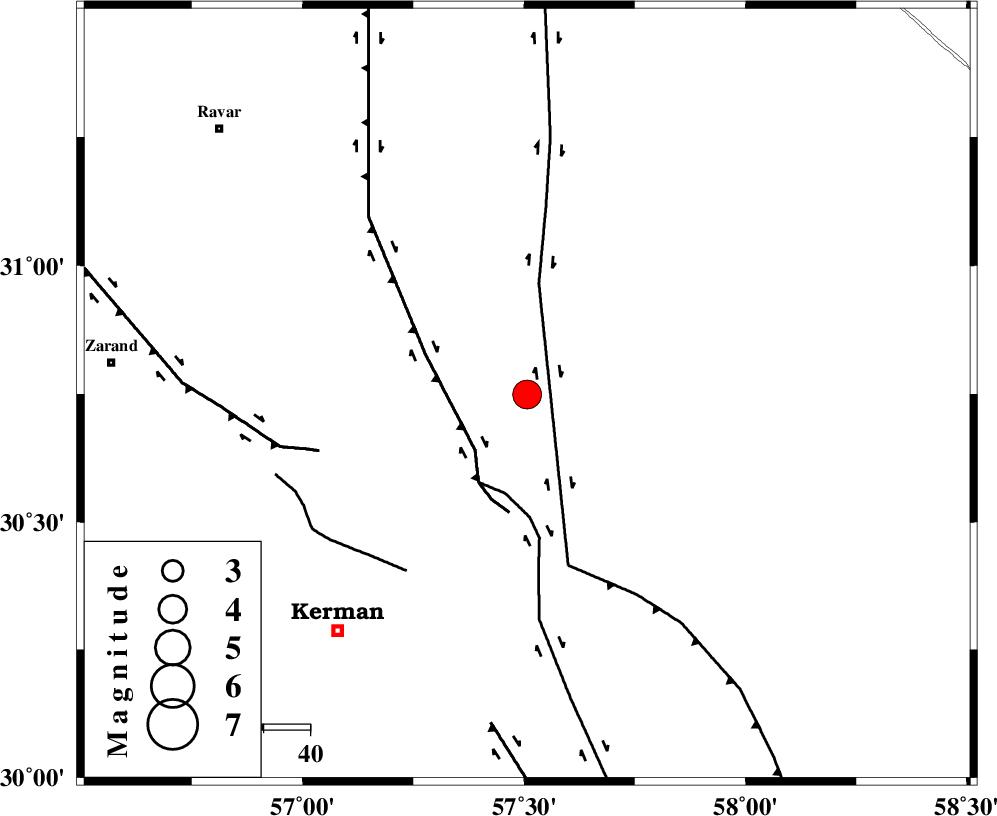

| Location | Lat:30.749 Lon: 57.507 |
| Region | Kerman Province, 66 km North-East of Kerman |
Nearest Cities |
|
| 35 km North East of Dehlulu, Kerman Province | |
| 37 km North East of Harjand, Kerman Province | |
| 42 km North West of Shahdad, Kerman Province | |
| 48 km North West of Estehkam, Kerman Province | |
| 51 km East of Hejdak, Kerman Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 16 km | |
| GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 22 km | |
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 24 km | |
| Number of Phases | 21 |
| RMS | 0.3 |
| Number of Stations | 21 |
| Error in Latitude | 0.8 km |
| Error in Longitude | 0.8 km |
| Error in Depth | 5.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 194806 | IIEES SC | KRBR | Z | 7 | 1 | 2020-08-05 18:55:23 | 2024-09-08 10:58:00 | n |
| 194807 | IIEES SC | KRBR | Z | 7 | 1 | 2020-08-05 18:55:36 | 2024-09-08 10:58:00 | n |
| 194808 | IIEES SC | BSRN | Z | 4 | 1 | 2020-08-05 18:55:36 | 2024-09-08 10:58:00 | n |
| 194809 | IIEES SC | TABS | Z | 2 | 1 | 2020-08-05 18:55:52 | 2024-09-08 10:58:00 | n |
| 194810 | IIEES SC | YZKH | Z | 1 | 1 | 2020-08-05 18:55:52 | 2024-09-08 10:58:00 | n |
| 194811 | IIEES SC | BNDS | Z | 0.2 | 1 | 2020-08-05 18:56:00 | 2024-09-08 10:58:00 | n |
| 194812 | IIEES SC | SHRT | Z | 0.4 | 1 | 2020-08-05 18:56:03 | 2024-09-08 10:58:00 | n |
| 194813 | IIEES SC | NASN | Z | 0.3 | 1 | 2020-08-05 18:56:14 | 2024-09-08 10:58:00 | n |
| 194814 | IIEES SC | DAMV | Z | 0.1 | 1 | 2020-08-05 18:56:44 | 2024-09-08 10:58:00 | n |
| 194815 | IIEES SC | BJRD | Z | 0.03 | 1 | 2020-08-05 18:56:47 | 2024-09-08 10:58:00 | n |
| 194816 | IIEES SC | MRVT | Z | 0.05 | 1 | 2020-08-05 18:56:47 | 2024-09-08 10:58:00 | n |
| 194817 | IIEES SC | KHMZ | Z | 0.06 | 1 | 2020-08-05 18:56:49 | 2024-09-08 10:58:00 | n |
| 194818 | IIEES SC | ASAO | Z | 0.03 | 1 | 2020-08-05 18:56:53 | 2024-09-08 10:58:00 | n |
| 194819 | IIEES SC | GTMR | Z | 0.05 | 1 | 2020-08-05 18:56:53 | 2024-09-08 10:58:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | KRBR | Z | EPg | E | 2020-08-05 18:55:23 | 0.3 | y | 0 | 111 | 220 |
| IIEES SC | KRBR | Z | ESg | E | 2020-08-05 18:55:36 | 0 | y | 0 | 111 | 220 |
| IIEES SC | BSRN | Z | EPn | E | 2020-08-05 18:55:36 | -1.1 | y | 0 | 205 | 49 |
| IIEES SC | TABS | Z | EPn | E | 2020-08-05 18:55:52 | 0.6 | y | 0 | 324 | 354 |
| IIEES SC | YZKH | Z | EPn | E | 2020-08-05 18:55:52 | -0.3 | y | 0 | 331 | 303 |
| IIEES SC | ZHSF | Z | EPn | E | 2020-08-05 18:55:54 | 0.1 | y | 0 | 338 | 112 |
| IIEES SC | BNDS | Z | EPn | E | 2020-08-05 18:56:00 | -0.4 | y | 0 | 393 | 199 |
| IIEES SC | SHRT | Z | EPn | E | 2020-08-05 18:56:03 | -0.2 | y | 0 | 415 | 39 |
| IIEES SC | NASN | Z | EPn | E | 2020-08-05 18:56:14 | -0.1 | y | 0 | 500 | 297 |
| IIEES SC | GHIR | Z | EPn | E | 2020-08-05 18:56:16 | 0.1 | y | 0 | 516 | 238 |
| IIEES SC | SHRO | Z | EPn | E | 2020-08-05 18:56:26 | 0 | y | 0 | 600 | 347 |
| IIEES SC | GHVR | Z | EPn | E | 2020-08-05 18:56:41 | 0.6 | y | 0 | 719 | 305 |
| IIEES SC | KAGH | Z | EPn | E | 2020-08-05 18:56:42 | 0.5 | y | 0 | 723 | 18 |
| IIEES SC | DAMV | Z | EPn | E | 2020-08-05 18:56:44 | -0.2 | y | 0 | 748 | 316 |
| IIEES SC | BJRD | Z | EPn | E | 2020-08-05 18:56:47 | 0.1 | y | 0 | 771 | 359 |
| IIEES SC | MRVT | Z | EPn | E | 2020-08-05 18:56:47 | -0.6 | y | 0 | 778 | 350 |
| IIEES SC | KHMZ | Z | EPn | E | 2020-08-05 18:56:49 | 0.1 | y | 0 | 784 | 295 |
| IIEES SC | ASAO | Z | EPn | E | 2020-08-05 18:56:53 | -0.5 | y | 0 | 819 | 301 |
| IIEES SC | GTMR | Z | EPn | E | 2020-08-05 18:56:53 | -0.5 | y | 0 | 819 | 283 |
| IIEES SC | CHTH | Z | EPn | E | 2020-08-05 18:56:54 | 0.2 | y | 0 | 825 | 314 |
| IIEES SC | ILBA | Z | EPn | E | 2020-08-05 18:57:26 | -3.4 | n | 4 | 1112 | 287 |
