Magnitude |
3.1 |
| Date & Time (UTC) | 2020-08-09 19:58:00.3 |
| Date & Time (Local) | 1399/5/20 00:28:00.3 |
| Location | Lat:30.816 Lon: 56.646 |
| Region | Kerman Province, 7 km of Zarand |
Nearest Cities |
|
| 7 km North of Zarand, Kerman Province | |
| 9 km North of Bahaabad, Kerman Province | |
| 10 km North East of Mohammadabad, Kerman Province | |
| 14 km West of Hatkan, Kerman Province | |
| 17 km North West of Khankuk, Kerman Province | |
| Depth | 12 km |
| Agency | |

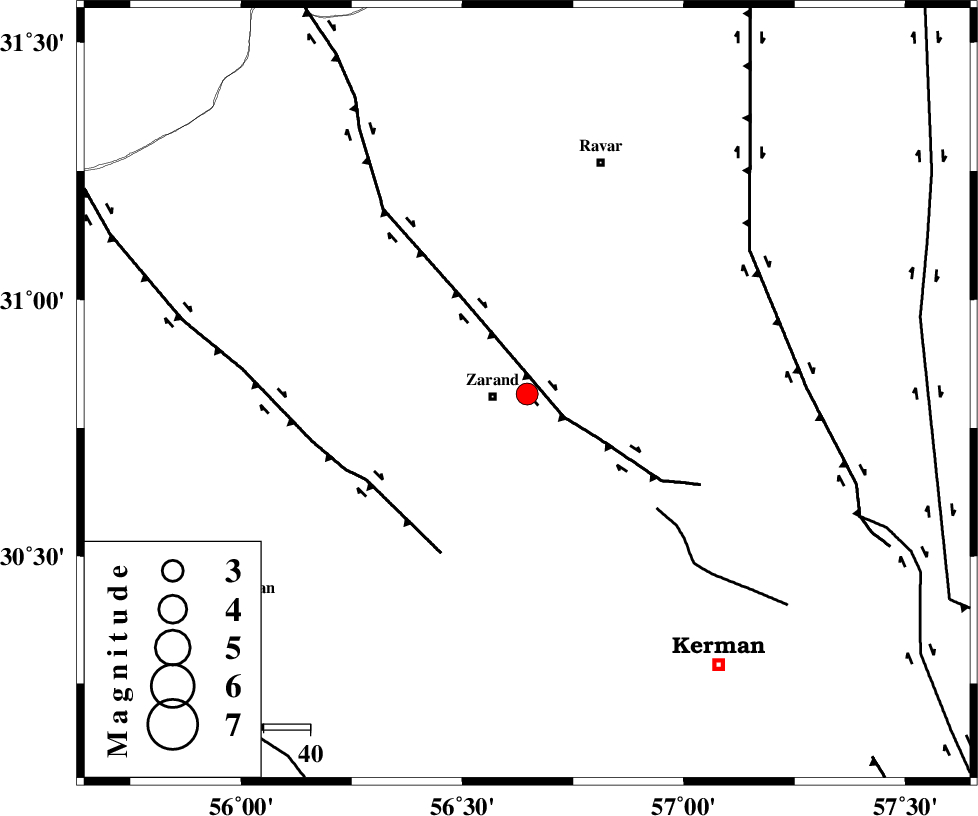

Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 9 km | |
| CHATRUD_F (Length: 37 km) , Distance to epicenter: 37 km | |
| DARIVAN_F (Length: 131 km) , Distance to epicenter: 39 km | |
| Number of Phases | 15 |
| RMS | 0.4 |
| Number of Stations | 15 |
| Error in Latitude | 1.1 km |
| Error in Longitude | 1.1 km |
| Error in Depth | 5.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 194956 | IIEES SC | KRBR | Z | 0.7 | 1 | 2020-08-09 19:58:17 | 2024-09-15 11:34:00 | n |
| 194957 | IIEES SC | KRBR | Z | 0.7 | 1 | 2020-08-09 19:58:28 | 2024-09-15 11:34:00 | n |
| 194958 | IIEES SC | YZKH | Z | 0.2 | 1 | 2020-08-09 19:58:41 | 2024-09-15 11:34:00 | n |
| 194959 | IIEES SC | YZKH | Z | 0.2 | 1 | 2020-08-09 19:59:10 | 2024-09-15 11:34:00 | n |
| 194960 | IIEES SC | BSRN | Z | 0.1 | 1 | 2020-08-09 19:58:41 | 2024-09-15 11:34:00 | n |
| 194961 | IIEES SC | TABS | Z | 0.08 | 1 | 2020-08-09 19:58:48 | 2024-09-15 11:34:00 | n |
| 194962 | IIEES SC | BNDS | Z | 0.03 | 1 | 2020-08-09 19:58:54 | 2024-09-15 11:34:00 | n |
| 194963 | IIEES SC | NASN | Z | 0.03 | 1 | 2020-08-09 19:59:01 | 2024-09-15 11:34:00 | n |
| 194964 | IIEES SC | SHRT | Z | 0.03 | 1 | 2020-08-09 19:59:06 | 2024-09-15 11:34:00 | n |
| 194965 | IIEES SC | ASAO | Z | 0.01 | 1 | 2020-08-09 19:59:41 | 2024-09-15 11:34:00 | n |
| 194966 | IIEES SC | MRVT | Z | 0.008 | 1 | 2020-08-09 19:59:42 | 2024-09-15 11:34:00 | n |
| 194967 | IIEES SC | CHTH | Z | 0.02 | 1 | 2020-08-09 19:59:43 | 2024-09-15 11:34:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | KRBR | Z | EPg | E | 2020-08-09 19:58:17 | 0.7 | y | 0 | 93 | 173 |
| IIEES SC | KRBR | Z | ESg | E | 2020-08-09 19:58:28 | 0 | y | 0 | 93 | 173 |
| IIEES SC | YZKH | Z | EPn | E | 2020-08-09 19:58:41 | 0.4 | y | 0 | 262 | 312 |
| IIEES SC | YZKH | Z | ES | E | 2020-08-09 19:59:10 | 0 | y | 0 | 262 | 312 |
| IIEES SC | BSRN | Z | EPn | E | 2020-08-09 19:58:41 | -0.3 | y | 0 | 268 | 62 |
| IIEES SC | TABS | Z | EPn | E | 2020-08-09 19:58:48 | 0.9 | y | 0 | 317 | 8 |
| IIEES SC | BNDS | Z | EPn | E | 2020-08-09 19:58:54 | -0.8 | y | 0 | 381 | 187 |
| IIEES SC | ZHSF | Z | EPn | E | 2020-08-09 19:58:57 | -2.9 | n | 4 | 419 | 109 |
| IIEES SC | NASN | Z | EPn | E | 2020-08-09 19:59:01 | 0 | y | 0 | 425 | 301 |
| IIEES SC | SHRT | Z | EPn | E | 2020-08-09 19:59:06 | 0 | y | 0 | 465 | 48 |
| IIEES SC | SHRO | Z | EPn | E | 2020-08-09 19:59:19 | -0.9 | y | 0 | 579 | 354 |
| IIEES SC | GTMR | Z | EPn | E | 2020-08-09 19:59:40 | 0.1 | y | 0 | 738 | 284 |
| IIEES SC | ASAO | Z | EPn | E | 2020-08-09 19:59:41 | 0.2 | y | 0 | 746 | 304 |
| IIEES SC | MRVT | Z | EPn | E | 2020-08-09 19:59:42 | 0.1 | y | 0 | 761 | 356 |
| IIEES SC | CHTH | Z | EPn | E | 2020-08-09 19:59:43 | -0.1 | y | 0 | 764 | 318 |
