Map Title

Magnitude
 3
Date & Time (UTC) 2020-06-16 08:04:26.6
Date & Time (Local) 1399/3/27  12:34:26.6

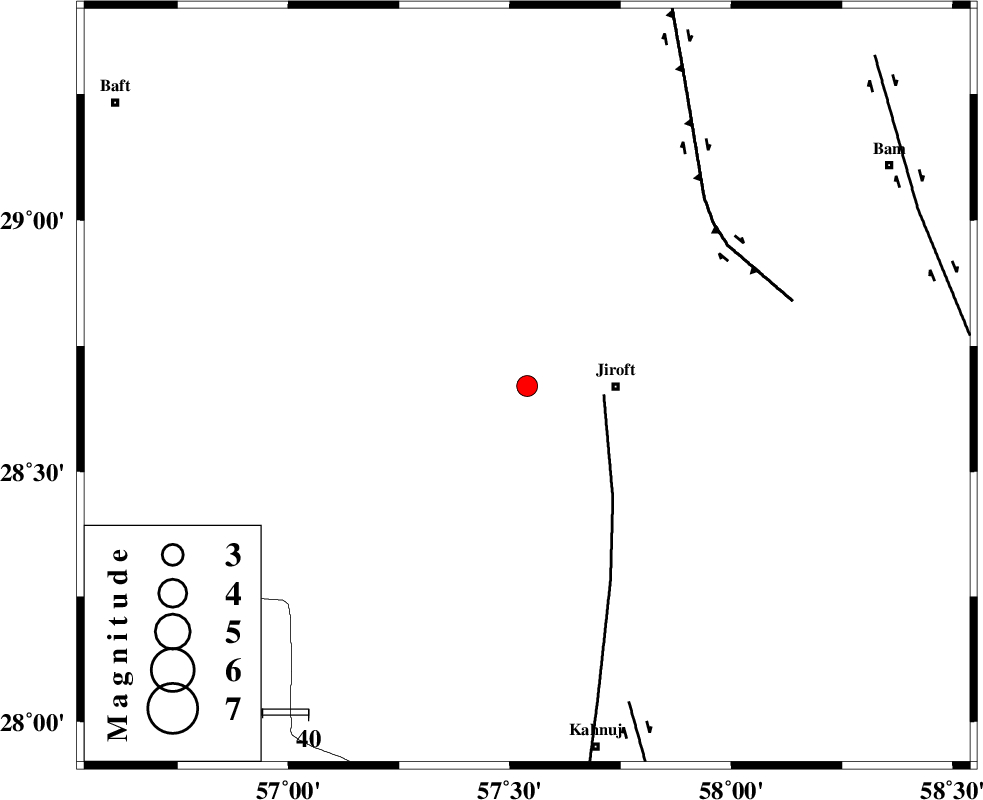

Location Lat:28.67 Lon: 57.539
Region Kerman Province, 20 km -West of Jiroft
Nearest Cities
19 km North West of Khatunabad-e zangian, Kerman Province
20 km North West of Jiroft, Kerman Province
28 km North West of Dolatabad, Kerman Province
35 km North West of Khesrabad, Kerman Province
37 km South of Delfard, Kerman Province
Depth 12 km
Agency
Faults within 150 km:
SABZEVARAN_F (Length: 190 km) , Distance to epicenter: 17 km
GOWK_F (Length: 152 km) , Distance to epicenter: 54 km
JIROFT_F (Length: 144 km) , Distance to epicenter: 73 km
Number of Phases 7
RMS 0.3
Number of Stations 7
Error in Latitude 0.4 km
Error in Longitude 0.4 km
Error in Depth 1.7 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
194997IIEES SCKRBRZ 0.512020-06-16 08:04:522024-09-16 05:40:00n
194998IIEES SCTABSZ 0.0112020-06-16 08:05:432024-09-16 05:40:00n
194999IIEES SCSHRTZ 0.00712020-06-16 08:05:502024-09-16 05:40:00n

Phase

AgencyStationComponentPhase TypePhase QualityArrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCKRBRZ EPg E2020-06-16 08:04:52-0.8y0164333
IIEES SCBNDSZ EPg E2020-06-16 08:04:58-0.3y0195224
IIEES SCZHSFZ EPn E2020-06-16 08:05:150.1y033172
IIEES SCGHIRZ EPn E2020-06-16 08:05:300.3y0448265
IIEES SCYZKHZ EPn E2020-06-16 08:05:24-12n4500326
IIEES SCTABSZ EPn E2020-06-16 08:05:430.2y0554356
IIEES SCSHRTZ EPn E2020-06-16 08:05:500.1y061125
