Magnitude
 3.5
Date & Time (UTC) 2025-10-13 21:30:08.1
Date & Time (Local) 1404/7/22  01:00:08.1

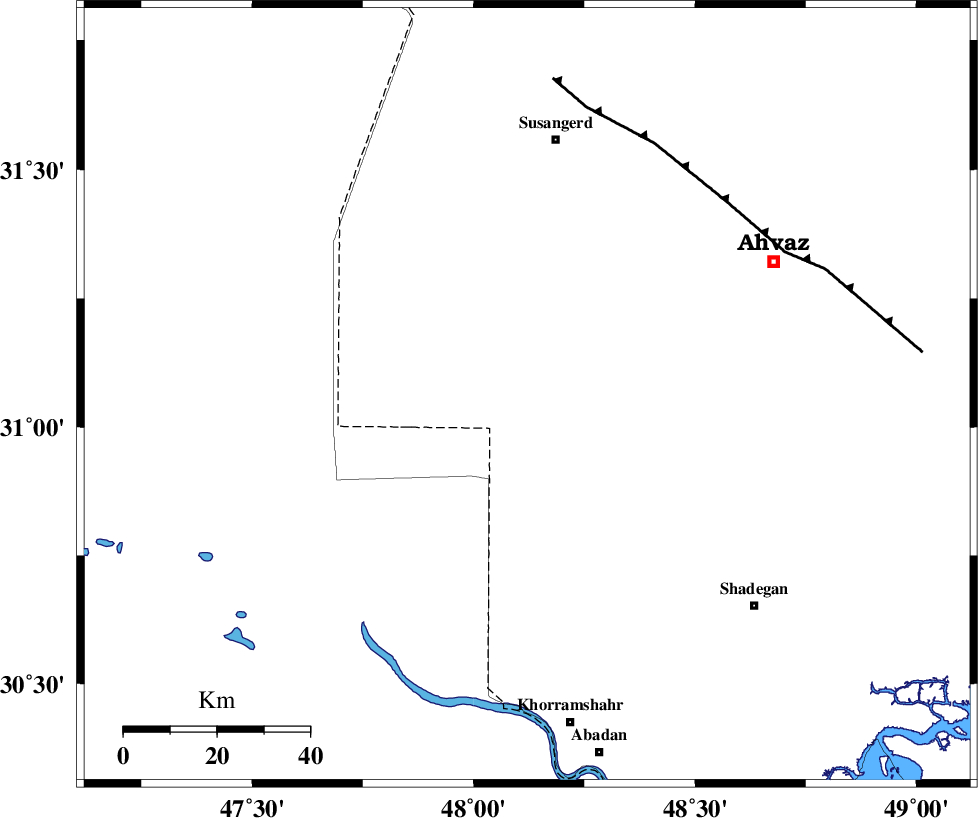

Location Lat:31.062 Lon: 48.121
Region Khoozestan Province, 55 km South of Susangerd
Nearest Cities
43 km South West of Bahr, Khoozestan Province
45 km South of Hoveizeh, Khoozestan Province
46 km North West of Darkhovin, Khoozestan Province
47 km West of Abunangeh, Khoozestan Province
54 km South West of Jalaliyeh, Khoozestan Province
Depth 16 km
Agency
Faults within 150 km:
AHVAZ_F (Length: 99 km) , Distance to epicenter: 60 km
AGHAJARI_F (Length: 88 km) , Distance to epicenter: 107 km
DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 143 km
Number of Phases 8
RMS 0.1
Number of Stations 8
Error in Latitude 0.6 km
Error in Longitude 0.6 km
Error in Depth 3.1 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
199620IIEES SCBSR2Z 212025-10-13 21:30:242025-10-14 06:19:00n
199621IIEES SCNASNZ 0.0712025-10-13 21:31:152025-10-14 06:19:00n
199622IIEES SCCHTHZ 0.0312025-10-13 21:31:312025-10-14 06:19:00n
199623IIEES SCSRSLZ 0.0412025-10-13 21:31:332025-10-14 06:19:00n

Phase

AgencyStationComponentPhase TypePhase QualityArrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCBSR2Z EPg E2025-10-13 21:30:240y098209
IIEES SCASAOZ EPn E2025-10-13 21:31:080.1y042625
IIEES SCNASNZ EPn E2025-10-13 21:31:150.1y048367
IIEES SCGHIRZ EPn E2025-10-13 21:31:250y0563123
IIEES SCCHTHZ EPn E2025-10-13 21:31:310.1y060627
IIEES SCMEHZ EPn E2025-10-13 21:31:32-0.1y062087
IIEES SCDAMVZ EPn E2025-10-13 21:31:29-3.7n462135
IIEES SCSRSLZ EPn E2025-10-13 21:31:33-0.1y0623336
