Magnitude
 5
Date & Time (UTC) 2025-10-21 08:02:36.2
Date & Time (Local) 1404/7/29  11:32:36.2
Location Lat:30.163 Lon: 51.996
Region Fars Province, 11 km of Ardakan
Nearest Cities
7 km of Bahrghan, Fars Province
11 km of Ardakan, Fars Province
33 km South East of Kamhar, Fars Province
41 km North West of Banesh, Fars Province
42 km West of Dorudzan, Fars Province
Depth 12 km
Agency

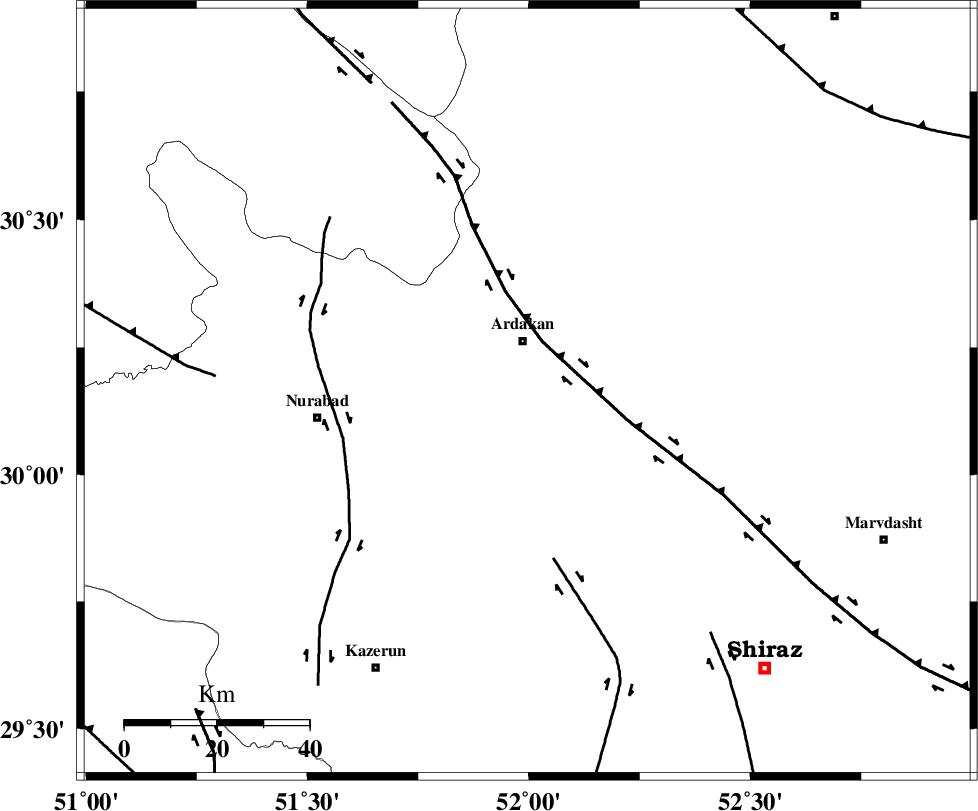

Faults within 150 km:
HZF3 (Length: 197 km) , Distance to epicenter: 11 km
KAREBASS_F (Length: 98 km) , Distance to epicenter: 37 km
KAZERUN_F (Length: 96 km) , Distance to epicenter: 41 km
Number of Phases 28
RMS 0.4
Number of Stations 28
Error in Latitude 1.2 km
Error in Longitude 1.2 km
Error in Depth 438.2 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
199798IIEES SCBSR2Z 512025-10-21 08:03:362025-10-21 10:31:00n
199799IIEES SCKRBRZ 512025-10-21 08:03:422025-10-21 10:31:00n
199800IIEES SCGHVRZ 312025-10-21 08:03:432025-10-21 10:31:00n
199801IIEES SCASAOZ 312025-10-21 08:03:482025-10-21 10:31:00n
199802IIEES SCTABSZ 0.612025-10-21 08:04:012025-10-21 10:31:00n
199803IIEES SCUOSSZ 0.812025-10-21 08:04:112025-10-21 10:31:00n
199804IIEES SCABGHZ 0.0512025-10-21 08:04:192025-10-21 10:31:00n
199805IIEES SCZHSFZ 0.312025-10-21 08:04:292025-10-21 10:31:00n
199806IIEES SCSHRTZ 0.412025-10-21 08:04:322025-10-21 10:31:00n

Phase

AgencyStationComponentPhase TypePhase QualityArrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCGHIRZ EPn E2025-10-21 08:03:130.3y0229155
IIEES SCMEHZ EPn E2025-10-21 08:03:200.4y028561
IIEES SCNASNZ EPn E2025-10-21 08:03:21-0.3y030215
IIEES SCYZKHZ EPn E2025-10-21 08:03:02-25.1n434945
IIEES SCBSR2Z EPn E2025-10-21 08:03:360.1y0422272
IIEES SCKRBRZ EPn E2025-10-21 08:03:420.8y046092
IIEES SCGHVRZ EPn E2025-10-21 08:03:43-0.5y0484352
IIEES SCASAOZ EPn E2025-10-21 08:03:48-1y0520339
IIEES SCDAMVZ EPn E2025-10-21 08:03:50-9.3n4606360
IIEES SCTABSZ EPn E2025-10-21 08:04:010.5y062051
IIEES SCCHTHZ EPn E2025-10-21 08:04:01-2.2n4642353
IIEES SCBSRNZ EPn E2025-10-21 08:04:142.5n470974
IIEES SCUOSSZ EPn E2025-10-21 08:04:11-0.7y0712144
IIEES SCGLOZ EPn E2025-10-21 08:04:140.2y072414
IIEES SCSHROZ EPn E2025-10-21 08:04:12-5n474930
IIEES SCABGHZ EPn E2025-10-21 08:04:19-0.5y077420
IIEES SCZHSFZ EPn E2025-10-21 08:04:29-0.2y084994
IIEES SCSHRTZ EPn E2025-10-21 08:04:32-0.1y087464
IIEES SCSRSLZ EPn E2025-10-21 08:04:34-2.9n4908318
IIEES SCMRVTZ EPn E2025-10-21 08:04:370.2y091424
IIEES SCIRSRZ EPn E2025-10-21 08:04:40-0.1y0937112
IIEES SCBJRDZ EPn E2025-10-21 08:04:450.1y097431
IIEES SCCHBRZ EPn E2025-10-21 08:04:43-1.7n4977121
IIEES SCKAGHZ EPn E2025-10-21 08:04:550y0105445
IIEES SCGNIZ EPn E2025-10-21 08:05:240.2y01290329
IIEES SCGUROZ EPn E2025-10-21 08:05:23-3.3n41306315
IIEES SCARPRZ EPn E2025-10-21 08:05:58-4.1n41597308
IIEES SCEILZ EPn E2025-10-21 08:06:04-3.9n41647268
