Magnitude
 3.4
Date & Time (UTC) 2026-01-15 22:51:56.6
Date & Time (Local) 1404/10/26  02:21:56.6

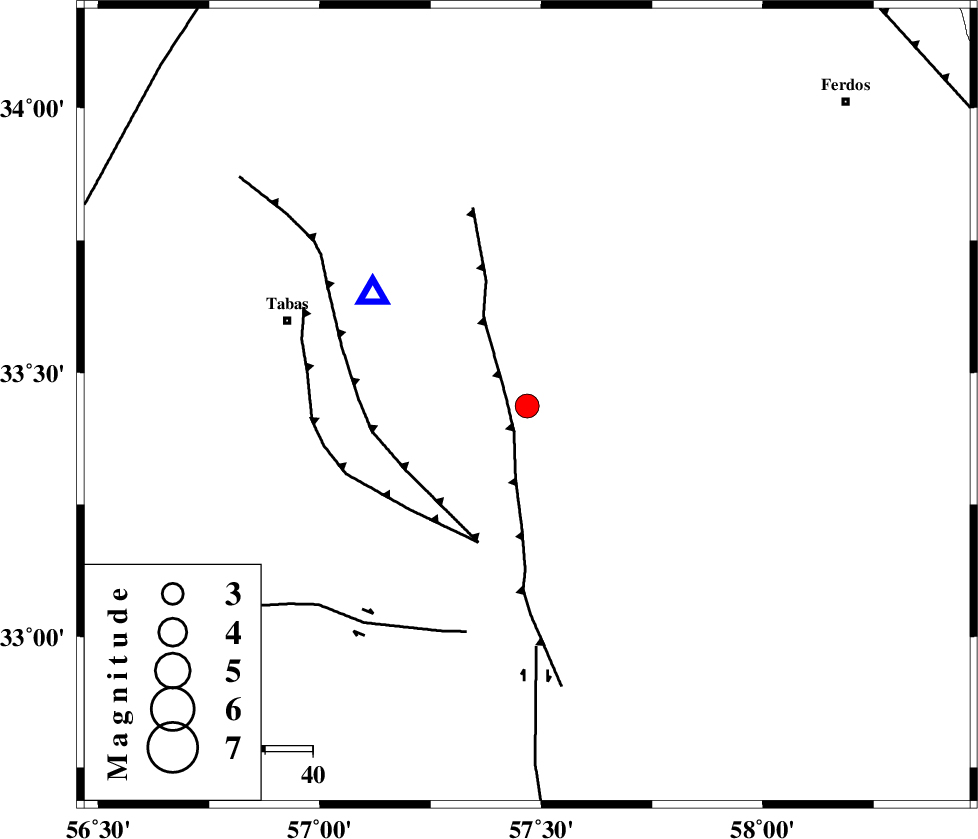

Location Lat:33.437 Lon: 57.468
Region Yazd Province, 53 km South-East of Tabas
Nearest Cities
16 km North of Dihuk, Yazd Province
30 km South of Arsak, Khorasan(center) Province
46 km North West of Arababad, Yazd Province
47 km South East of Reqqeh, Khorasan(center) Province
48 km South of Boshravieh, Khorasan(center) Province
Depth 12 km
Agency
Faults within 150 km:
ESFARDIAR_F (Length: 94 km) , Distance to epicenter: 5 km
TABAS_F1 (Length: 91 km) , Distance to epicenter: 29 km
TABAS_F2 (Length: 67 km) , Distance to epicenter: 30 km
Number of Phases 16
RMS 0.5
Number of Stations 16
Error in Latitude 1.6 km
Error in Longitude 1.6 km
Error in Depth 3.3 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
201099IIEES SCTABSZ 1012026-01-15 22:52:042026-01-18 05:48:00n
201100IIEES SCKRVRZ 0.912026-01-15 22:52:292026-01-18 05:48:00n
201101IIEES SCBSRNZ 0.612026-01-15 22:52:322026-01-18 05:48:00n
201102IIEES SCSHRTZ 0.212026-01-15 22:52:362026-01-18 05:48:00n
201103IIEES SCYZKHZ 0.212026-01-15 22:52:412026-01-18 05:48:00n
201104IIEES SCABGHZ 0.112026-01-15 22:52:582026-01-18 05:48:00n
201105IIEES SCNASNZ 0.0512026-01-15 22:52:582026-01-18 05:48:00n
201106IIEES SCBJRDZ 0.0112026-01-15 22:53:032026-01-18 05:48:00n
201107IIEES SCASAOZ 0.0212026-01-15 22:53:312026-01-18 05:48:00n
201108IIEES SCAMS1Z 0.0212026-01-15 22:53:412026-01-18 05:48:00n

Phase

AgencyStationComponentPhase TypePhase QualityArrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCTABSZ EPg E2026-01-15 22:52:040.2y040306
IIEES SCKOOZ EPg E2026-01-15 22:52:26-0.1y0182128
IIEES SCKRVRZ EPn E2026-01-15 22:52:29-0.7y0206196
IIEES SCBSRNZ EPn E2026-01-15 22:52:320.3y0225136
IIEES SCSHRTZ EPn E2026-01-15 22:52:36-0.5y026385
IIEES SCYZKHZ EPn E2026-01-15 22:52:410.1y0293247
IIEES SCSHROZ EPn E2026-01-15 22:52:430y0315335
IIEES SCKRBRZ EPn E2026-01-15 22:52:530.6y0389190
IIEES SCABGHZ EPn E2026-01-15 22:52:58-0.7y0439326
IIEES SCNASNZ EPn E2026-01-15 22:52:58-0.6y0441261
IIEES SCKAGHZ EPn E2026-01-15 22:53:010.8y045030
IIEES SCBJRDZ EPn E2026-01-15 22:53:03-0.1y0473359
IIEES SCSFBZ EPn E2026-01-15 22:53:05-0.2y0494282
IIEES SCGHVRZ EPn E2026-01-15 22:53:170.2y0587281
IIEES SCASAOZ EPn E2026-01-15 22:53:310.3y0699280
IIEES SCAMS1Z EPn E2026-01-15 22:53:411.1y0774259
