Magnitude |
2.9 |
| Date & Time (UTC) | 2011-05-22 23:20:37.4 |
| Date & Time (Local) | 1390/3/2 03:50:37.4 |

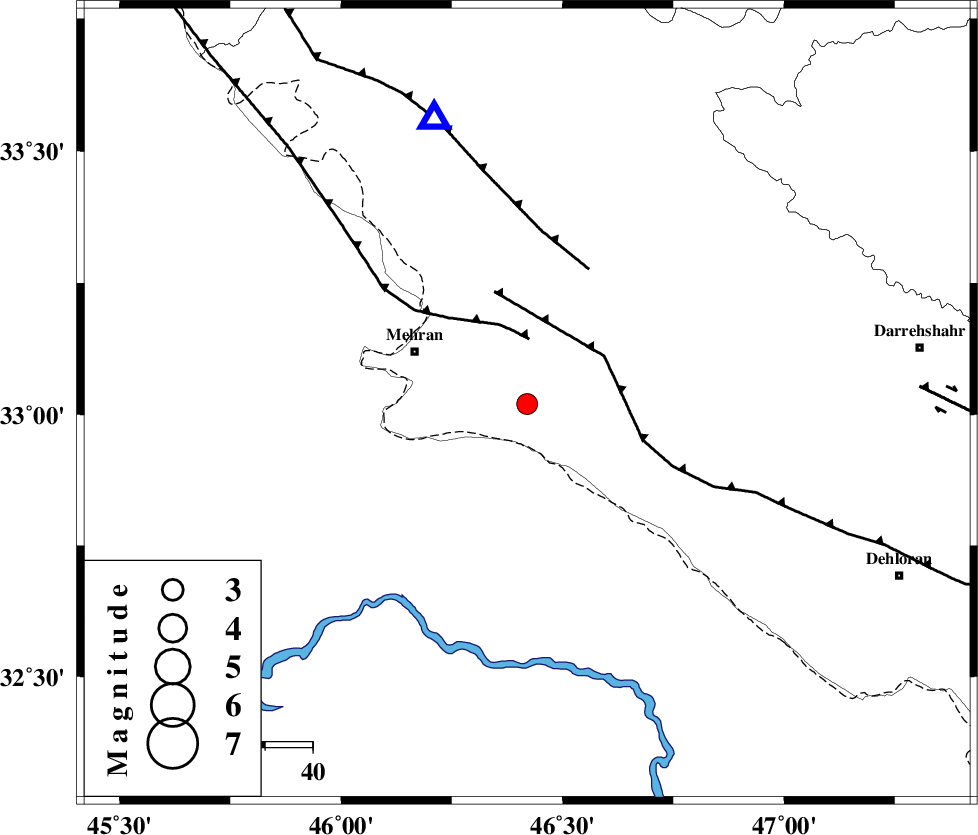

| Location | Lat:33.02 Lon: 46.42 |
| Region | Ilam Province, 26 km South-East of Mehran |
Nearest Cities |
|
| 26 km East of Mehran, Ilam Province | |
| 28 km South West of Gonbad-e pirmohammad, Ilam Province | |
| 35 km South of Galeh-yedarre-hemalakshahi, Ilam Province | |
| 47 km South of Mehr, Ilam Province | |
| 54 km South West of Meymeh, Ilam Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 14 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 19 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 31 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | 2.9 km |
| Error in Longitude | 5 km |
| Error in Depth | 5.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 79071 | IIEES | SNGE | E | 84.1 | 0.56 | 2011-05-22 23:21:50 | 2011-05-23 03:04:00 | n |
| 79072 | IIEES | SNGE | N | 74.5 | 0.56 | 2011-05-22 23:21:50 | 2011-05-23 03:04:00 | n |
| 79073 | IIEES | KHMZ | E | 26 | 0.56 | 2011-05-22 23:22:07 | 2011-05-23 03:04:00 | n |
| 79074 | IIEES | ASAO | N | 26.2 | 0.8 | 2011-05-22 23:22:15 | 2011-05-23 03:04:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | SNGE | Z | Pn | E | 2011-05-22 23:21:15 | 0 | y | 246 | 20 | |
| IIEES | SNGE | E | Sg | E | 2011-05-22 23:21:47 | 0 | y | 246 | 20 | |
| IIEES | KHMZ | Z | Pn | E | 2011-05-22 23:21:27 | -0.1 | y | 339 | 75 | |
| IIEES | ASAO | Z | Pn | E | 2011-05-22 23:21:31 | 0.1 | y | 375 | 62 | |
| IIEES | ASAO | E | S | E | 2011-05-22 23:22:11 | 0 | y | 375 | 62 | |
| IIEES | GHVR | Z | Pn | E | 2011-05-22 23:21:44 | 0.1 | y | 476 | 69 |
